100-Foot - Low-Loss 400 PL-259 Coaxial Cable Assembly - LMX400PLPL100

  • Image 1
Usually ships within 24-72 hours

Product Description

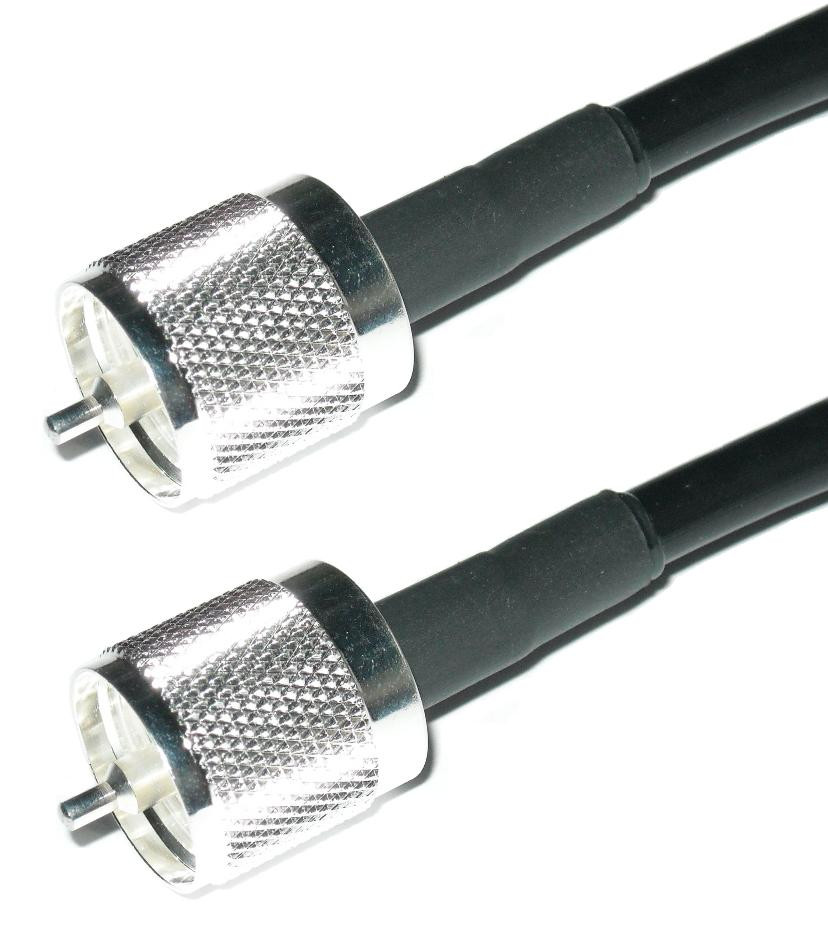

100-Foot - Low-Loss 400 Direct Bury Coaxial Cable Assembly - PL-259 Connectors

Our high quality PL-259 coaxial cable assemblies are high-voltage tested.  The low loss cable has a PE Polyethylene dielectric and a braided shield.  The Type II PVC jacket is UV resistant for long life in outdoor applications.  The PL-259 connectors on each end of the cable have a soldered center pin and a crimped shield.

  • Length: 100-Foot
  • Coax Cable: LMX-400 (LMR400)
  • Direct Bury: Yes
  • Overall Nominal Diameter: .405 Inch
  • Connector: Silver Plated Brass / Teflon®
  • Center Conductor: 10 AWG / Bare Copper (Stranded)
  • Insulation: PE Polyethylene
  • Outer Shield: Bare / Braided Copper - 95% Outer Shield Coverage
  • Outer Jacket: Low Density Polyethylene (Black)
  • Other Lengths Available - Click Here

Warranty Information

See warranty details above
