12-Foot - RG-213 - PL-259 Coaxial Cable Assembly - RG213PLPL012

  • Image 1
Price:
$36.99
SKU:
RG213PLPL012
Condition:
New
Availability:
Usually ships within 24-72 hours


Product Description

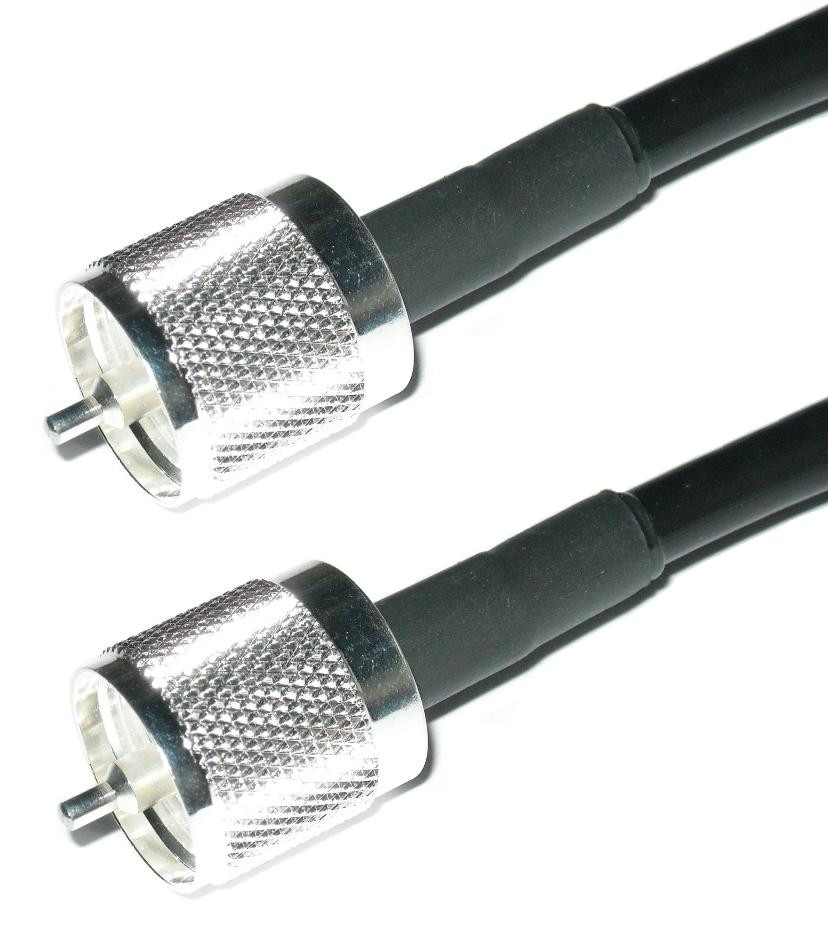

12-Foot - RG-213 - PL-259 to PL-259 Coaxial Cable Assembly

Our high quality PL-259 coaxial cable assemblies are high-voltage tested.  The low loss RG-213 has a PE Polyethylene dielectric and a braided shield.  The Type II PVC jacket is UV resistant for long life in outdoor applications.  The PL-259 connectors on each end of the cable have a soldered center pin and a crimped shield.

  • Length: 12-Foot
  • Coax Cable: RG-213
  • Overall Nominal Diameter: .405 Inch
  • Connector: Silver Plated Brass / Teflon®
  • Center Conductor: 13 AWG / Bare Copper (Stranded)
  • Insulation: PE Polyethylene
  • Outer Shield: Bare / Braided Copper - 96% Outer Shield Coverage
  • Outer Jacket: PVC Type II Non-Contaminating (Black)
  • Other Lengths Available - Click Here
