200W - Alpha-Delta ATT3G50U - Coaxial Surge Protector UHF SO-239

  • Image 1
Price:
$49.95
SKU:
ATT3G50U
Condition:
New
Availability:
Usually ships within 24-72 hours

Sorry but this item is currently unavailable.

Please check back at a later stage.



Product Description

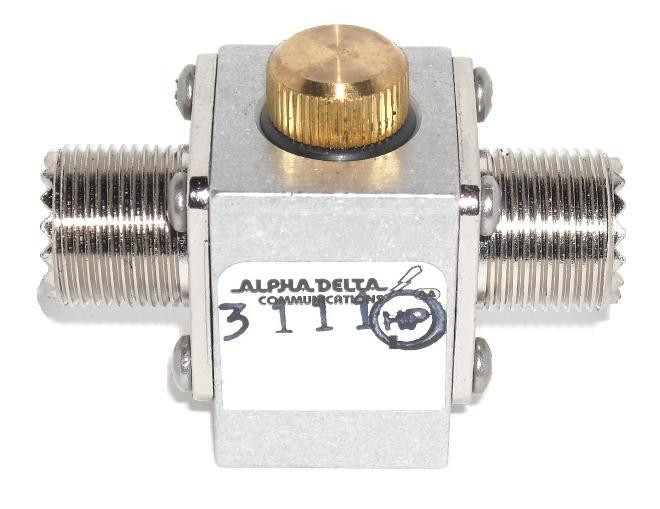

200W - Alpha-Delta ATT3G50U - Coaxial Surge Protector - UHF SO-239

Trans-Trap Surge Protectors are gas surge arresters designed to protect sensitive electronic equipment from damage due to excess voltage or currents generated by transient phenomena (lighting or static build up). HOW TO INSTALL: Use the threaded stud on the back for a single hooe mounting and grounding. Either connector may be used for input or output. Pre-existing cable must be cut and each end fitted with a male connector. Connect a cable to each end of the Transi-Trap and the installation is done. NOTE: To insure that the copleted installation is weatherproof it is imperative that the mating coaxial connectors be sealed using proper materials and procedures.

Excellent broadband performance from DC thru 500 MHz, compared to the narrowband DC blocked or stub designs. Innovative impedance compensated thru-line cavity design allows control voltages to pass thru the device, instead of the "wire around" requirement of DC blocked designs. This design allows "in-circuit" cable sweeps. Innovative fast acting gas tube replaceable ARC-PLUG™ module can be removed and replaced in the field in about one minute with no tools required, and without having to remove the protector from the circuit. The "O" ring sealed knurled knob does the trick! The ARC-PLUG™ module and connectors are "O" ring sealed for complete weatherproofing. Effective performance. Due to the carefully designed reactance compensated thru-line cavity and ARC-PLUG™ module placement, customer and government test approvals show this design is as good as, or better than, DC blocked designs.

It is not DC-blocked, so it will pass control voltages in applications requiring the coaxial cable to carry both RF and DC voltage - such as remote antenna switches which use the coaxial cable for both RF and DC switching.

Product Features:

  • 50-Ohm
  • 200-Watt
  • 500 MHz
  • SO-239 (UHF-Female) Connectors
  • Replacement 200-Watt ARC-PLUG Cartridges - Available Here

Specifications:

  • Frequency: 0 to 500 MHz
  • Power Rating:  200 watts
  • Insertion Loss:
  • VSWR:
  • Characteristic Impedance: 50 ohms
  • DC Blocking: None. Will pass DC for Power and Control purposes. Max. DC or peak AC is 150 V
  • Connectors: Female UHF (SO-239) Both Ends
  • Firing Point: 350 V. +/- 15% @
  • Breakdown Voltage: 20 to 30 V
  • Surge Current: 5000 A (8/20 μs pulse
  • ARC-PLUG Life: >600 Times @ 500A pulse (Field Replaceable)
  • Size: 1w x 1 ¼ h x .875 (2.4 oa) inches 25 w x 32 h x 22 (61 oa) mm
  • Mounting and Grounding: Single Hole ¼" -20 x 7/8" stud
