25-Foot - RG-8X - PL-259 Coaxial Cable Assembly - RG8XPLPL025

  • Image 1
Price:
$39.99
SKU:
RG8XPLPL025
Condition:
New
Availability:
Usually ships within 24-72 hours


Product Description

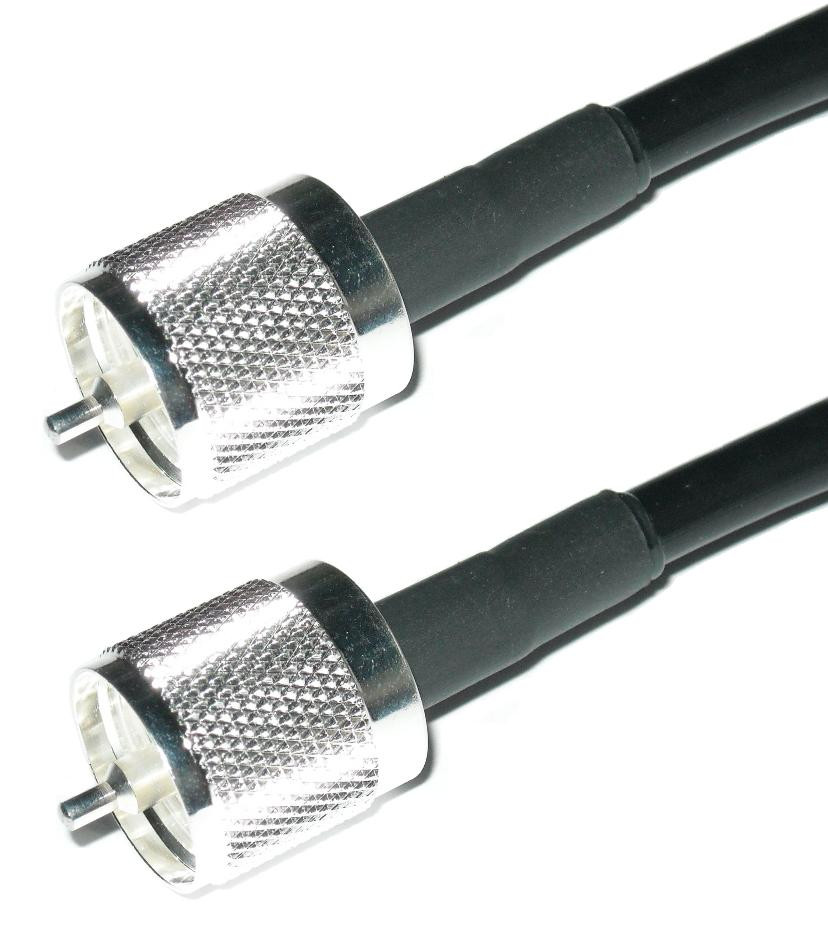

25-Foot - RG-8X - PL259 Coaxial Cable Assembly

Our high quality PL-259 coaxial cable assemblies are high-voltage tested.  The low loss RG-8X has a foam dielectric and a braided shield. It is excellent for moderate power HF stations or in mobile applications. RG-8X is slightly larger than RG-58 and it offers better handling characteristics, good shielding and low loss.  The Type II PVC jacket is UV resistant for long life in outdoor applications.  The PL-259 connectors on each end of the cable have a soldered center pin and a crimped shield.

  • Length: 25-Foot
  • Coax Cable: RG-8X
  • Overall Nominal Diameter: .242 Inch
  • Connector: Silver Plated Brass / Teflon®
  • Center Conductor: 16 AWG / Bare Copper (Stranded)
  • Insulation: .155 Inch - Gas Injected FPE- Foam Polyethylene
  • Outer Shield: Bare / Braided Copper - 96% Outer Shield Coverage
  • Outer Jacket: PVC Type II Non-Contaminating (Black)
  • Other Lengths Available - Click Here
