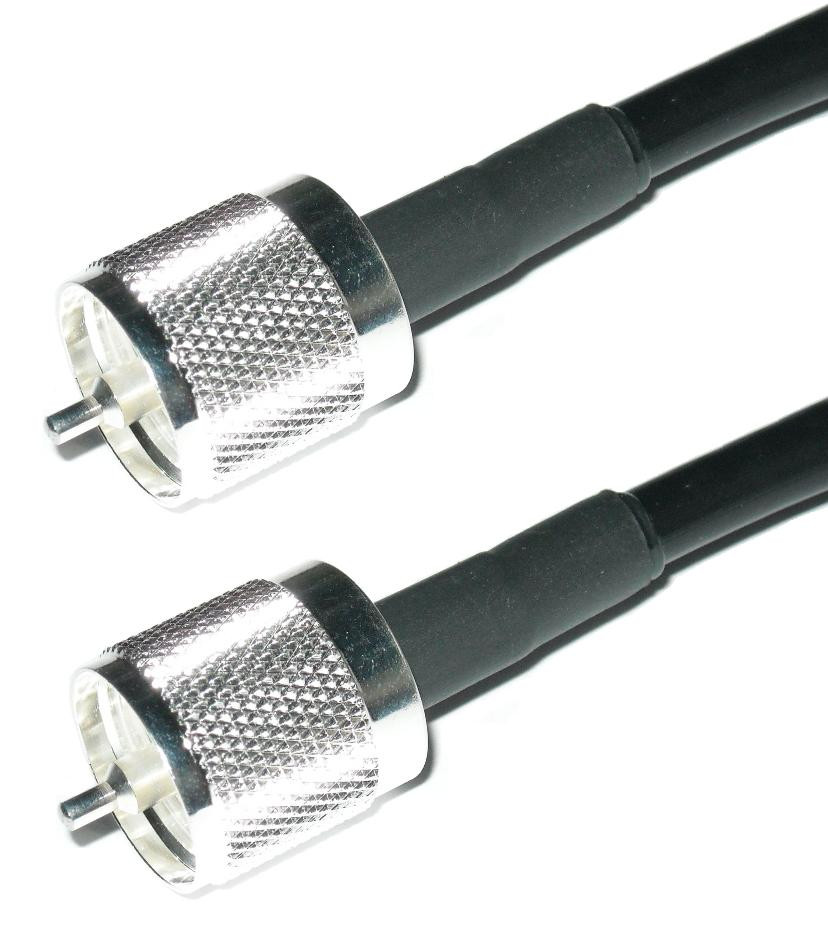

3-Foot - RG-8X - PL259 Coaxial Cable Assembly

Our high quality PL-259 coaxial cable assemblies are high-voltage tested.  The low loss RG-8X has a foam dielectric and a braided shield. It is excellent for moderate power HF stations or in mobile applications. RG-8X is slightly larger than RG-58 and it offers better handling characteristics, good shielding and low loss.  The Type II PVC jacket is UV resistant for long life in outdoor applications.  The PL-259 connectors on each end of the cable have a soldered center pin and a crimped shield.

• Length: 3-Foot
• Coax Cable: RG-8X
• Overall Nominal Diameter: .242 Inch
• Connector: Silver Plated Brass / Teflon®

• Center Conductor: 16 AWG / Bare Copper (Stranded)
• Insulation: .155 Inch - Gas Injected FPE- Foam Polyethylene
• Outer Shield: Bare / Braided Copper - 96% Outer Shield Coverage
• Outer Jacket: PVC Type II Non-Contaminating (Black)
• Other Lengths Available - Click Here
