Comet CA-712EFC | 460-470MHz Commercial Radio Base Repeater Antenna

  • Image 1
Usually ships within 24-72 hours
Expected ship date is 12th Sep 2014

Product Description

Comet CA-712EFC | 460-470MHz Commercial Radio Base Repeater Antenna

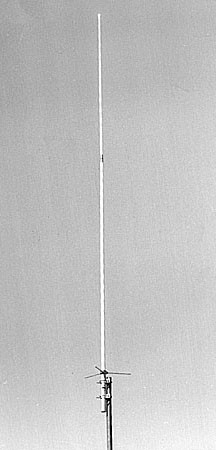

The Comet CA-712EF Amateur Radio UHF Base Station Antenna has an omnidirectional radiation pattern. Heavy duty fiberglass radome with 112+ MPH wind survival.  Two extruded aluminum mounting brackets, stainless steel U-bolts and hardware included.  Uniquely designed mounting pipe acts as a shroud to protect the coax to antenna connection from the weather.  No tuning or adjustments required.

  • Gain: 9 dBi
  • VSWR: Less than 1.5:1
  • Max Power: 200-Watts
  • Frequency Range: 460-470MHz
  • Length: 10 ft 5 inches
  • Weight:: 3 lbs
  • Max Wind Survival: 112 MPH
  • Wind Load: 66sq in (.46 sq ft)
  • Mast Required: 1.25-2.5 inches
  • Connector: Integral N-Female
  • Radome: Two piece white UV stabilized fiberglass.
  • Extruded aluminum/stainless steel mounting hardware included
  • Datasheet - Click Here
