Comet CA-F22GF - VHF 136-175 MHz Ham Radio Tinable Base Antenna

  • Image 1
Price:
$139.95
SKU:
CA-F22GF
Condition:
New
Availability:
Usually ships within 24-72 hours


Product Description

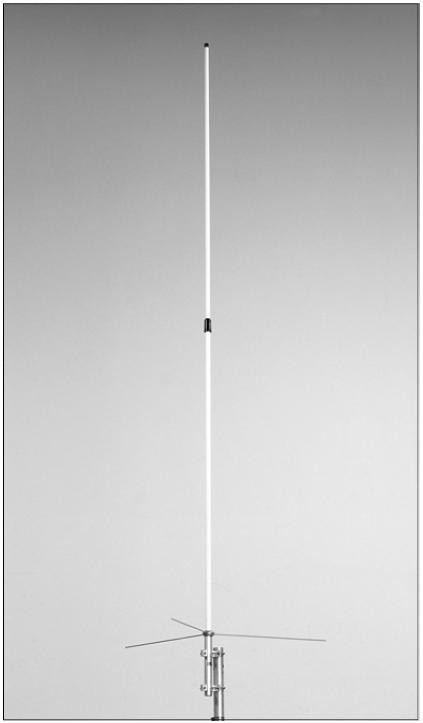

Comet CA-F22GF - VHF 136-175 MHz Ham Radio Tinable Base Antenna

The Comet CA-F22GF has an omnidirectional pattern for long range point-to-multipoint applications.  Heavy duty fiberglass radome, 110+ MPH wind survival.  Two extruded aluminum mounting brackets, stainless steel U-bolts and hardware.  Uniquely designed mounting pipe acts as a shroud to protect the coax to antenna connection from the weather.  Easily tuned, cutting chart included.

  • Frequency: 136-175MHz (tunable)
  • Bandwidth: 4 MHz (after tuning)
  • VSWR: Less than 1.5:1
  • Gain: 5.5dBi
  • Length: 8 ft 10 Inches
  • Weight: 2 Pounds 12 Ounces
  • Max Power: 150-Watts
  • Max Wind Survival: 110 MPH
  • Wind Load: 65.5sq in (.455sq ft)
  • Mast Required: 1.25-2.5 inches
  • Connector: Integral SO-239 or N-Female (CA-F22GFN)
  • Radome: Two sections, white UV stabilized fiberglass.
  • Extruded aluminum/stainless steel mounting hardware included
  • Datasheet - Click Here

Warranty Information

See warranty details above
