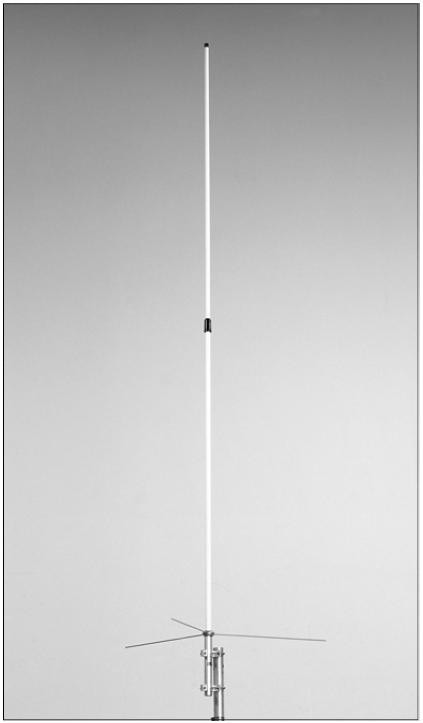

Comet CA-F22GFN - VHF 136-175 MHz Ham Radio Tinable Base Antenna

The Comet CA-F22GF has an omnidirectional pattern for long range point-to-multipoint applications.  Heavy duty fiberglass radome, 110+ MPH wind survival.  Two extruded aluminum mounting brackets, stainless steel U-bolts and hardware.  Uniquely designed mounting pipe acts as a shroud to protect the coax to antenna connection from the weather.  Easily tuned, cutting chart included.

• Frequency: 136-175MHz (tunable)
• Bandwidth: 4 MHz (after tuning)
• VSWR: Less than 1.5:1
• Gain: 5.5dBi
• Length: 8 ft 10 Inches
• Weight: 2 Pounds 12 Ounces
• Max Power: 150-Watts
• Max Wind Survival: 110 MPH
• Wind Load: 65.5sq in (.455sq ft)
• Mast Required: 1.25-2.5 inches
• Connector: Integral N-Female
• Also available with UHF-Female / SO-239 connector (CA-F22GF)
• Radome: Two sections, white UV stabilized fiberglass.
• Extruded aluminum/stainless steel mounting hardware included
• Datasheet - Click Here
