Product Description

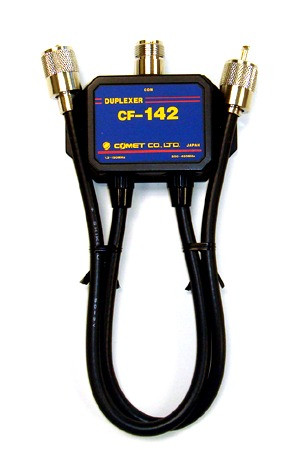

Comet Antenna CF-142 - 2M / 220MHz Duplexer with PL-259 Coax Cables
Used to separate off your HF, VHF, or UHF signals. Often referred to as combiners or splitters, these duplexers (diplexers) are essentially band-pass filters, simultaneously passing RF in both directions through the common connector, while the band-pass filters provide a high degree of isolation between ports. TX and RX from two radios at the same time into a dual-band antenna. Or, combine a dual-band radio with separate outputs into a dual-band antenna.
Typically installed on the transmitter / receiver end. Not intended for outdoor use unless customer supplies their own watertight enclosure.
Quality matters and American Radio Supply is a trusted supplier of genuine OEM components. We supply the U.S. Armed Forces and RF Communication Professionals worldwide.
- Isolation: 40dB
- Frequency: 1.3-150 MHz / Insertion Loss: 0.2 dB / Power: 600W PEP
- Frequency: 200-480 MHz / Insertion Loss: 0.3 dB / Power: 400W PEP
- Connectors: SO-239 (Common) / PL-259 (Low-Pass / High-pass)
- Typical Wiring Instructions
