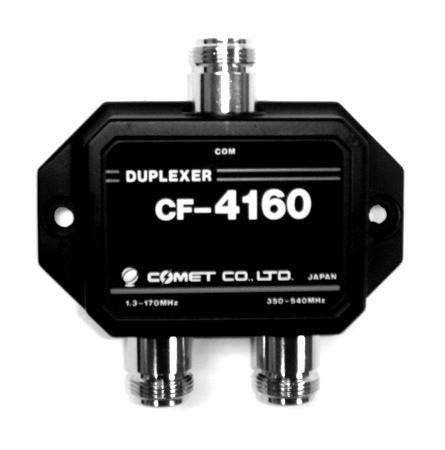

Comet CF-4160J - 1.3-170 / 350-540 MHz - HF / VHF / UHF Duplexer
Although called a duplexer by the mfg. this device is technically a diplexer which uses a combination of low, high, and band pass filters. As a passive device it can be used to connect two radios to one antenna or two antenna to one radio.
- Isolation: 60 dB
- Frequency: 1.3-170 MHz / Insertion Loss: 0.1 dB / Power: 800W PEP
- Frequency: 350-540 MHz / Insertion Loss: 0.2 dB / Power: 500W PEP
- Coaxial Connectors: SO-239 (Common) / SO-239 (Low-Pass / High-Pass)
- Instruction Sheet
