Comet H-422 - Quad-Band 40 20 15 10 Meter Rotatable Dipole Antenna

  • Image 1
Usually ships within 24-72 hours

Product Description

Comet H-422 - Quad-Band 40 / 20 / 15 / 10 Meter Rotatable Dipole Antenna

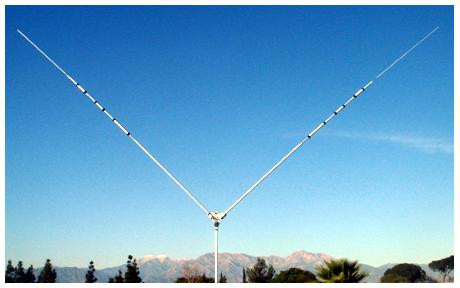

The H-422 is a broad-band, compact, rotatable dipole designed to offer excellent performance even when mounted at only 10-15ft above ground in a V shape.  During assembly the user chooses any of the three pre-drilled holes to tune the 20/15/10M SWR dips to the low - mid - or upper band ranges simultaneously.  40M TX bandwidth tunes independently of the other three bands.  Heavy duty hardware and 2.5kW balun are included.

  • Frequency Range:  7, 14, 21, and 28 MHz
  • VSWR:  1.5:1 or less after tuning
  • Impedance:  50 Ohm
  • Length:  "V" Shape  24-Foot 5-Iinches / Horizontal: 33-Foot 10-Inches
  • Weight: 11 lbs 14 ozs
  • Max Power:  1000W SSB / 500W FM
  • Max Wind Survival:  67MPH
  • Wind Load:  3.01 sq feet
  • Connector:  SO-239
  • Construction:  Aluminum tubing, stainless steel hardware
  • 2.5kW Balun included
  • Mfg. Datasheet - Click Here
