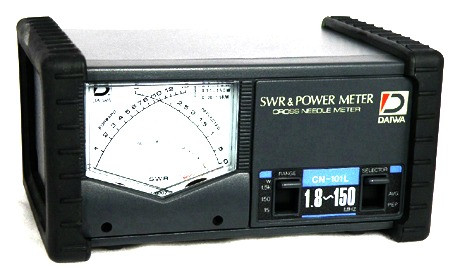

Daiwa CN-101 - Economy Series HF/VHF SWR Power Meter - Lighted

As out best selling SWR meter the CN-101 is a high quality instrument with unique features which make tedious measurements of SWR and Power during antenna tests, matching and tuning of transmitters a very easy task. SWR and Power indicators are installed in one meter unit. One scale will indicate Forward Power, another scale Reflected Power. SWR is indicated at the crossing point of the two needles. This unique feature makes it possible to read Forward Power, Reflected Power and SWR all at the same time.

Specifications:

• Cross Needle Meter Movement
• Frequency: 1.8 to 150 MHz
• Power Range Forward: 15W/150W/1.5 kW
• Power Rating:1.5 kW (1.8-60 MHz) / 1 kW (144 MHz)
• Accuracy: +/- 10% (@ Full Scale)
• SWR Detection Sensitivity: 4 W min
• Input / Output Impedence: 50-Ohm
• Input / Output Connectors: SO-239 (UHF-Female)

• Dimensions: 5 Inches x 3 Inches x 4 Inches

• Weight: 1 Pound 8 Ounces
