Daiwa CN-801HP - Professional Average and True PEP Reading SWR Meter

  • Image 1
Price:
$159.99
SKU:
CN-801HP
Condition:
New
Availability:
Usually ships within 24-72 hours


Product Description

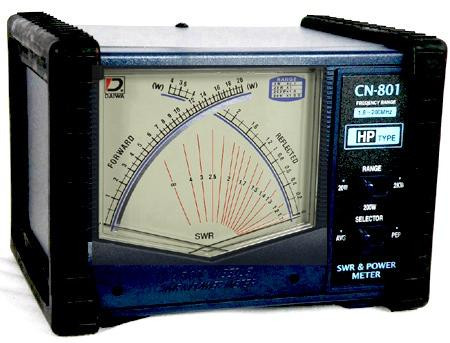

DAIWA CN-801HP - Professional Average and True PEP Reading SWR Meter

The CN-801 HP uses a large cross needle meter with pleasing pale blue meter lamps, making it stand out in any ham shack. It has a large metal case and is ruggedly built. Removable rubber side bumpers are useful to prevent damage in the field. It's frequency range of 1.8 to 200 MHz is the widest in this group, with forward power scales of 20, 200 and 2000 watts, selected by the front panel range switch. This active wattmeter must be connected to a DC supply for PEP measurements but will read average power and SWR with the power disconnected. It does not measure reflected power or display SWR in the PEP mode. The large 3.75 × 3.25 inch meter face is easy to read and provides good resolution with scale divisions between 0.5 watt up to 20 watts (multiply by 10 or 100 for higher power ranges). A rear panel receptacle accepts 13.8 VDC (power cord is included), and a meter lamp switch is located on the rear panel.

Specifications:

  • Frequency: 1.8-200 MHz
  • Power Range Forward: 20/200/2kW
  • Accuracy: +/- 10% (@ Full scale)
  • SWR Detection Sensitivity: 5W (Min)
  • Input / Output Impedence: 50-Ohm
  • Input / Output Connectors: SO-239
  • Dimensions & Weight: 6.25" x 4.3” x 4.8”
  • Lighted
  • Instruction Manual


Warranty Information

See warranty details above
