Diamond Antenna SP3000P | Lightning Arrester Surge Discharge Protector

  • Image 1
Price:
$39.95
SKU:
SP3000P
Condition:
New
Availability:
Usually ships within 24-72 hours


Product Description

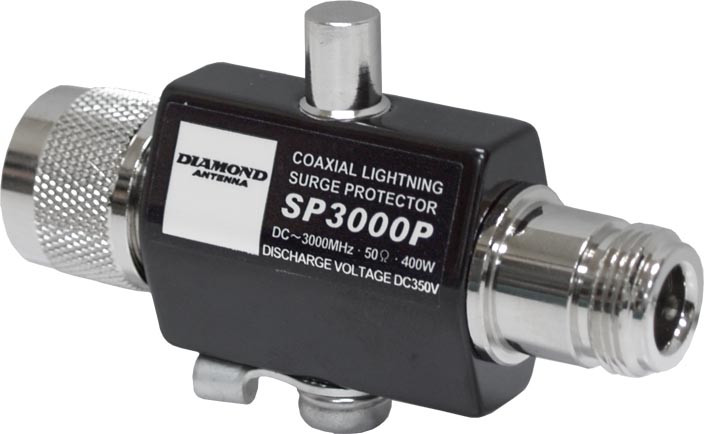

Diamond Antenna SP3000P | Lightning Protector

Aother quality product from Diamond Antenna

Specifications:

  • Frequency: DC to 3000 MHz
  • SWR: Less than 1.2:1
  • Insertion Loss: Less than 0.3 dB
  • Max Power Rating: 400-Watts PEP
  • Connectors: Type N-Female | N-Male
  • Impulse Wave Discharge Voltage: 1000V
  • Impulse Wave Discharge Capacity: 6000A
  • Impulse Wave Retention Discharge Capacity: DC350v ± 20%
  • Insulating Resistance DC-100V | Over 10,000 Meg Ohms
  • Weight: ~ 0.25 lbs. (110g)
  • Dimensions: 3.1 x 1.6 x 0.8 Inches (Approx.)

Warranty Information

See warranty details above
