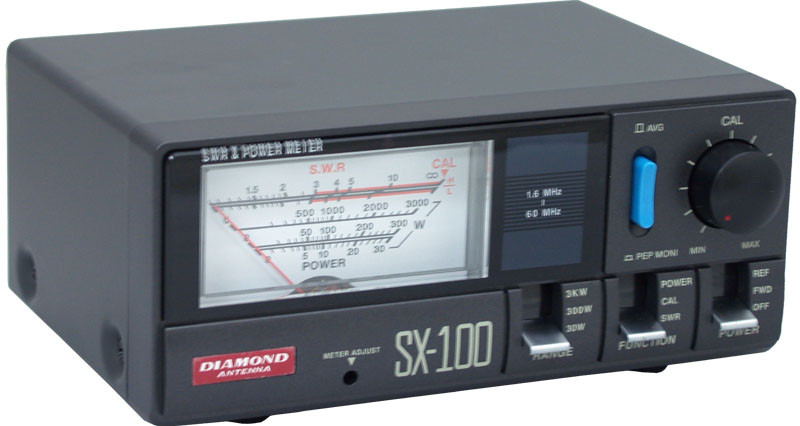

Diamond SX100 | SWR Power Meter

The SX100 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations.

Special Features:

• Illuminated meter
• Switchable r.m.s. or peak power
• Measures forward, reflected & VSWR power
• Dimensions: 6" W x 2" H x 4" D
• Weight: 2 lbs.

Specifications:

• Frequency: 1.6 to 60 MHz
• Power Ratings: 30 | 300 | 3000 Watts *
• Connectors: UHF-Female (SO-239)
• Min. Power SWR Test: 20-Watts
• Mfg. Instruction Manual - Click Here

Notes: * 1200W Continuous AM/CW
