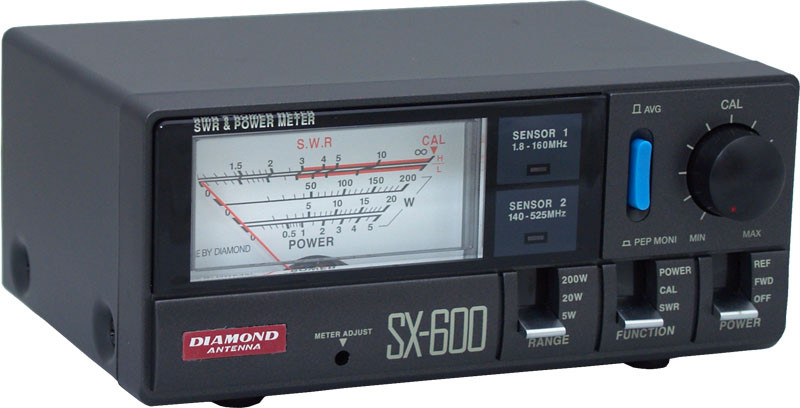

Diamond SX600 | SWR Power Meter

The SX600 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations. Two directional couplers with switch and LED indicators for in-line connection of two transceivers.

Special Features:

• Illuminated meter
• Switchable r.m.s. or peak power
• Measures forward, reflected & VSWR power
• Dimensions: 6" W x 2" H x 4" D
• Weight: 2 lbs.

Specifications:

• Frequency: 1.8 to 160 MHz | 140 to 525 MHz
• Power Ratings: 5 | 20 | 200 Watts
• Connectors: UHF-Female (SO-239)
• Min. Power SWR Test: 4-Watts
• Mfg. Instruction Manual - Click Here

Notes: 12VDC @ 50mA is required for illuminated display.
