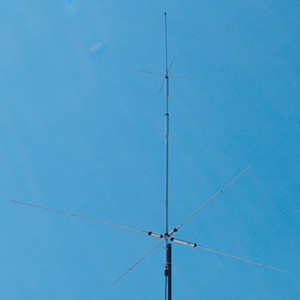

Diamond CP725H Quad Band Trap Vertical Ham Radio Base Station Antenna

Diamond’s CP725H is a four band (6M, 10M, 15M and 40M) trap vertical antenna with trap radials. Its light weight, 6.6 pounds, makes it very manageable during the installation process and will allow for a simple mast solution. It is 11.8 feet tall and the radials are 71” long and can be mounted 360 degrees around the antenna or concentrated on one side if you need to mount it close to a structure.
Because of its light weight and the ability to concentrate radials on one side, the CP725H could be used in an antenna restricted situation where the mast was lowered on its side during daylight and raised while operating during the evening.

Specifications:

• Freq. Range: 40M (7MHz), 15M (21MHz), 10M (28-29MHz), 6M (50MHz)
• Impedance: 50-Ohms
• VSWR: Less than 1.5
• Max Power: 200W SSB (7MHz); 400W SSB (21MHz); 500W SSB (28/29/50MHz)
• Max RF power rating of continuous wave
• (FM/CW) is about 1/3 of it in SSB mode
• Max Wind: 100 MPH
• Height: 142-Inch
• Radial Element Length: 71-Inch
• Weight: 6.6 lbs.
• Mast Diameter: 1 1/5” - 2 1/3”
• Design: 4 band trap vertical antenna with trap radials
• Mfg. Instructions - Click here
