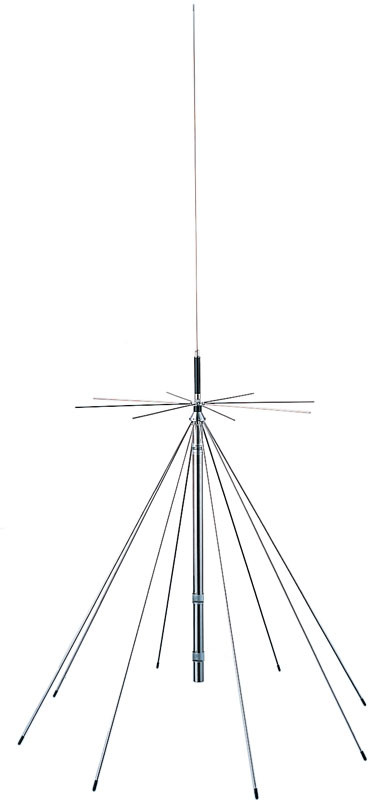

Diamond D3000N - Super Discone Ham Radio Base Station Antenna

Another quality product from Diamond Antenna.

Special Features:

• Ultra-wideband design 25 to 3000 MHz receive, 50-1200 MHz transmit (6m tunable for transmit)
• Compact and lightweight design enables antenna to be installed on balcony railing at an apartment or condominium
• Ideal for 144, 220, 440 MHz, 33cm and 23cm amateur bands
• Excellent "shop" antenna for testing various transmitters on a single coax
• Can be made further compact and lightweight by removing the top loading coil if 25-50 MHz reception is not required
• Mfg. Instructions - Click here


Specifications:

• Bands: 25-3000 MHz
• Gain: 2 dBi (nominal)
• Max Power Rating: 200-Watts (2M); 20-Watts FM (6M); 50-Watts PEP (6M)
• Height: 67-Inches
• Connector: Type-N
• Element Phasing: Wideband Discone
