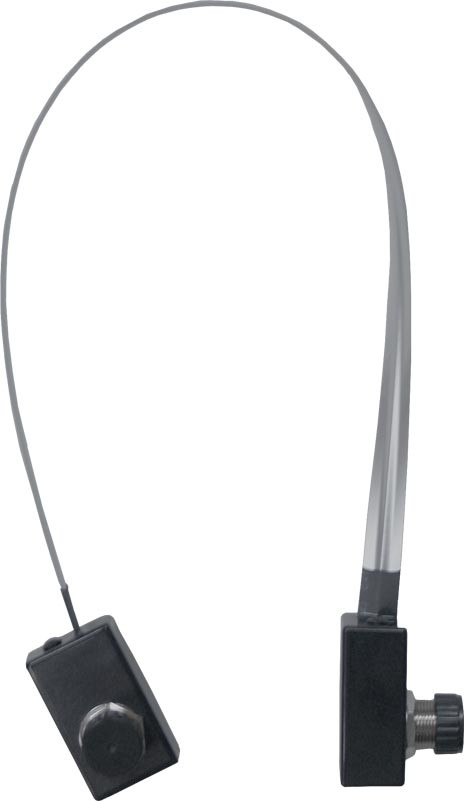

Diamond MGC50 - Through Window | Door Cable Set

Specifications:

• Frequency: DC to 1500MHz
• Max Power Rating: HF to 50MHz: 150w (SSB), 50w(FM/CW), 144MHz: 40w (FM), 440MHz: 30w (FM), 1200 MHz: 10w (FM)
• Length: 19.7-Inches (between connectors)
• Connector: UHF-Female to UHF-Female
• VSWR: HF up to 500MHz: Less than 1.2, 500 to 1000MHz : Less than 1.3, Up to 1000MHz: Less than 2.0, 1200MHz: Less than 1.7.
• Impedance: 50-Ohms
• Insertion Loss: 144MHz: Less than 0.3dB, 440MHz: Less than 0.6dB, 1200MHz: Less than 1.6dB
