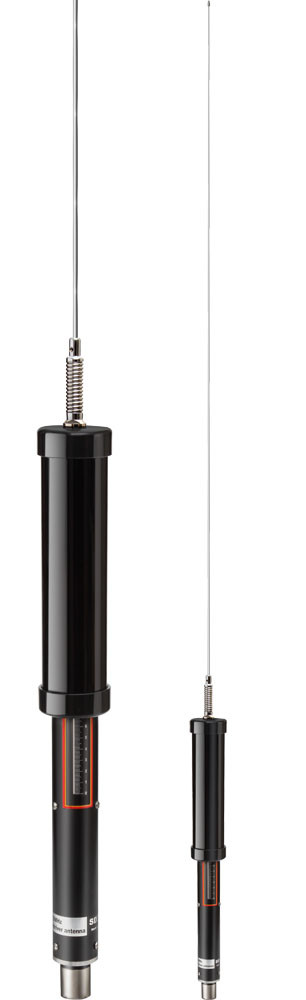

Diamond SD330 - HF Mobile Screwdriver Antenna

The Diamond SD330 is a mobile antenna that can be operated on wide bands adjusting the coil section by the remote controller in the car. It takes approximately 50 seconds to move the coil section from 3.5 to 30 MHz and it takes approximately 20 seconds to 7 to 30 MHz. The SD330 can be operated with the HF transceiver with a max. power rating of 200W (SSB). It can be operated on wide bands using the built-in antenna tuner of the transceiver.

Specifications:

• Frequency: 3.5 to 30 MHz
• Impedance: 50-Ohms
• VSWR: < 2.0 (at resonated frequency)
• Max. Power: 200-Watts (SSB)
• Length: ~ 1.85m max. (at 3.5 MHz)
• Connector: UHF-Male (PL-259)
• Type: 1/4-Wave center loading
• Power Supply: 12 VDC / 100mA
• Mfg. Instructions - Click Here

Note: The SD330 uses the car body for its ground. The bracket and the car body need to be well grounded. Comes with OPE750 for tuning 7-50MHz.
