Firestik 2M-CKB - 2-Meter 5/8-Wave Monoband Ham Radio Base Antenna

  • Image 1
Price:
$38.95
SKU:
2MCKB
Condition:
New
Availability:
Usually ships within 24-72 hours

Sorry but this item is currently unavailable.

Please check back at a later stage.



Product Description

Firestik 2MCKB - 2-Meter 5/8-Wave Ham Radio Base Station Antenna

For many years amateur radio operators have raved about the Firestik 2-meter mobile antennas (Model 2M-4) because of its outstanding performance. One user was so elated with the performance of the mobile whip that they pieced together a base antenna that used the mobile whip as its radiating element. The end result of their "experiment" was discovering that the base antenna performed even better than the mobile antenna. Their enthusiasm was so great that they asked us to consider making a commercial version for them to sell. And so, opportunity knocked, and we answered the door.

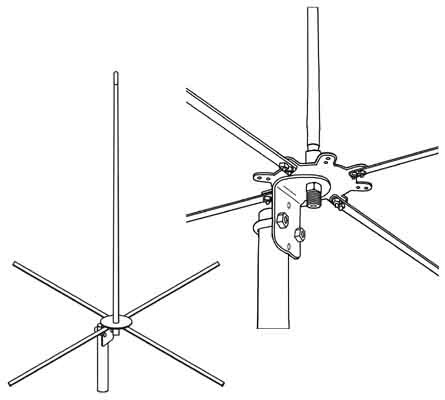

A combination angle bracket, u-bolt, hub plate and antenna stud is central to the assembly of the base antenna. This assembly will mount to the top of any mast up to 1.5" (38mm) in diameter. The kit comes with four (4) structural aluminum (6061) radials that measure 1/8"x1/2"x20" (3mm x 13mm x 51cm). Each is pre-drilled to mount to the hub plate. The antenna stud utilizes a standard SO-239 base for easy hook-up with any UHF (PL-259) terminated coaxial cable. For static and electrical discharge concerns, see our in-line AR-10 arrestor connector.

The hub plate is a unique item that we designed to bring this base antenna together as a commercial kit. For the hobbyist, it will offer numerous opportunities to be creative.

The top to bottom height of the entire assembly is a mere 49" (124cm) and the diameter of the radial circle is 44" (112cm). All mounting and assembly hardware is included.

Specifications:

  • Band: 2-Meters
  • Frequency: 144-148 MHz
  • Element: 5/8-Wave
  • Gain dBi:
  • Max Power Rating: 400-Watts (800W PEP)
  • Four (4) ground radials to lower the angle of radiation
  • Height: 49-Inches
  • Radiall Length: 20-Inches
  • Connector: 3/8-24 Thread



Warranty Information

See warranty details above
