Product Description

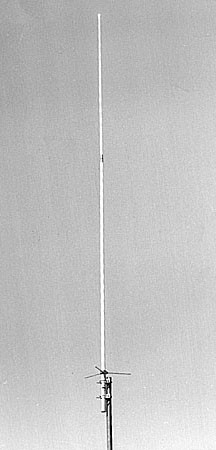

Comet CA-712EF - 440-450 MHz (70cm) Ham Radio Base Repeater Antenna
The Comet CA-712EF Amateur Radio UHF Base Station Antenna has an omnidirectional radiation pattern. Heavy duty fiberglass radome with 112+ MPH wind survival. Two extruded aluminum mounting brackets, stainless steel U-bolts and hardware included. Uniquely designed mounting pipe acts as a shroud to protect the coax to antenna connection from the weather. No tuning or adjustments required.
- Gain: 9 dBi
- VSWR: Less than 1.5:1
- Max Power: 200-Watts
- Frequency Range: 440-450MHz
- Length: 10 ft 5 inches
- Weight:: 3 lbs
- Max Wind Survival: 112 MPH
- Wind Load: 66sq in (.46 sq ft)
- Mast Required: 1.25-2.5 inches
- Connector: Integral N-Female
- Radome: Two piece white UV stabilized fiberglass.
- Extruded aluminum/stainless steel mounting hardware included
- Datasheet - Click Here
