Product Description

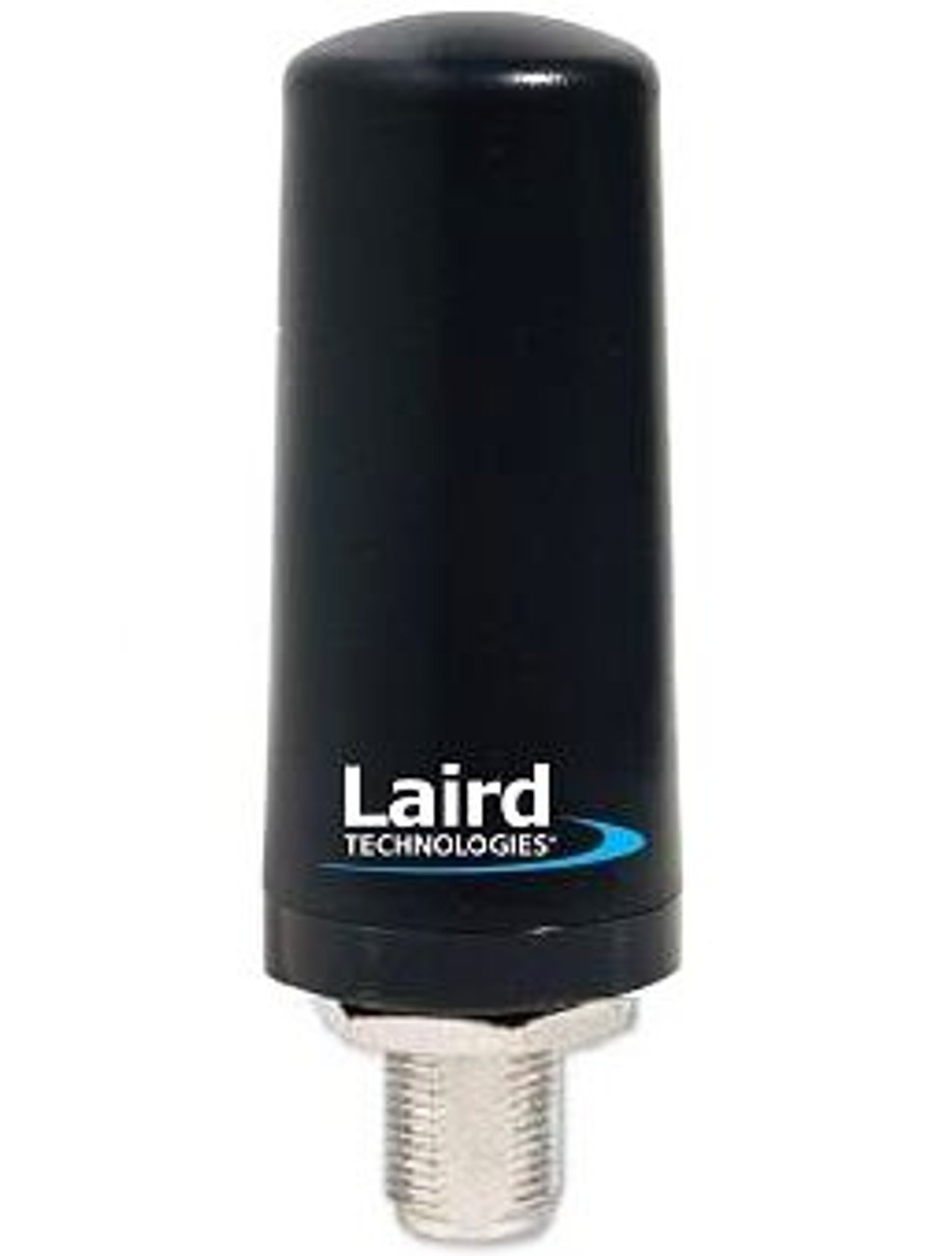

Laird 4G/3G Multiband Phantom® Antenna - NMO
Laird Technologies’ unique Phantom® omni-directional antenna operates simultaneously in the 698-960 MHz and 1700- 2700 MHz bands, making it ideal for 4G/3G applications. The mechanically robust design is suitable for both indoor and outdoor applications with wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications. The antenna is ideal for both ceiling and surface mount applications.
This unit is a Black 'Phantom' style Omni-directional antenna with NMO-mobile mount operating at 698-2700 MHz range. This antenna offers a powerful punch with up to 3 dBi of gain. Please note that this model DOES NOT require mounting on metallic ground plane. The Phantom series offers ultra-rugged ABS construction which is virtually indestructible, and has a proven track record for holding up in the field for many years in any conditions.
Applications: Fire Detection, 700 MHz First Responder Network (FirstNet) Band Ready, Public Safety, Cellular, M2M, Utilities, Data transport, Transportation, IBW.
Special Features
- 4G/3G
- Power: 100-Watts
- Type N-Female Connector
- Gain: 0dBi, 1.7dBi, 2.9dBi
- No Ground Plane Needed
- Multiband: 698-960 MHz & 1700-2700 MHz
- Height: 3.300" (83.82mm)
- Mfg. Information - TRA6927M3
