Comet 3D4MB - Standard Mobile Antenna Lip Mount Cable Assembly

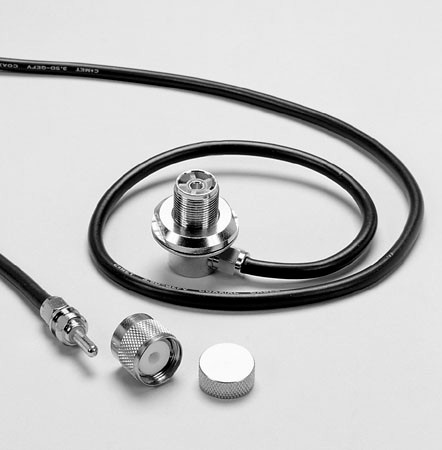

Comet's 3D4M antenna mount can be used as a lip mount or used alone as permanent hole mount. An o-ring is included to seal moisture from migrating under the threaded nut holding the connector in place, but additional water-proofing using silicone is recommended around the connector threads. The PL-259 connector has a reverse threaded barrel. Turn the outer barrel clock-wise and it will thread off the connector body. The coax can then be routed through small holes or pushed through tight spaces without completely removing the connector. After routing the coax into place, screw the barrel back onto the PL-259 connector. To shorten the over-all length of the coax remove the barrel as above and de-solder the center pin of the PL-259. The connector body then screws apart and the cable can be cut to the desired length. Re-assemble the connector.
The standard coax cable assemblies use one size low loss coax approximately 1/4’ diameter. 24k gold plated SO-239 and PL-259 connectors, Teflon insulation. Use these assemblies if you want to drill a hole in your vehicle or if you do not need the small diameter coax to get thru a weather seal. Detachable connector for easy installation, weather cap included.
- Length: ~ 13-Foot
- Cable Connector: PL-259
- Antenna Connector: SO-239
- Datasheet - Click Here
- Also called 3D4M
