Product Description

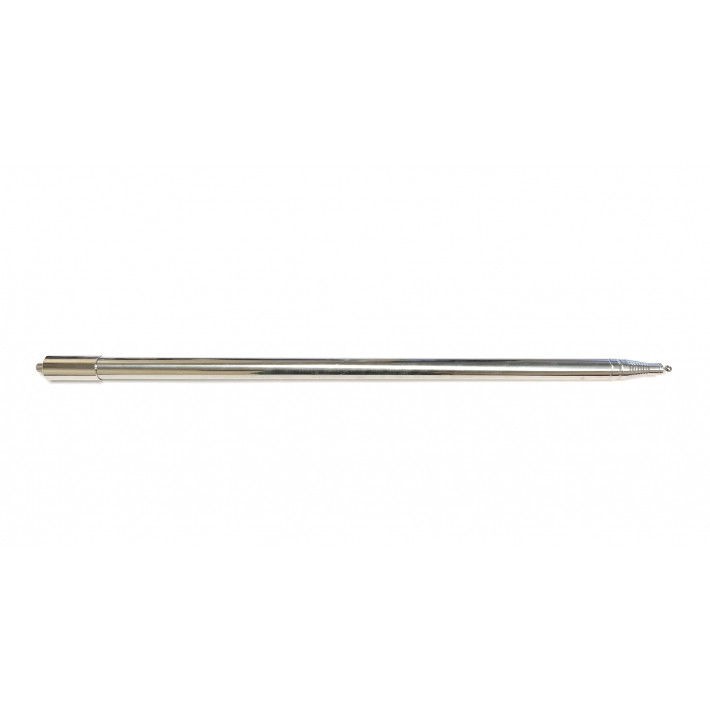

17-Foot Stainless Steel Telescopic Antenna
Designed for full 1/4 wave operation on 20 meters without loading coils. This telescoping antenna whip is ideally suited for operating on 20 meters (14.000 to 14.350 MHz). Additional operating bands can be achieved by adding loading coils.
Can be used vertically with any suitable 3/8"-24T antenna base. Or, used two in an opposing configuration as a dipole.
- Ten (10) Sections
- 17-Feet fully extended
- 24-Inches when collapsed
- Stainless Steel Construction
- Standard 3/8"- 24T Threads
- 7/8" Diameter Bottom Section of Tube
- 1/2" Diameter Top Section of Tube
- 5/16" Diameter Round Top Ball
- 1-Inch Diameter by 2-Inch Long Stainless Steel Base for Strength
- Can be used with a base mount of users choice for 1/4 Wave Vertical Applications or, used two in a Dipole configuration.
- Loading coils can be used for 40 / 60 / 80 / 160 meters. Customer supplied.
- Weight: 1.45 lbs.
