Product Description

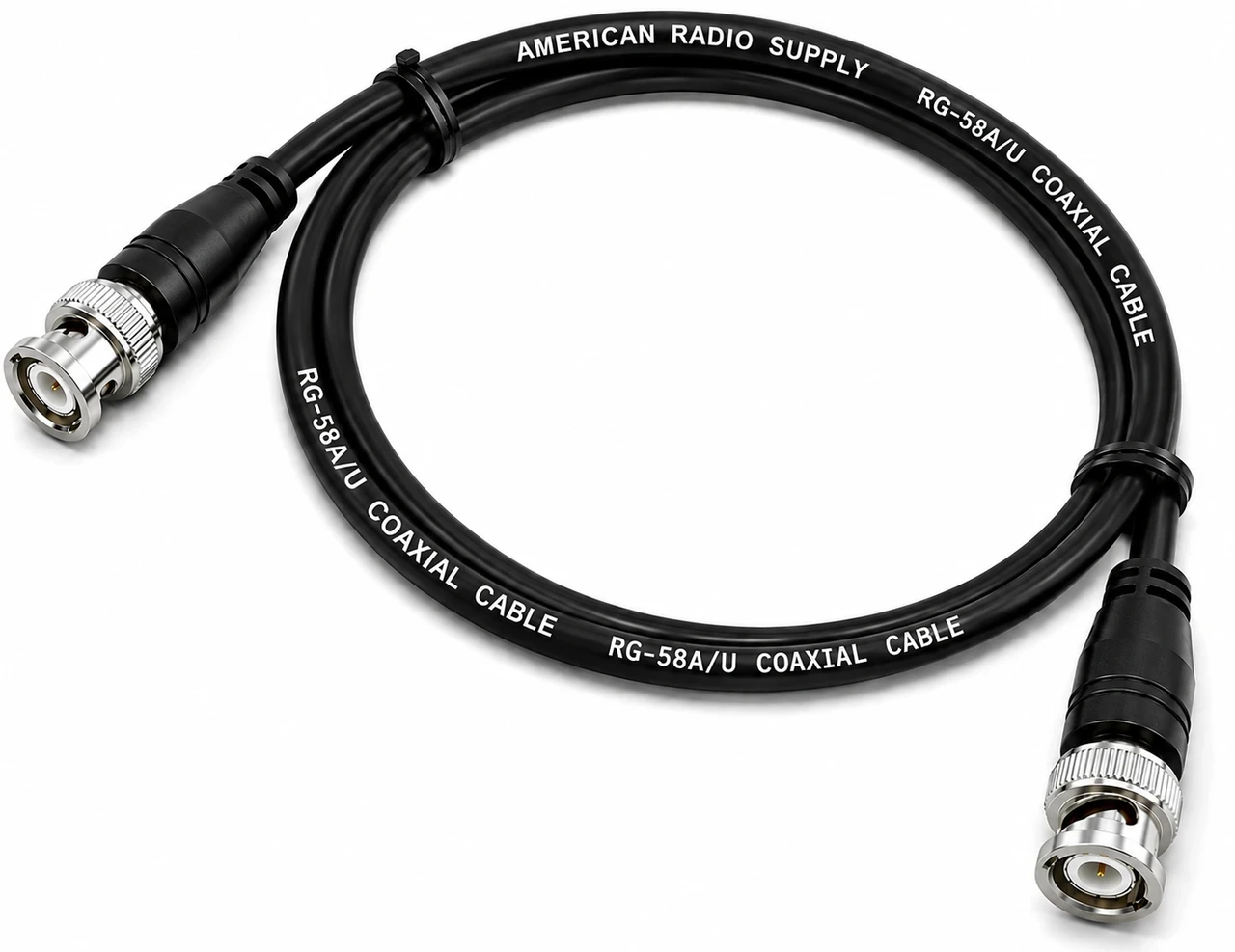

BNC Male to BNC Male RG-58A Coaxial Cable
The BNC Male to BNC Male RG-58A Coaxial Cable is a flexible, 50-ohm RF cable designed for reliable connections between radios, antennas, test equipment, video devices, and other electronic systems. It features BNC male connectors on both ends, providing a secure bayonet-style connection that installs quickly with a simple twist-lock mechanism.
Built with flexible RG-58A coaxial cable, this assembly provides dependable signal transmission while helping reduce interference through its shielded construction. The 50-ohm impedance makes it well suited for RF and communications applications.
Key Features
- Length: 75-Feet
- BNC Male to BNC Male configuration
- Flexible RG-58A/U coaxial cable
- 50-ohm impedance for RF applications
- Approximately 0.195 in. (5 mm) cable diameter

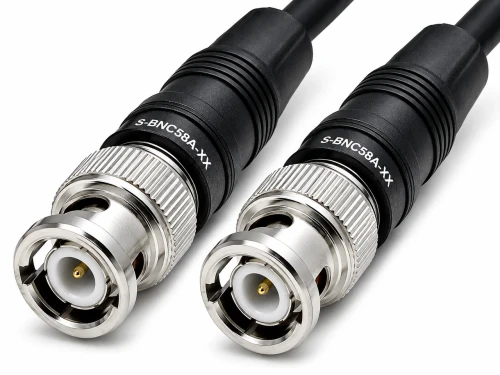

- Bayonet-style BNC connectors for quick, secure connections
- Shielded construction helps minimize electromagnetic interference
- Durable cable jacket for everyday handling and installation
- Suitable for RF, radio, laboratory, and electronic equipment
Specifications
- Coaxial Cable: RG-58/U Stranded
- Impedance: 50 Ohm
- Connector 1: BNC Male Plug
- Connector 2: BNC Male Plug
- Cable Diameter: Approx. 0.195 in. (5 mm)
- Frequency Range: DC to 1 GHz (Typical)
- Shielding: Braided copper/metal shield
Common Applications
- Radio Communications: Connect radios, transceivers, and RF equipment
- Antenna Systems: Connect BNC-equipped radios and antenna components
- Test Benches: Connect signal generators, oscilloscopes, frequency counters, and other test equipment
- Laboratory Equipment: General-purpose RF and electronic signal connections
- Data & Instrumentation Networks: Interconnect compatible 50-ohm equipment
- Video Equipment: Suitable for compatible BNC-based video and electronic systems
