Product Description

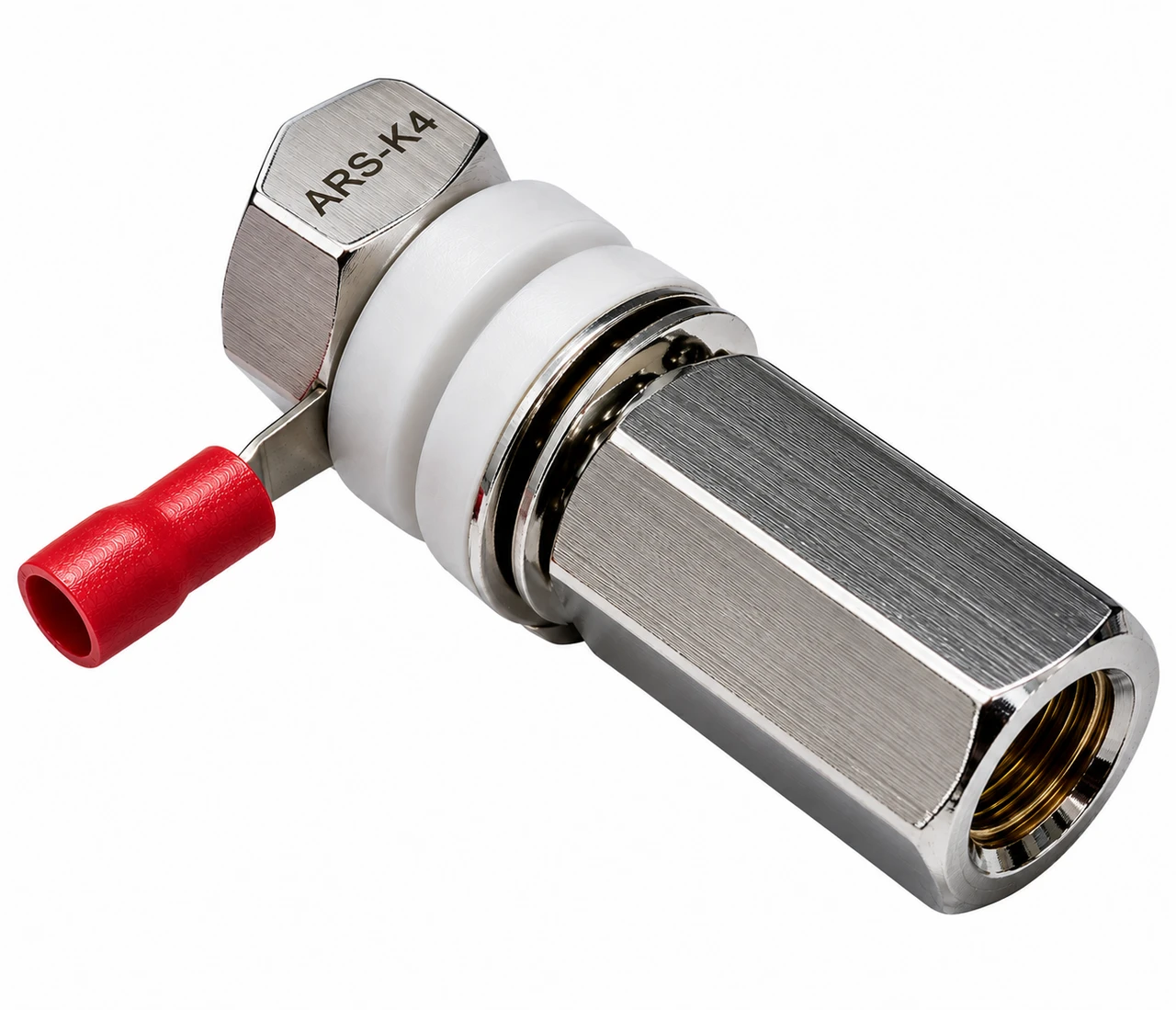

ARS K4 | 3/8-24 Threaded Antenna Stud Mount with Bolt Lug
The importance of the stud mount cannot be over stressed! The antenna stud mount acts as a bridge between the antenna and the coaxial feedline. Accordingly, it needs to allow for efficient transfer of your transmitted and received signals to and from the transceiver. If the stud mount doesn't perform that task efficiently you end up with unneeded loss. Also, the stud mount must be strong enough to withstand all of the stress placed upon it from an antenna that is subject to wind load and vibration.
Stud mounts have become the standard of our industry. This wasn't by accident. It was because users learned to appreciate their outstanding design and material quality. Instead of inexpensive aluminum, the K4 uses chrome plated machine brass. Instead of 9/16" (14mm) hex-stock, the K4 uses 5/8" (16mm) stock. Instead of ABS or inferior plastic insulators, the K4 uses nylon. Instead of cadmium plated hardware, the K4 uses stainless steel. Furthermore, the K4 heavy-duty 3/8" center shanks can mean the difference between trouble free use and lost antennas. Some businesses in the industry have copied the look of the the K4 antenna studs but those "low-cost targeted" parts have a tendency of coming apart. It is buyer beware! You might save a dollar when you buy them and you might loose a $25+ antenna as your reward.

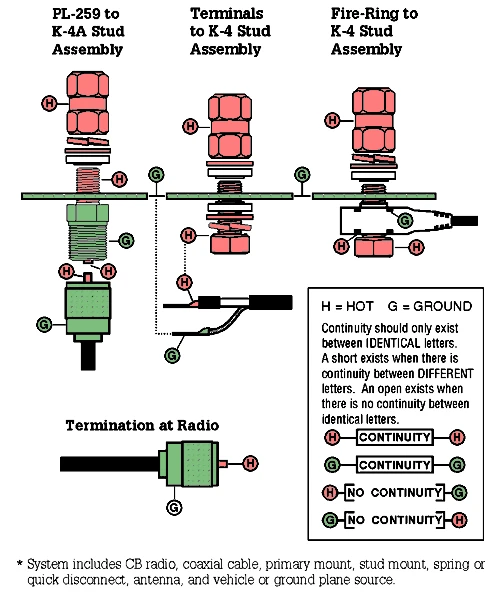

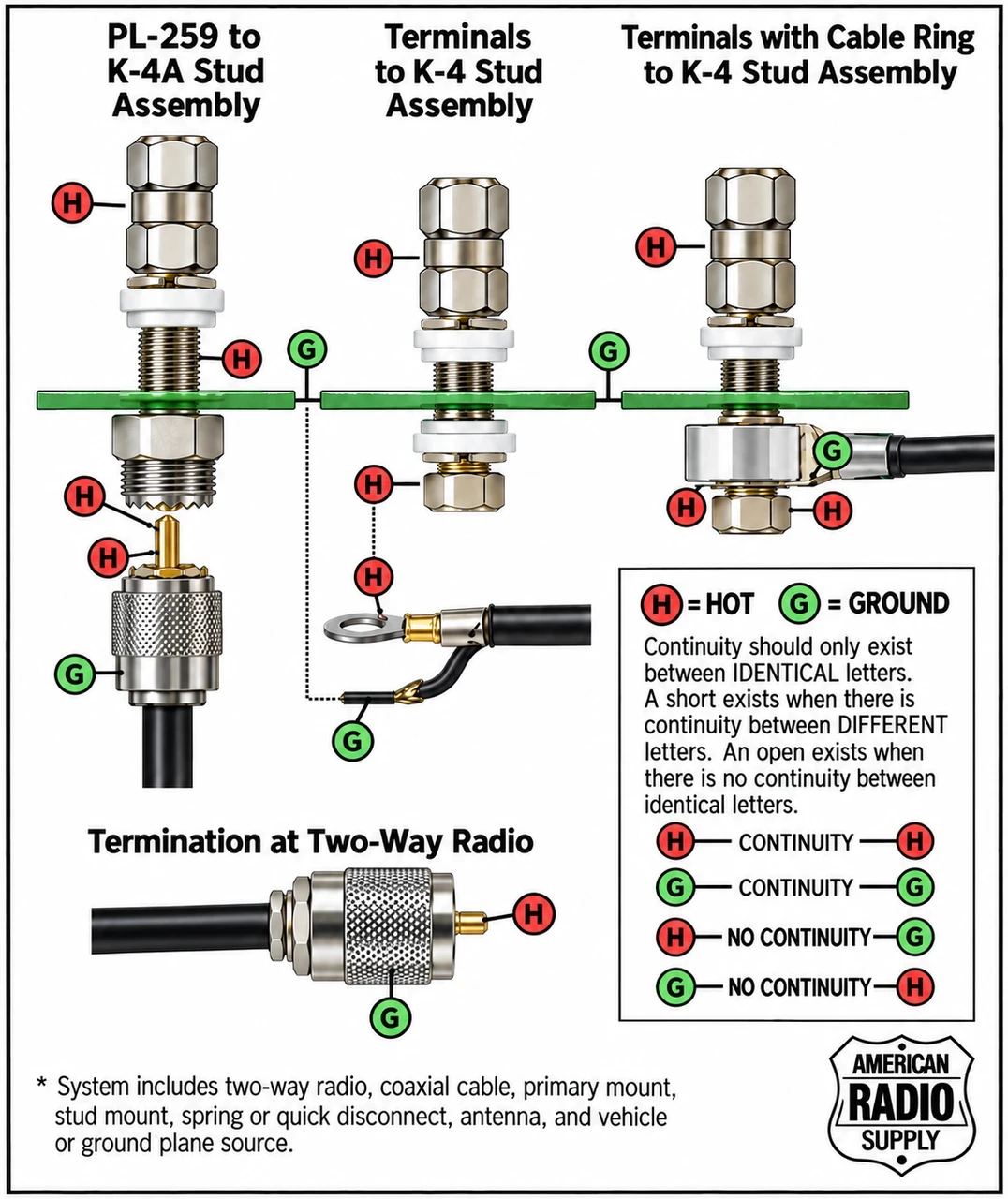

The K-4 stud utilizes ring terminal connectors (supplied) making it compatible with non-PL-259 terminated coaxial cables. In a typical installation, antennas with 0.600" (15mm) of exposed threads can be used without the fear of bottoming out before proper tightening is accomplished. The K-4 can be used in any mount or mounting surface with a 1/2" (13mm) hole.
Special Features:
- Chrome Plated Machined Brass
- Antenna Connector: 3/8" x 24 Thread
- Cable Connector: Center Bolt
Remarks:
Other Details
See warranty details aboveProduct Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
Nice Mount
Nice Mount. Does what its designed to do.
