Product Description

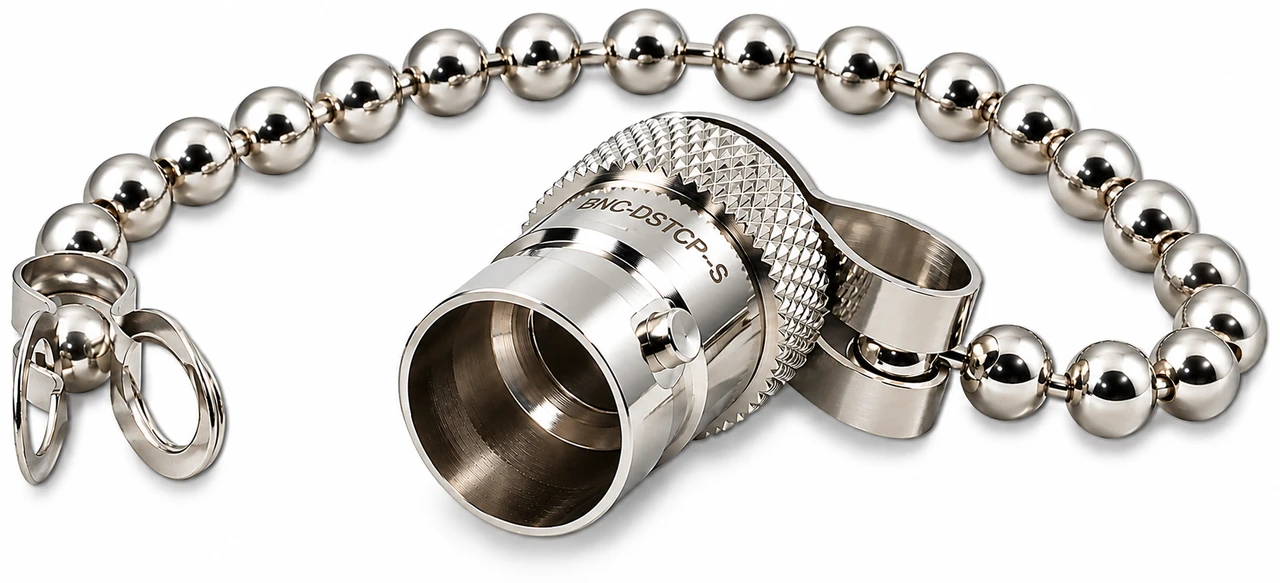

BNC Female Dust Cover Protective Cap with Retaining Chain
The BNC-DSTCP-S is a durable BNC female protective dust cover designed to protect unused BNC male plug connectors from moisture, dirt, dust, sand, and other environmental contaminants.
A built-in ball-chain retaining tether keeps the protective cap attached to the equipment or connector assembly when removed, helping prevent loss during field service and maintenance.
Features
- BNC Female Dust Cover / Protective Cap
- Retaining Ball Chain helps prevent loss
- Nickel-plated metal construction
- Designed for standard BNC male connectors
- Helps protect connector contacts from dirt, dust, moisture, and debris
- Suitable for indoor, outdoor, and field applications
- Quick and easy BNC bayonet-style installation and removal
- Helps reduce corrosion and contamination of unused RF connectors
Typical Applications
- RF Communications Equipment
- Two-Way Radios & Transceivers
- Antennas & RF Systems
- Test & Measurement Equipment
- Broadcast Equipment
- Mobile Communications
- Outdoor Wireless Installations
- Aviation & Marine Communications
- Industrial and Government Communications
- Field-Service Equipment
General Specifications
| Part Number | BNC-DSTCP-S |
| Connector Type | BNC Female Protective Dust Cover |
| Application | Protects unused BNC Male Connectors |
| Body Material | Nickel-Plated Metal / Brass Alloy |
| Retainer | Ball/Bead Chain |
| Chain Length | 90.0 mm (3.54") Nominal |
| BNC Female Length | 0.92 in (23.37 mm) |
| Outer Barrel / Inner Diameter of Outer Shell (Mating Opening) | 0.432 – 0.436 in (10.97 – 11.07 mm) |
| Mated Outer Diameter (With Locking Collar/Bayonet Sleeve) | 0.572 in (14.53 mm) |
| Retaining Ring I.D. | 4.0 mm |
| Finish | Shiny Nickel Plated |
| Connector Interface | Standard BNC Female |
| Environmental Protection | Helps resist moisture, dust, dirt and debris |
| Installation | BNC Bayonet Twist-On Connection |
Protect Unused BNC Connections
Leaving BNC connectors exposed can allow moisture, dust, dirt, and other contaminants to accumulate on the connector interface. The BNC-DSTCP-S provides a simple way to keep unused BNC male connectors covered when they are not in service.
The attached ball-chain retaining tether keeps the protective cap conveniently connected to the equipment or connector assembly, helping prevent loss during installation, maintenance, and field service.
