Product Description
4-Pin Male Panel Connector for Radio Microphone and Electrical
The CMC-4MP is a rugged 4-pin circular metal panel-mount connector designed for microphones, communications equipment, and low-voltage electrical applications. This GX16-4-style connector features a 16 mm threaded coupling system that provides a secure, locked connection resistant to vibration and accidental pulling.
It is well suited for Ham Radio and CB Radio microphone applications, as well as control panels, electronic equipment, test equipment, and other low-voltage applications requiring a durable 4-conductor connection.
Key Features
- 4-pin circular microphone and electrical connector
- GX16-4 style / 16 mm threaded connector
- Male panel jack – front mount
- Designed for Ham Radio and CB Radio microphones
- Suitable for low-voltage electrical applications
- Threaded screw-lock coupling helps prevent accidental disconnection
- Solder-type terminals for reliable wire termination
- Rugged metal construction
- Nickel/chrome-plated finish
- Can be installed in a standard round hole or a D-shaped hole for anti-rotation mounting
- Includes washer and locknut for panel installation
- Mates with 357-7xx series connectors
Panel Mounting
The CMC-4MP mounts from the front of the panel using the supplied washer and locknut.
- Required round mounting hole: 0.64" (16.26 mm) diameter
- Maximum panel thickness: 0.125" (3.18 mm)
- Mounting direction: Front mount
- Hardware: Washer and locknut supplied
- Anti-rotation option: Can also be installed in a D-shaped mounting hole to prevent the connector from turning during use
Common Applications
Two-Way, Ham & CB Radio Microphones
Ideal for microphone connections on amateur radio and CB radio equipment, particularly applications requiring a rugged threaded connector.
Low-Voltage Electrical Connections
Suitable for low-voltage power, control, and signal wiring where a secure multi-pin connection is required.
Communications Equipment
Useful for radio equipment, communications accessories, control boxes, and other electronic equipment requiring a 4-conductor connector.
Industrial & Electronic Equipment
Can be used on control panels, instrumentation, test equipment, CNC equipment, robotics, and electronic enclosures.

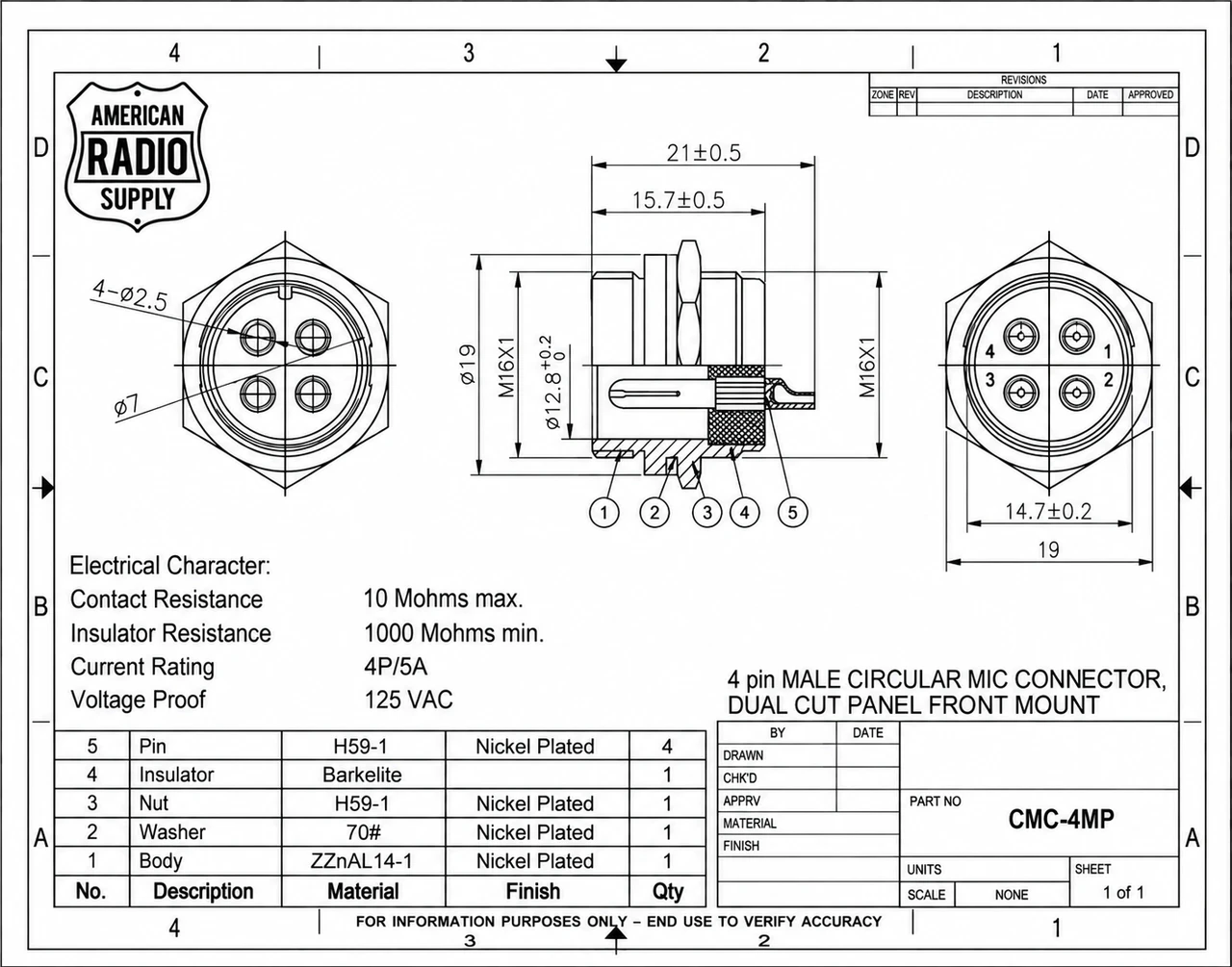

Specifications
| Part Number | CMC-4MP |
| Connector Type | 4-Pin Circular Male Panel Jack |
| Style | GX16-4 Style |
| Application | Ham Radio, CB Radio, Microphone & Low-Voltage Electrical |
| Number of Pins | 4 |
| Mounting Type | Front Panel Mount |
| Thread Size | 16 mm |
| Coupling | Threaded Screw-Lock |
| Mounting Hole | 0.64" (16.26 mm) diameter |
| Maximum Panel Thickness | 0.125" (3.18 mm) |
| Mounting Hardware | Washer & Locknut Supplied |
| Anti-Rotation Mounting | D-Hole Compatible |
| Termination | Solder |
| Body Material | Zinc Alloy |
| Finish | Nickel/Chrome Plated |
| Mating Connectors | 357-7xx Series |
| Voltage Rating | Typically 125–250 VAC* |
| Current Rating | Typically 5–7A per contact* |
*Electrical ratings may vary depending on the specific connector configuration and manufacturer. Verify ratings for the intended end use.
Installation
- Drill a 0.64" (16.26 mm) diameter hole through the panel.
- Insert the connector through the front of the panel.
- Install the supplied washer and locknut from the rear.
- Tighten the locknut securely.
- For applications where connector rotation must be prevented, use a suitable D-shaped mounting hole.
- Solder the wires to the four rear terminals according to the required wiring configuration.
Product Highlights
- 4-pin microphone connector
- Ham & CB radio compatible
- Front-mount panel jack
- 16 mm threaded locking system
- 0.64" mounting hole
- Supports panels up to 1/8" thick
- D-hole anti-rotation mounting option
- Washer and locknut included
- Solder termination
- Rugged metal construction
- Mates with 357-7xx series connectors
