Product Description

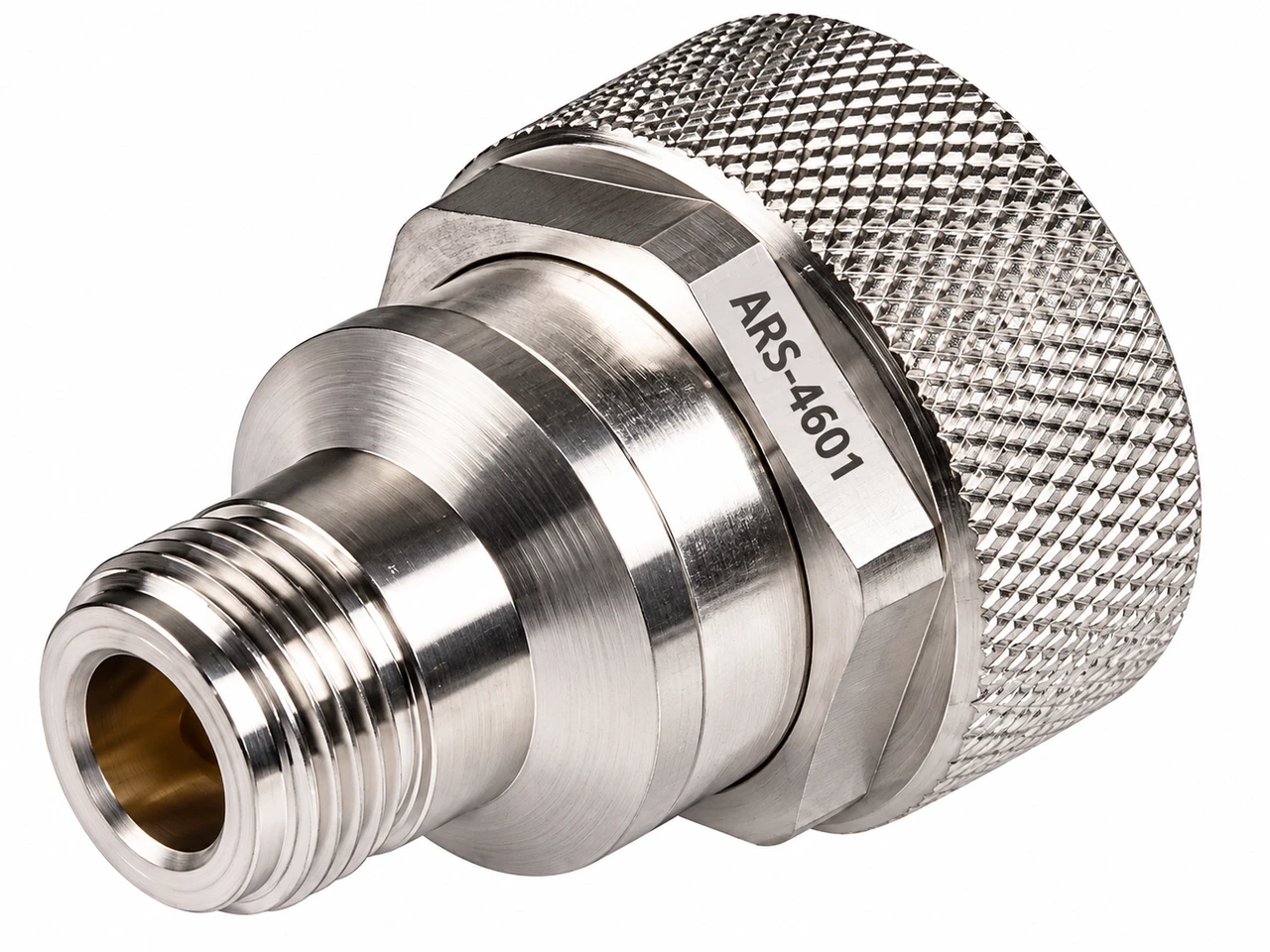

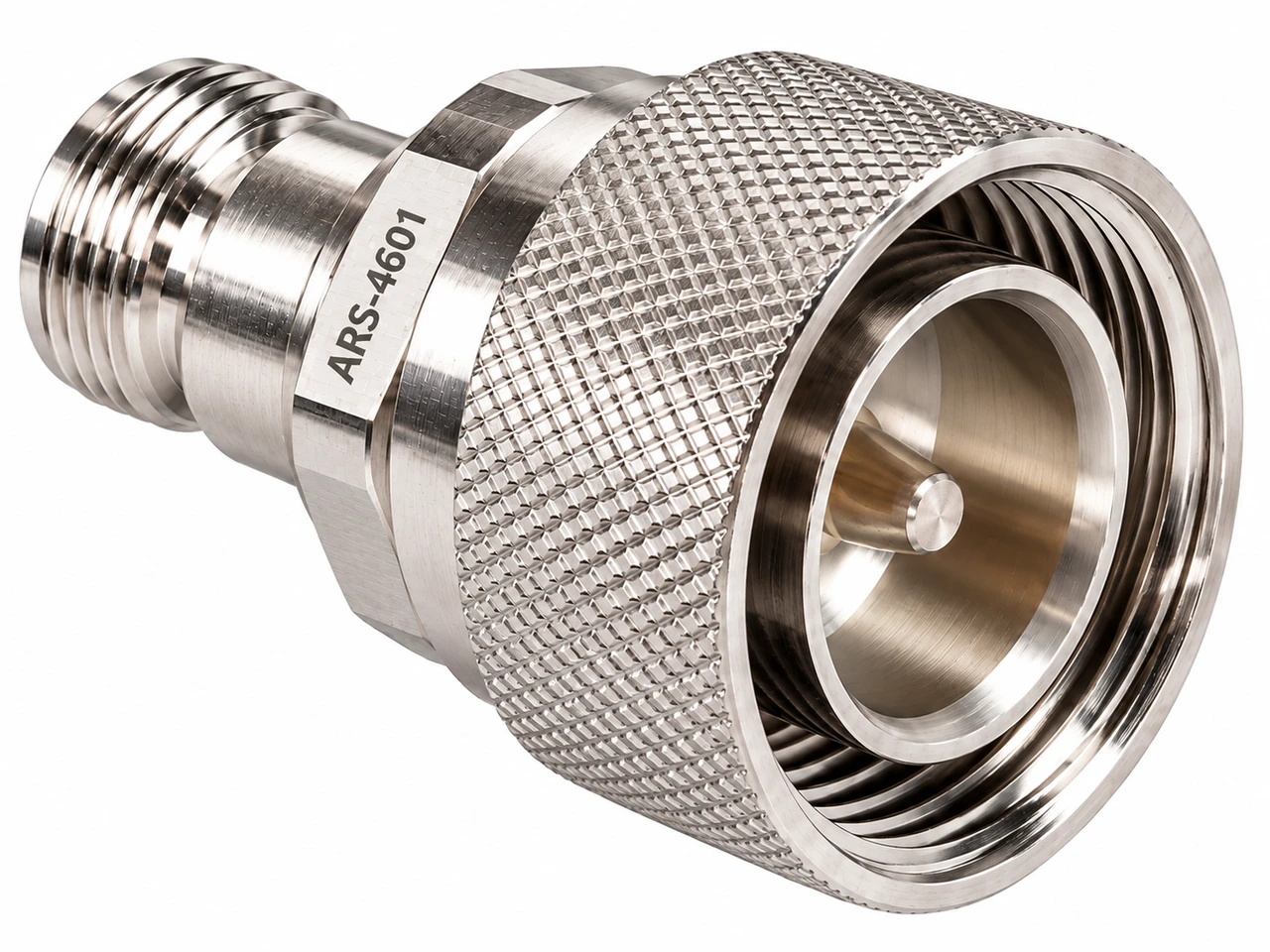

DIN 7/16 Male to N-Female Coaxial Adapter Connector
The ARS-4601 - DIN 7/16 Male to N-Female Coaxial Adapter Connector provides a reliable interface between DIN 7/16 and Type N coaxial RF connections. Constructed with nickel-plated brass for durability and corrosion resistance, this adapter features gold-plated beryllium copper (BeCu) contacts and a Delrin dielectric for dependable electrical performance in demanding RF applications.
Designed for 50-ohm coaxial systems, the ARS-4601 is suitable for RF test equipment, wireless infrastructure, antenna systems, telecommunications installations, and other applications requiring an adapter between DIN 7/16 and Type N interfaces.
Key Features
-
Connector Configuration: DIN 7/16 Male to Type N Female
-
Impedance: 50 ohms
-
Frequency Range: DC to 11 GHz (typical)
-
VSWR: ≤ 1.5:1 (typical)
-
Body Material: Nickel-plated brass
-
Contact Material: Gold-plated beryllium copper (BeCu)
-
Dielectric Insulator: Delrin
-
Rugged Construction: Designed for dependable RF connectivity
Typical Applications
-
Cellular and wireless communications infrastructure
-
RF transmission and antenna systems
-
Radio communications equipment
-
RF test and measurement setups
-
Telecommunications and industrial RF installations
Product Details
-
Manufacturer/Brand: American Radio Supply
-
Part Number: ARS-4601
-
Product Type: Coaxial RF adapter connector
-
Connector Interfaces: DIN 7/16 Male to N-Female
The ARS-4601 offers a practical solution for connecting equipment with dissimilar RF connector interfaces while maintaining a 50-ohm connection. Its durable construction and quality contact materials make it a useful component for professional RF and wireless communication systems.
Specifications are typical unless otherwise stated. Confirm mechanical compatibility and operating requirements for your specific application before installation.
