Product Description

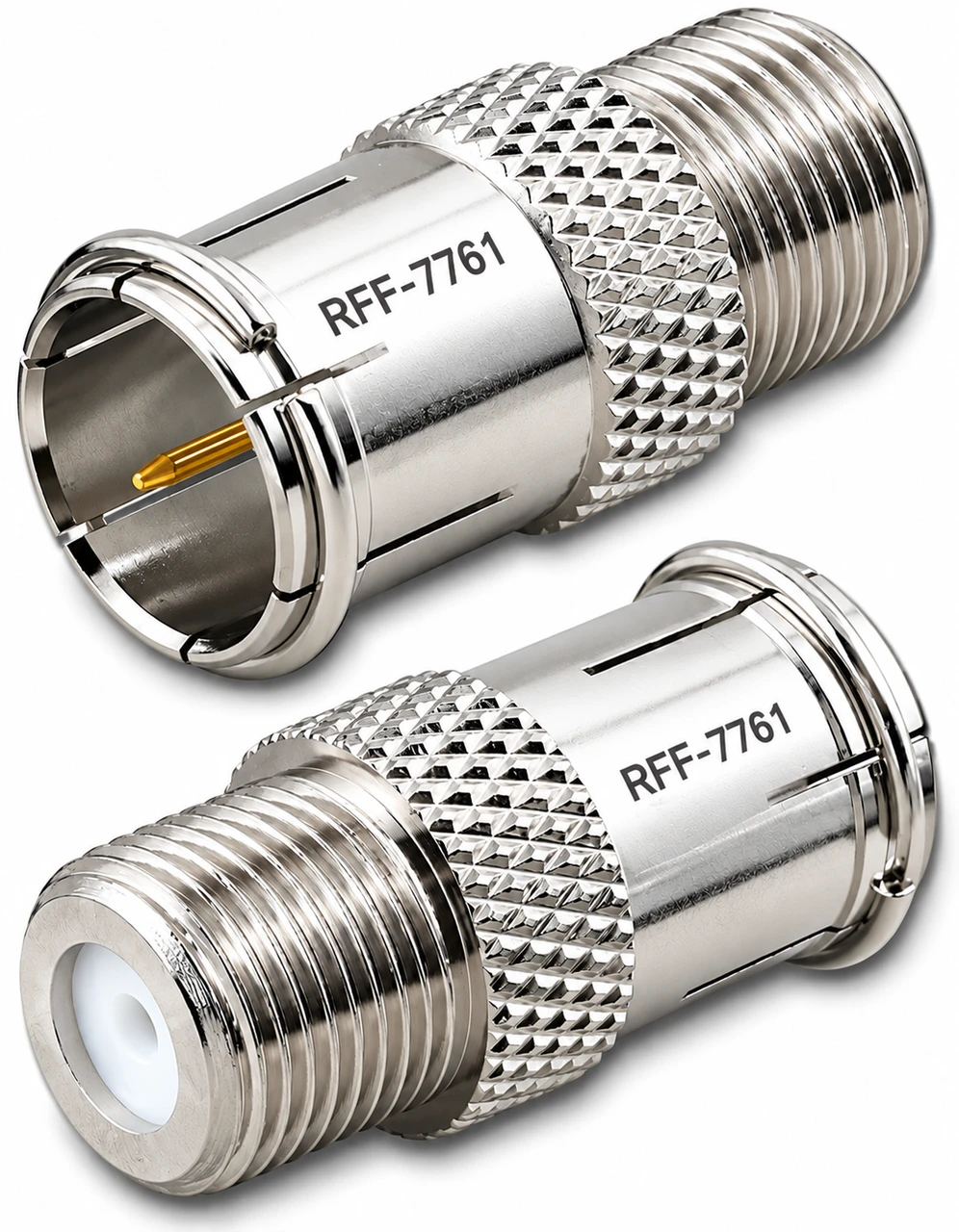

F Male Female Quick Connect Coaxial Adapter
The RFF-7761 is a compact RF coaxial connector designed for reliable electrical connection in radio communication and RF applications. Its rugged construction combines a nickel-plated brass body, stainless-steel spring, brass contact, and polymer insulation for dependable mechanical performance and consistent electrical connectivity.
Features
- Rugged RF coaxial connector construction
- Nickel-plated brass body
- Tin-plated brass contact
- Stainless-steel spring
- PE insulation
- 3/8-32 UNEF threaded interface
- Compact approximately 23.0 mm overall reference length
- Precision-machined mechanical configuration
- Suitable for RF, radio communication, antenna, and coaxial cable applications

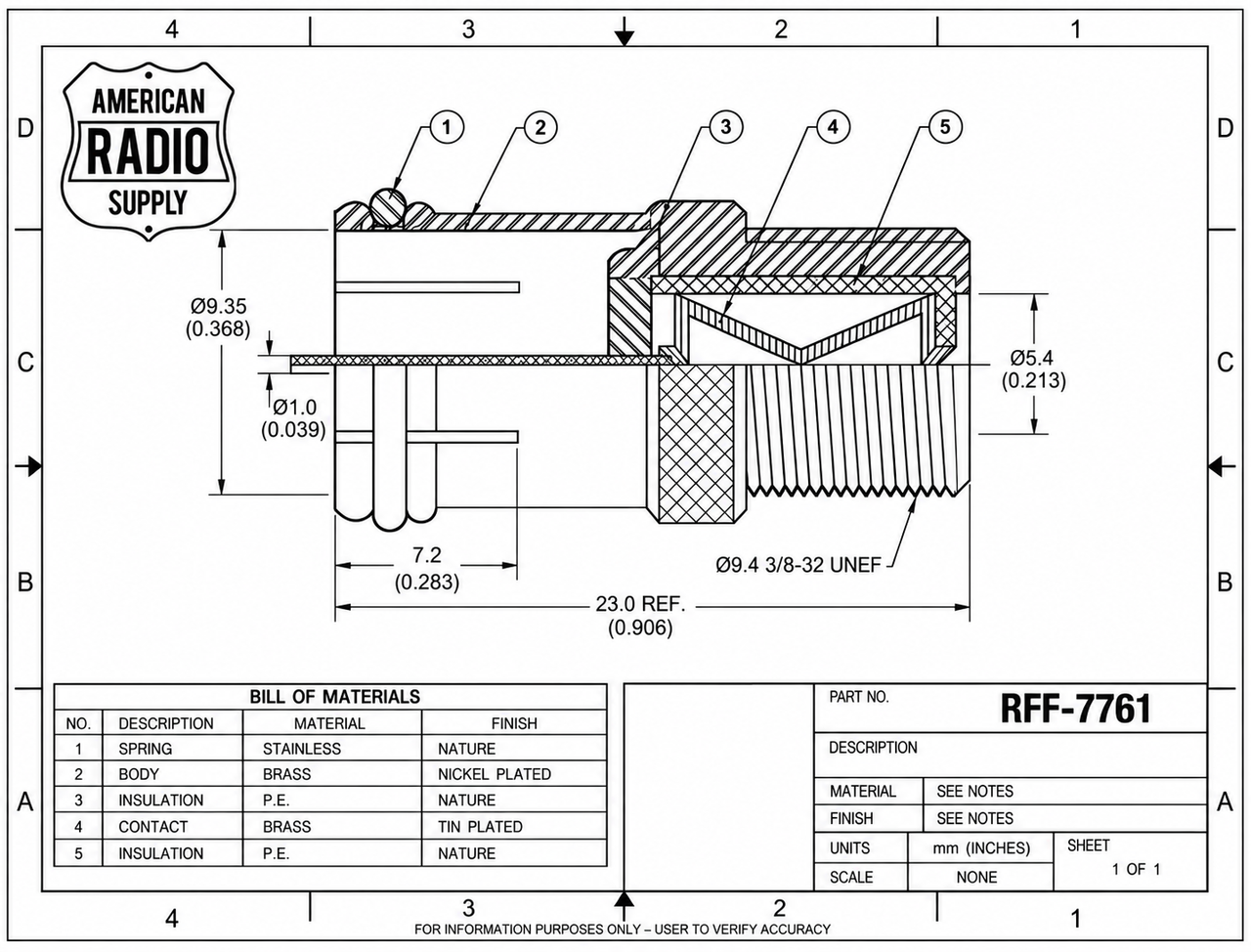

Mechanical Specifications
| Part Number | RFF-7761 |
| Overall Length | 23.0 mm REF. (0.906 in.) |
| Main Body Diameter | Ø9.35 mm (0.368 in.) |
| Contact Diameter | Ø1.0 mm (0.039 in.) |
| Thread | 3/8-32 UNEF |
| Thread Diameter | Ø9.4 mm |
| Rear/Opening Diameter | Ø5.4 mm (0.213 in.) |
| Spring Length Reference | 7.2 mm (0.283 in.) |
Materials & Finishes
| Component | Material | Finish |
|---|---|---|
| Spring | Stainless Steel | Natural |
| Body | Brass | Nickel Plated |
| Insulation | PE | Natural |
| Contact | Brass | Tin Plated |
| Insulation | PE | Natural |
Applications
The RFF-7761 is suitable for use in:
- Amateur radio equipment
- Commercial two-way radio systems
- RF communication equipment
- Antenna assemblies
- Coaxial cable assemblies
- Wireless communication equipment
- RF test and instrumentation applications
- Custom radio and electronic equipment
The RFF-7761 RF Coaxial Connector is a compact, mechanically robust connector designed for dependable RF interconnection where reliable construction and a threaded interface are required.
