Product Description

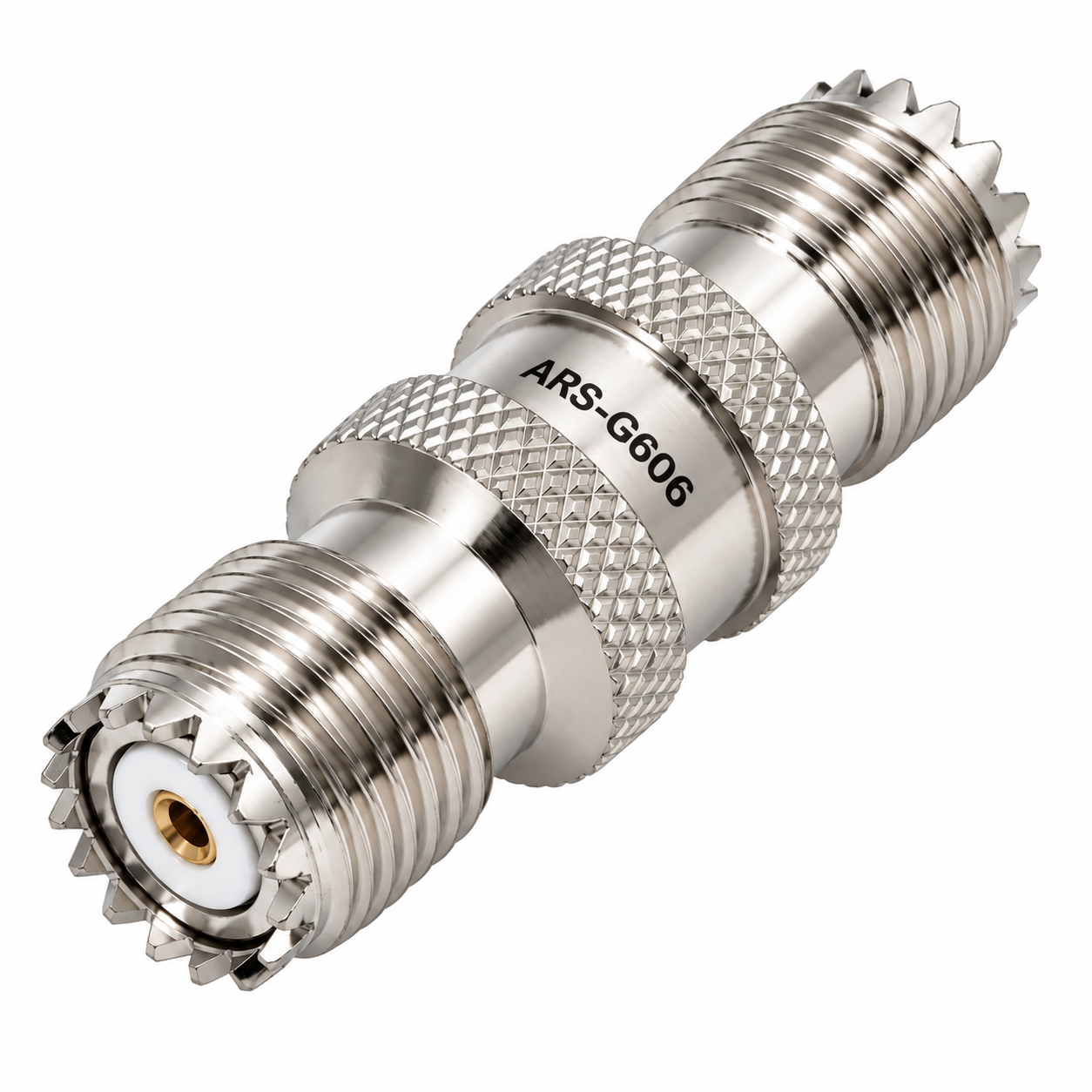

ARS-G606 – Mini-UHF Female to Female Coaxial Adapter Barrel Coupler
The ARS-G606 Mini-UHF Female to Female Coaxial Adapter is a compact 50-ohm RF barrel coupler designed to connect two coaxial cables equipped with male Mini-UHF connectors. This adapter provides a convenient solution for extending cable runs, changing connection configurations, or joining two existing Mini-UHF coaxial assemblies.
Constructed from machined brass with a nickel-plated finish, the ARS-G606 provides a durable, corrosion-resistant exterior suitable for mobile radio, communications, automotive, fleet, and general RF applications. The gold-plated center contacts provide reliable electrical conductivity, while the compact design is useful where installation space is limited.
Key Features
- Mini-UHF Female to Mini-UHF Female — Jack-to-Jack configuration
- 50-Ohm impedance for RF communications applications
- Nickel-plated machined brass body for durability and corrosion resistance
- Gold-plated center contacts for dependable electrical connection
- Delrin insulation for the internal dielectric
- Overall length: 1-3/16" (approximately 30.16 mm)
- Compact barrel-style design for easy installation
- Ideal for joining two male Mini-UHF terminated coaxial cables
Common Applications
Cable Extension:
Connect two separate coaxial cables terminated with male Mini-UHF connectors to create a longer cable assembly.
Mobile & Two-Way Radio:
Well suited for mobile radio and communications installations where Mini-UHF connectors are commonly used.
Automotive & Fleet Installations:
Useful for semi-trucks, commercial vehicles, emergency vehicles, fleet equipment, and other installations where compact RF connections are required.
RF & Communications Equipment:
Can be used wherever a reliable Mini-UHF female-to-female connection is needed for a 50-ohm coaxial system.
Technical Specifications
| Part Number | ARS-G606 |
| Connector Configuration | Mini-UHF Female to Mini-UHF Female |
| Connector Style | Jack to Jack / Barrel Coupler |
| Impedance | 50 Ohm |
| Frequency Range | DC to approximately 2.0–2.5 GHz |
| Body Material | Machined Brass |
| Body Finish | Nickel Plated |
| Center Contact | Gold Plated |
| Insulator | Delrin |
| Overall Length | 1-3/16" (30.16 mm) |
| Application | RF / Coaxial Cable Connection |
What's Included
- 1 × ARS-G606 Mini-UHF Female to Female 50-Ohm Coaxial Adapter
ARS-G606 is a practical, compact solution for connecting two male Mini-UHF coaxial cables while maintaining a durable nickel-plated brass construction and reliable 50-ohm RF connection.
