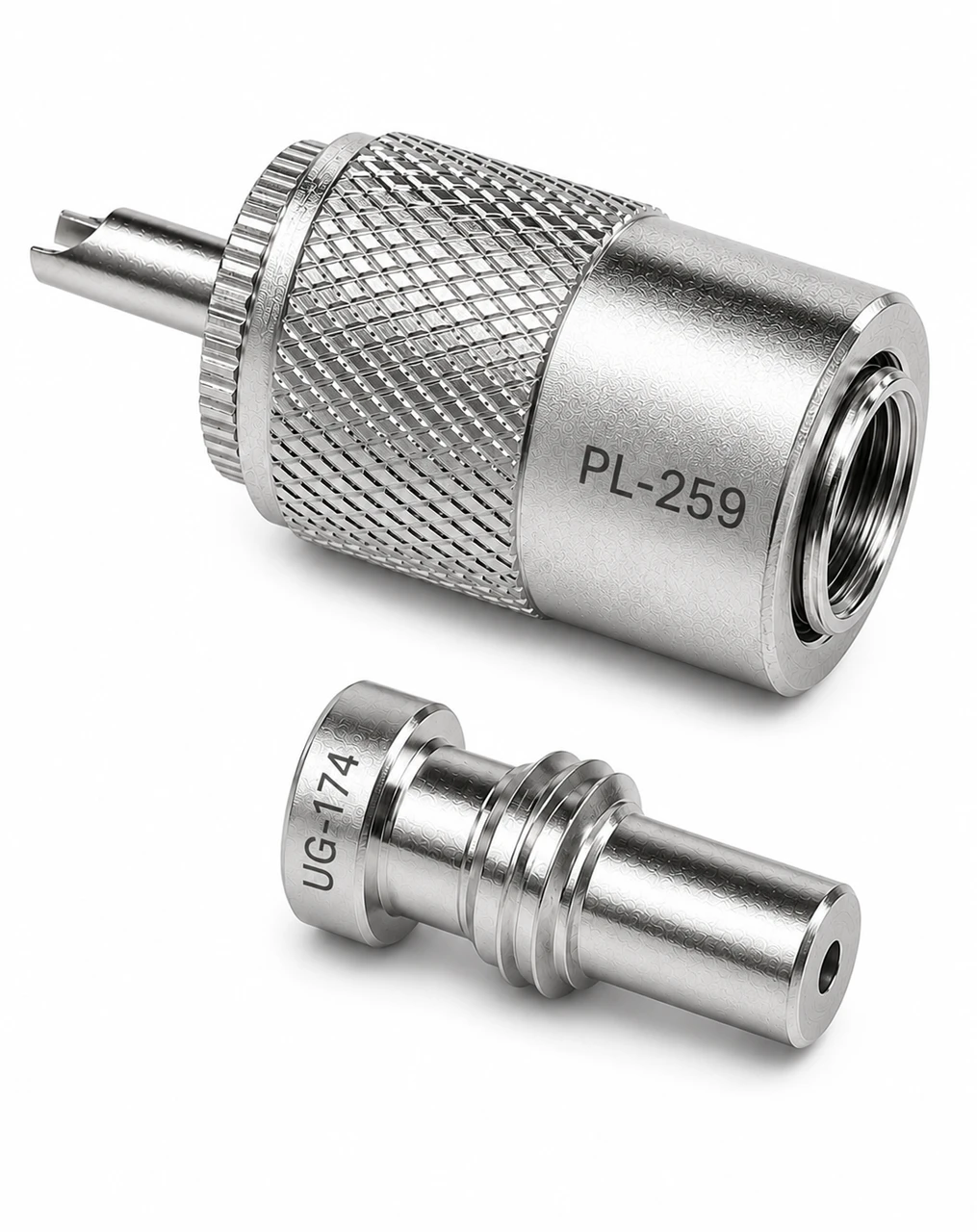

PL-259 / UG-174 - UHF Male Cable Plug Coaxial Connector
The PL-259 / UG-174 coaxial connector assembly provides a practical way to terminate small-diameter coaxial cable such as RG-174, RG-316, RG-178, RG-188, LMR-100A, and Belden 8216 with a standard UHF male (PL-259) connector. The included UG-174 reducer sleeve adapts the larger PL-259 body for use with approximately 0.100-inch (2.5 mm) OD miniature coaxial cable.
Constructed with a silver-plated machined brass body, PTFE (Teflon) dielectric, and silver-plated center pin, this connector is well suited for RF jumper cables, amateur radio equipment, test equipment, and other applications requiring a compact connection to small coax.
Features
- UHF Male (PL-259) coaxial connector
- Includes UG-174 reducer sleeve
- Designed for approximately 0.100" (2.5 mm) OD coax
- Silver-plated machined brass construction
- PTFE (Teflon) dielectric
- Silver-plated center contact
- Designed for 50-ohm RF systems
- Well suited for HF, VHF, and lower-UHF applications
- Ideal for custom jumper and patch cable assemblies
Compatible Coaxial Cables
- RG-174
- RG-316
- RG-178
- RG-188
- LMR-100A
- Belden 8216
- Other miniature coaxial cable with approximately 0.100" OD
Applications
Two-Way Radios: Build thin, flexible jumper cables, patch leads, and equipment interconnects for radios and RF accessories.
RF Testing & Instrumentation: Connect miniature coaxial test leads to equipment using standard SO-239/UHF female ports.
Custom RF Jumper Assemblies: Suitable for antenna analyzers, SWR meters, dummy loads, test fixtures, and other RF equipment where small-diameter coax is preferred.
Specifications
| Connector Type | UHF Male (PL-259) |
| Reducer | UG-174/U adapter sleeve |
| Compatible Cable OD | Approx. 0.100" (2.5 mm) |
| Compatible Cables | RG-174, RG-316, RG-178, RG-188, LMR-100A, Belden 8216 |
| Impedance | 50 Ohms nominal |
| Body Material | Machined Brass |
| Body Finish | Silver Plated |
| Dielectric | PTFE (Teflon) |
| Center Pin | Silver Plated |
| Typical Frequency Range | HF, VHF & lower UHF; typically < 500 MHz |
Note: UHF/PL-259 connectors are not true constant-impedance 50-ohm connectors. While suitable for many HF, VHF, and lower-UHF applications, impedance matching and VSWR performance can become increasingly dependent on connector geometry and installation at higher frequencies.
