Product Description

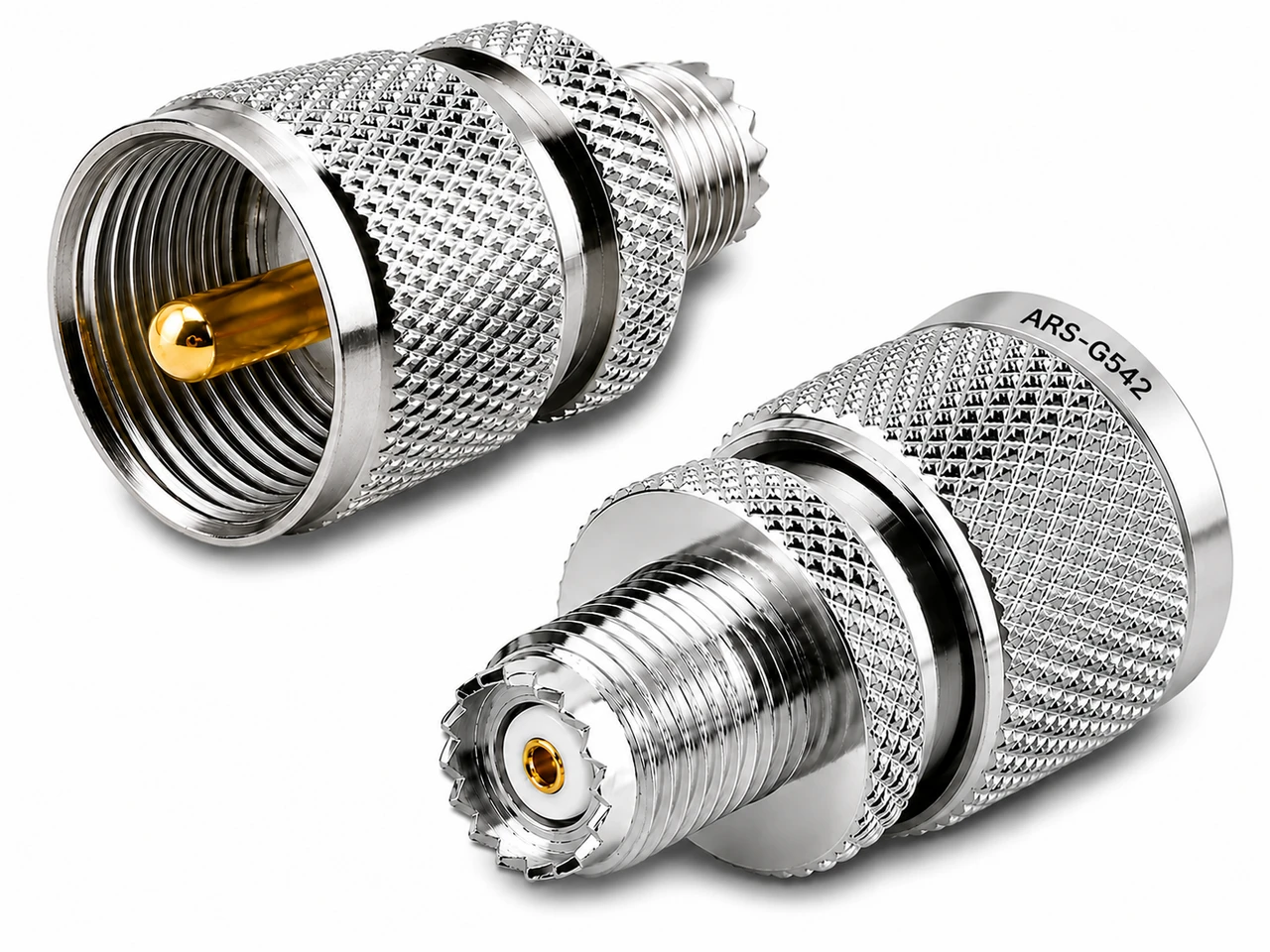

PL-259 UHF-Male to Mini-UHF-Female Coaxial Adapter
The ARS G542 is a PL-259 UHF-Male to Mini-UHF-Female coaxial adapter and it provides a convenient way to connect RF equipment and coaxial cables using standard UHF and smaller Mini-UHF connector interfaces. This compact adapter is ideal for radio installations where different connector sizes or styles need to be integrated without replacing existing cables or equipment.
Key Features
- UHF-Male (PL-259) to Mini-UHF-Female
- Provides reliable RF connection between different UHF connector formats
- 50-ohm impedance for radio and RF applications
- Compact design for installations where space is limited
- Durable nickel-plated brass construction
- PTFE (Teflon) dielectric insulator
- Low signal reflection with VSWR ≤ 1.15 under applicable conditions
- Suitable for amateur radio, CB, mobile radio, and general RF applications
Typical Applications
- Amateur & Ham Radio: Connect equipment or antenna systems using PL-259/UHF connections to compatible Mini-UHF equipment.
- Mobile Two-Way Radio: Useful for adapting coaxial cables and mobile radio equipment with Mini-UHF interfaces.
- CB Radio: Provides connectivity between conventional UHF/PL-259 systems and compatible Mini-UHF components.
- Commercial Radio: Suitable for mobile communication installations where Mini-UHF connectors are used.
- RF Equipment: Convenient for adapting different coaxial connector configurations without replacing the complete cable assembly.
- Space-Constrained Installations: The compact Mini-UHF interface is useful where a smaller connector footprint is preferred.
Specifications
Connector A: UHF-Male / PL-259
Connector B: Mini-UHF-Female Jack
Impedance: 50-Ohms
Body: Nickel Plated Brass Alloy
Contacts: Gold Plated Beryllium Copper
Insulator: Delrin
VSWR: ≤ 1.15
Frequency: DC–6 GHz (Typical)
