Product Description

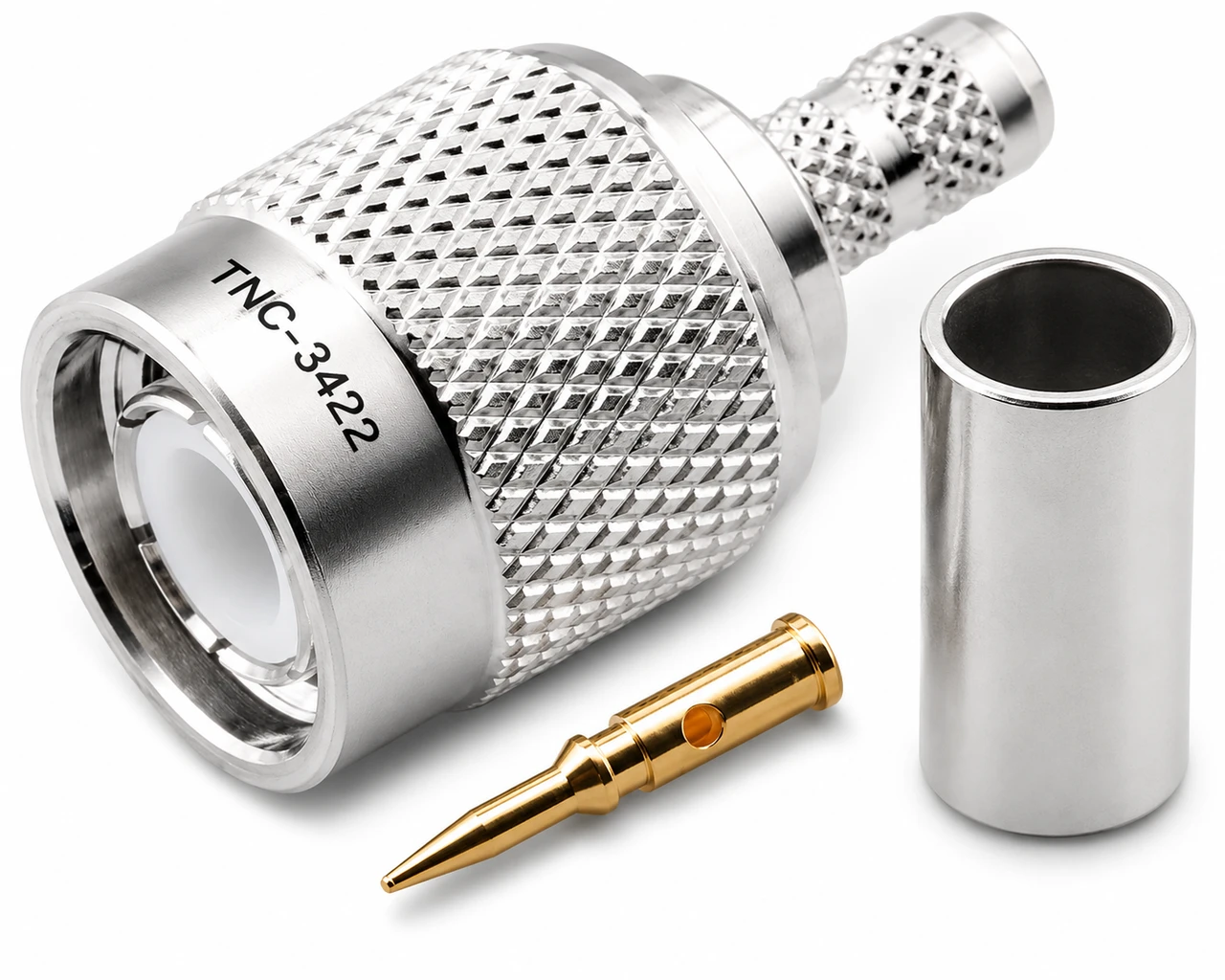

TNC Male Coaxial Connector for RG-58/U
The TNC Male Coaxial Connector for RG-58/U is a rugged, threaded RF connector designed to provide a secure 50-ohm connection to RG-58/U coaxial cable. Its threaded coupling mechanism delivers a reliable connection that is well suited for applications exposed to vibration, movement, and demanding operating conditions.
Unlike a BNC connector's bayonet-style coupling, the TNC connector uses a threaded interface that helps prevent accidental disconnection while providing excellent mechanical stability and dependable RF signal transfer.
Key Features
- TNC Male Connector – Threaded RF connection for secure mating.
- Designed for RG-58/U – Compatible with standard RG-58/U 50-ohm coaxial cable. Does not fit RG-58A/U
- 50 Ohm Impedance – Optimized for RF and wireless signal applications.
- Threaded Coupling – Provides a vibration-resistant and secure connection.
- 3-Piece Construction – Typical crimp configuration includes the connector body, center pin, and outer ferrule.
- Durable Construction – Nickel-plated brass is commonly used for corrosion resistance and long-term durability.
- Gold-Plated Center Pin – Provides low contact resistance and reliable electrical conductivity.
- Multiple Termination Options – Available in crimp, twist-on, or solder configurations depending on installation requirements.
Common Applications
- Cellular and wireless antenna systems
- Wi-Fi and WLAN equipment
- In-building wireless systems
- Two-way radio and RF equipment
- RF test and measurement equipment
- Laboratory instrumentation
- Aviation communications
- Military and ruggedized electronics
- Applications subject to vibration or movement
