Product Description

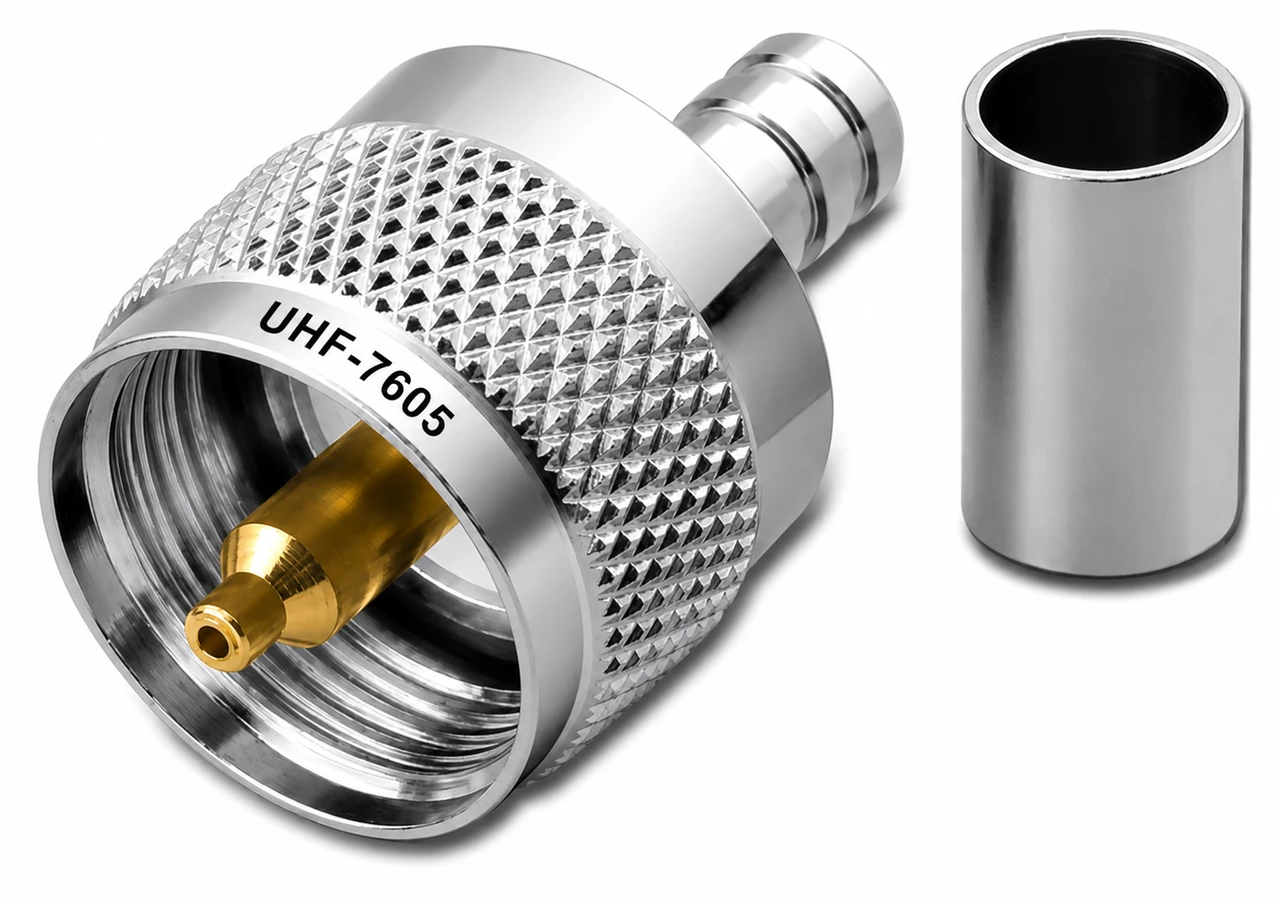

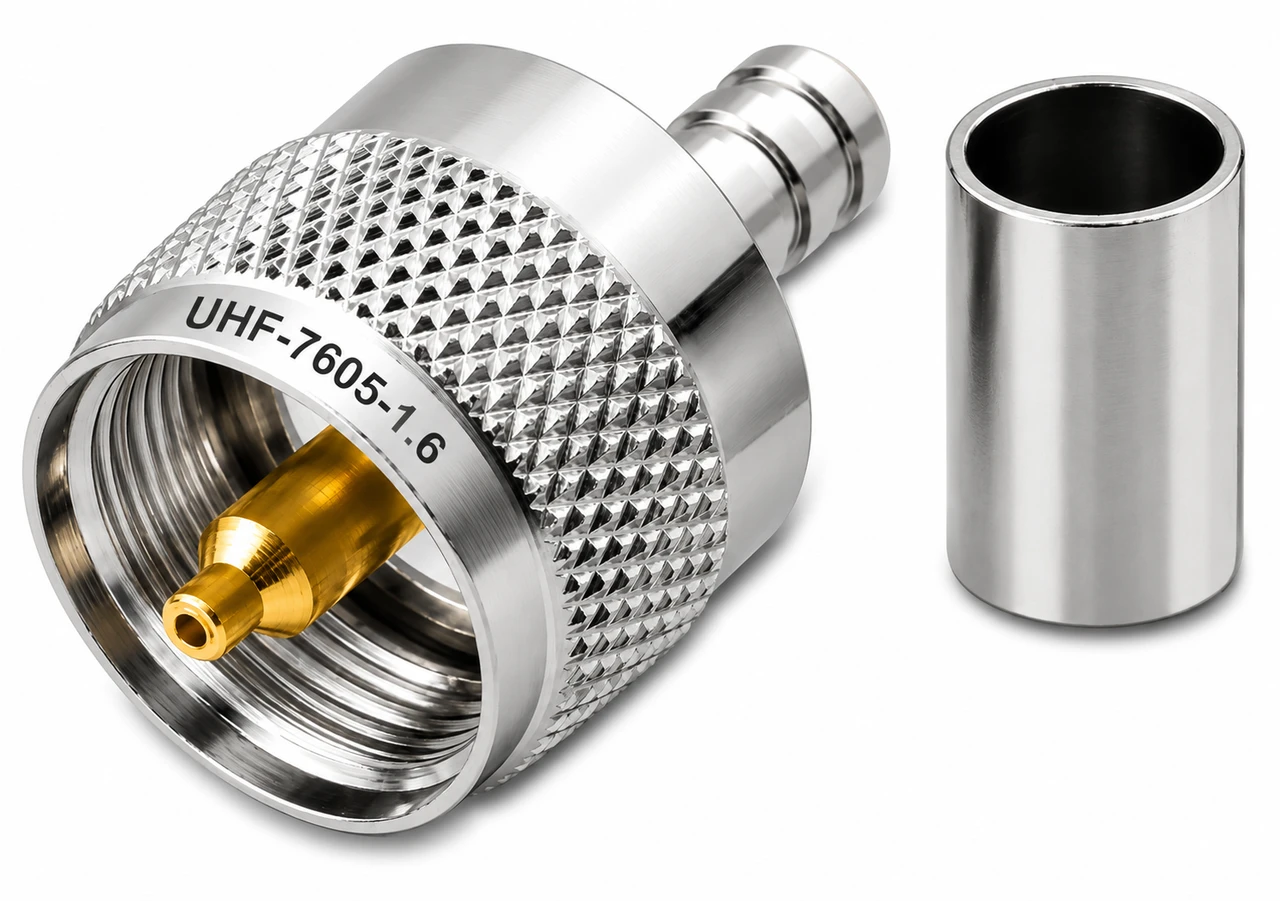

UHF-7605-8X – PL-259 UHF-Male Coaxial Connector
The ARS-G505-8X - PL-259 UHF-Male Coaxial Crimp Connector is a heavy-duty RF connector designed for terminating RG-8X, LMR-240, and Belden 7808A coaxial cables with 0.240-inch class coaxial cables. Constructed from durable nickel-plated brass alloy with a PTFE (Teflon) insulator, this connector provides a reliable connection for amateur radio, CB, marine VHF, and other RF applications.
The PL-259, commonly known as a UHF-Male connector, mates with a standard SO-239 UHF-Female chassis connector. The connector is designed for cable termination using a combination of center-pin soldering or crimping and outer-ferrule crimping, providing a secure mechanical and electrical connection.
Compatible Coaxial Cables
- RG-8X
- LMR-240
- Belden 7808ALMR-240
- Other compatible coaxial cables with approximately 0.240-inch outer diameter
Product Features
- Connector Type: PL-259 / UHF-Male
- Impedance: 50 Ohm applications
- Body Material: Nickel-plated brass
- Insulator: PTFE (Teflon)
- Cable Type: RG8X, LMR-240, Belden 7808A and compatible 0.240-inch coaxial cable
- Termination: Center pin solder/crimp; outer ferrule crimp
- Mating Connector: SO-239 / UHF-Female
- Construction: Durable design for demanding RF applications

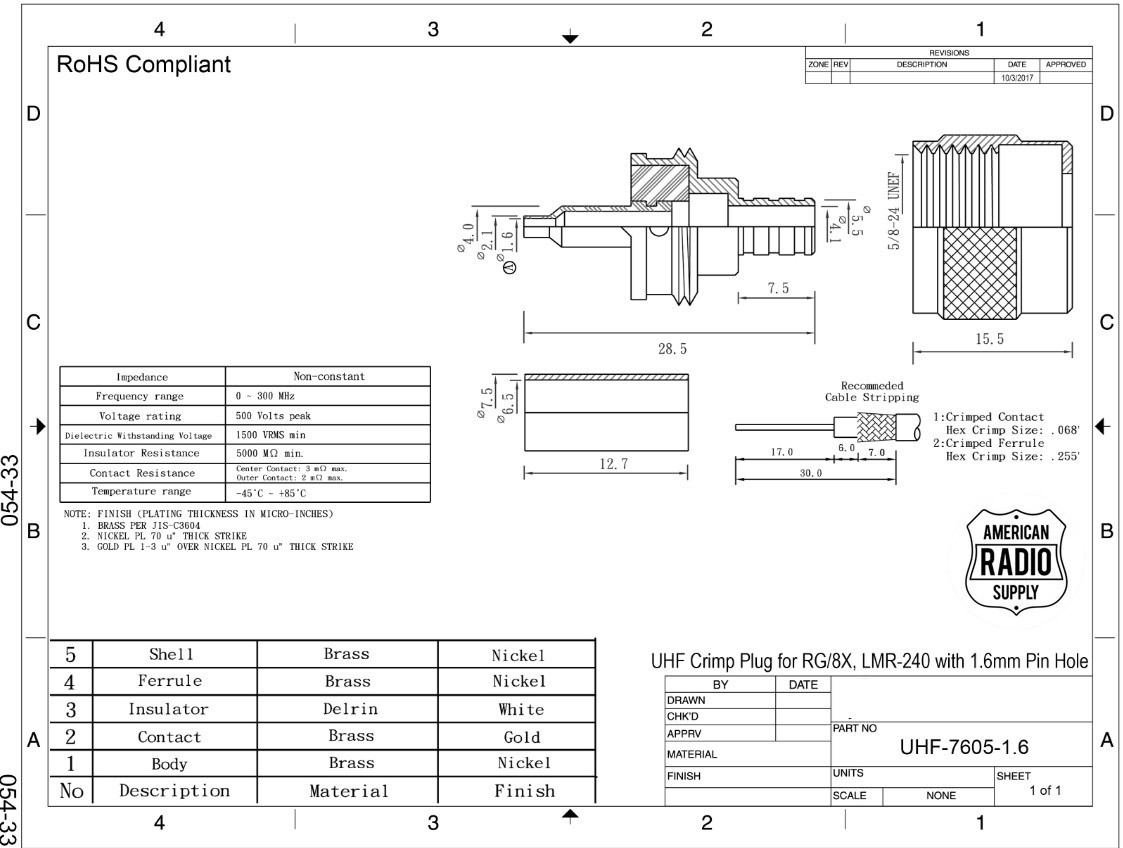

- Part Number: UHF-7605-8X (1.6mm center conductor bore hole)
Installation
Prepare the coaxial cable according to the connector's termination dimensions. Install and secure the center contact by crimping or soldering, then slide the outer ferrule into position and crimp the ferrule securely around the cable.
Common Applications
The UHF-7605-8X is suitable for:
- Amateur / HAM radio
- CB radio
- Marine VHF radio
- Base-station antennas
- Mobile radio installations
- RF coaxial cable assemblies
- Antenna feed lines
- Communications equipment
Important Note
PL-259/UHF connectors are widely used for HF and VHF communications and are commonly found on amateur and CB radio equipment. The UHF connector is a non-constant-impedance design, so it is generally best suited to lower-frequency RF applications rather than modern high-frequency microwave systems.
