Product Description

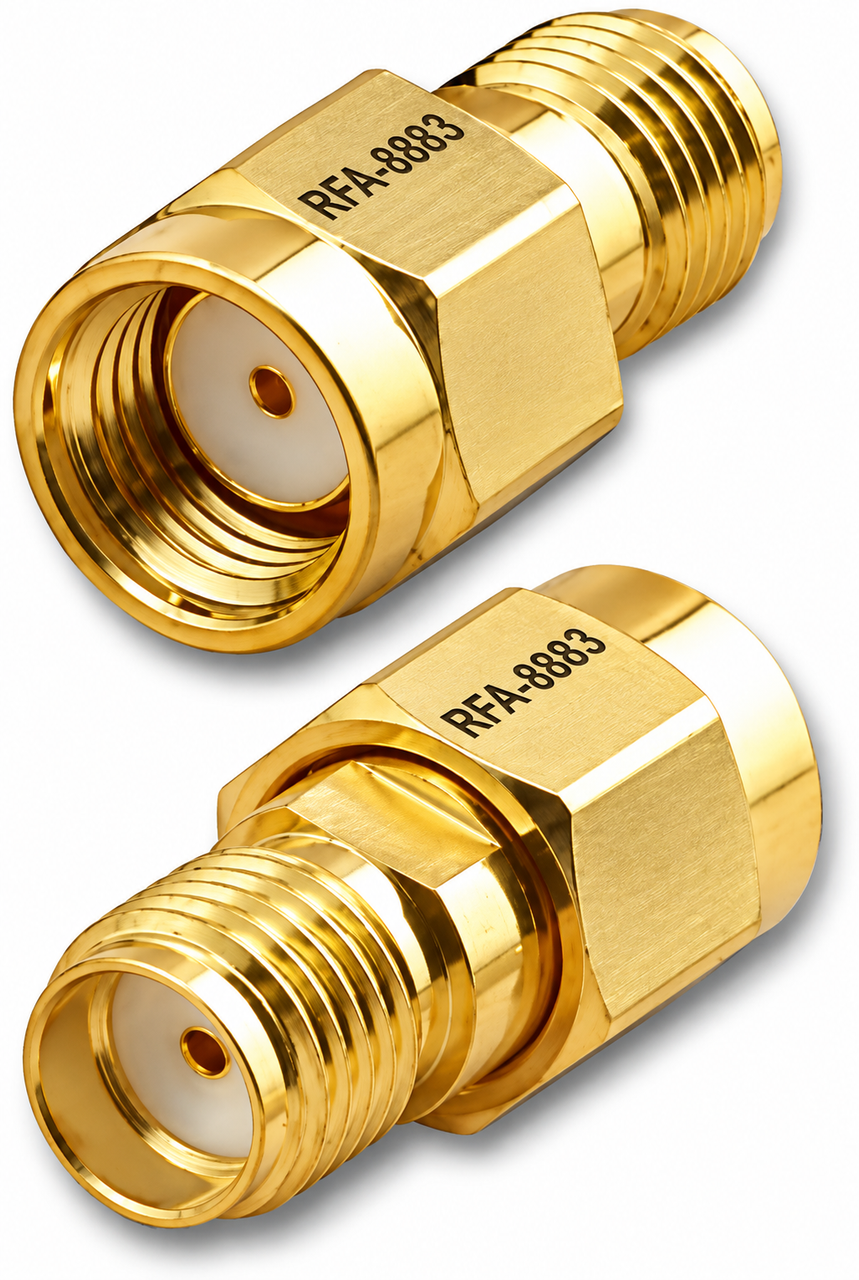

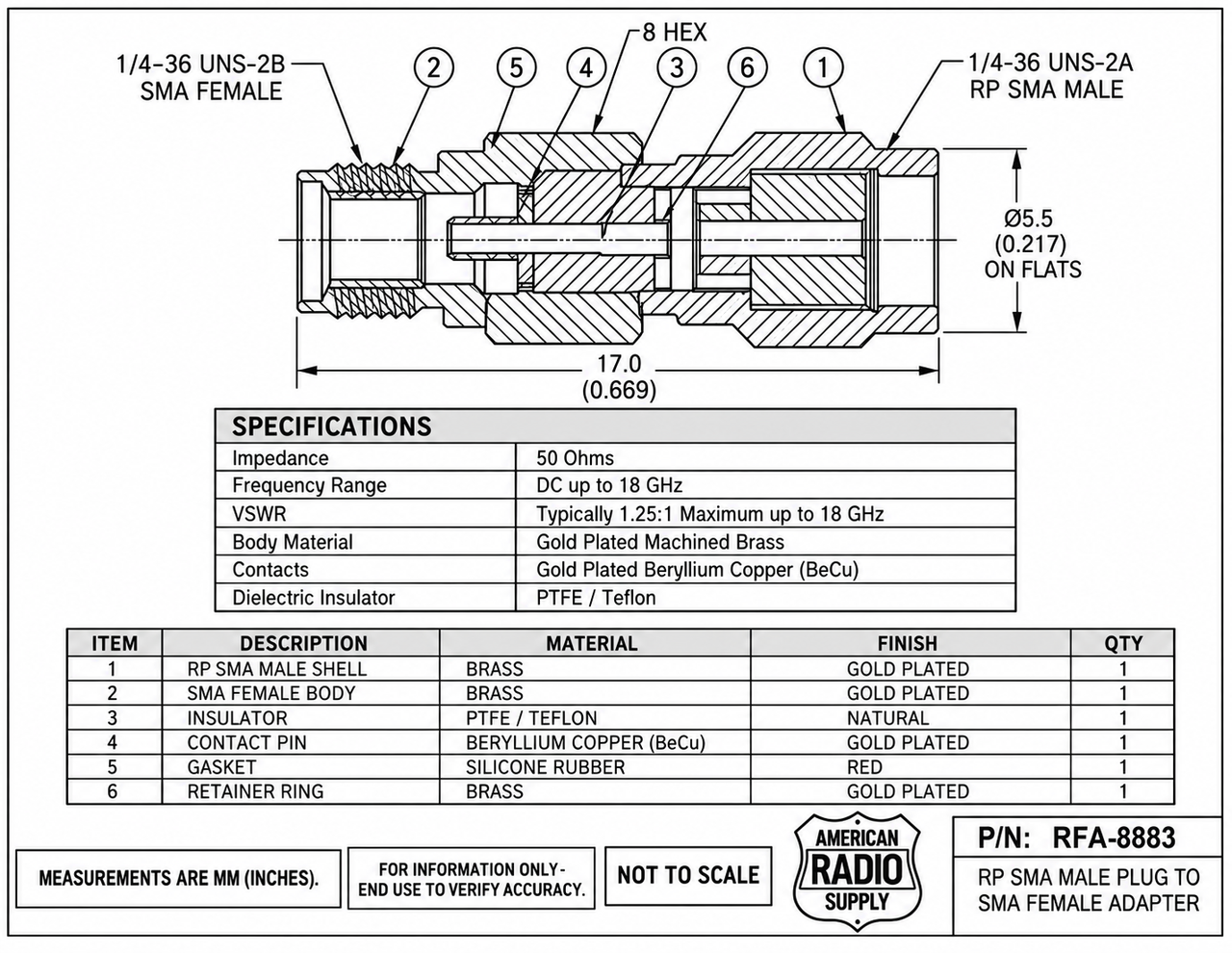

RP SMA Male Plug to SMA Female Coaxial Adapter
The RFA-8883 is a precision RF coaxial adapter designed to connect RP SMA male and SMA female interfaces. Its gold-plated machined brass construction provides durability and reliable RF connectivity for high-frequency applications.
- Part Number: RFA-8883
- Configuration: RP SMA Male Plug to SMA Female
- Impedance: 50 Ohms
- Frequency Range: DC to 18 GHz
- VSWR: Typically 1.25:1 maximum up to 18 GHz
- Body: Gold-plated machined brass
- Contacts: Gold-plated beryllium copper (BeCu)
- Dielectric: PTFE / Teflon
- Overall Length: 17.0 mm (0.669")
- Hex: 8 mm
Ideal for RF test equipment, antennas, wireless communications, cellular/RF systems, and coaxial cable assemblies where a compact SMA interface conversion is required.
