Product Description

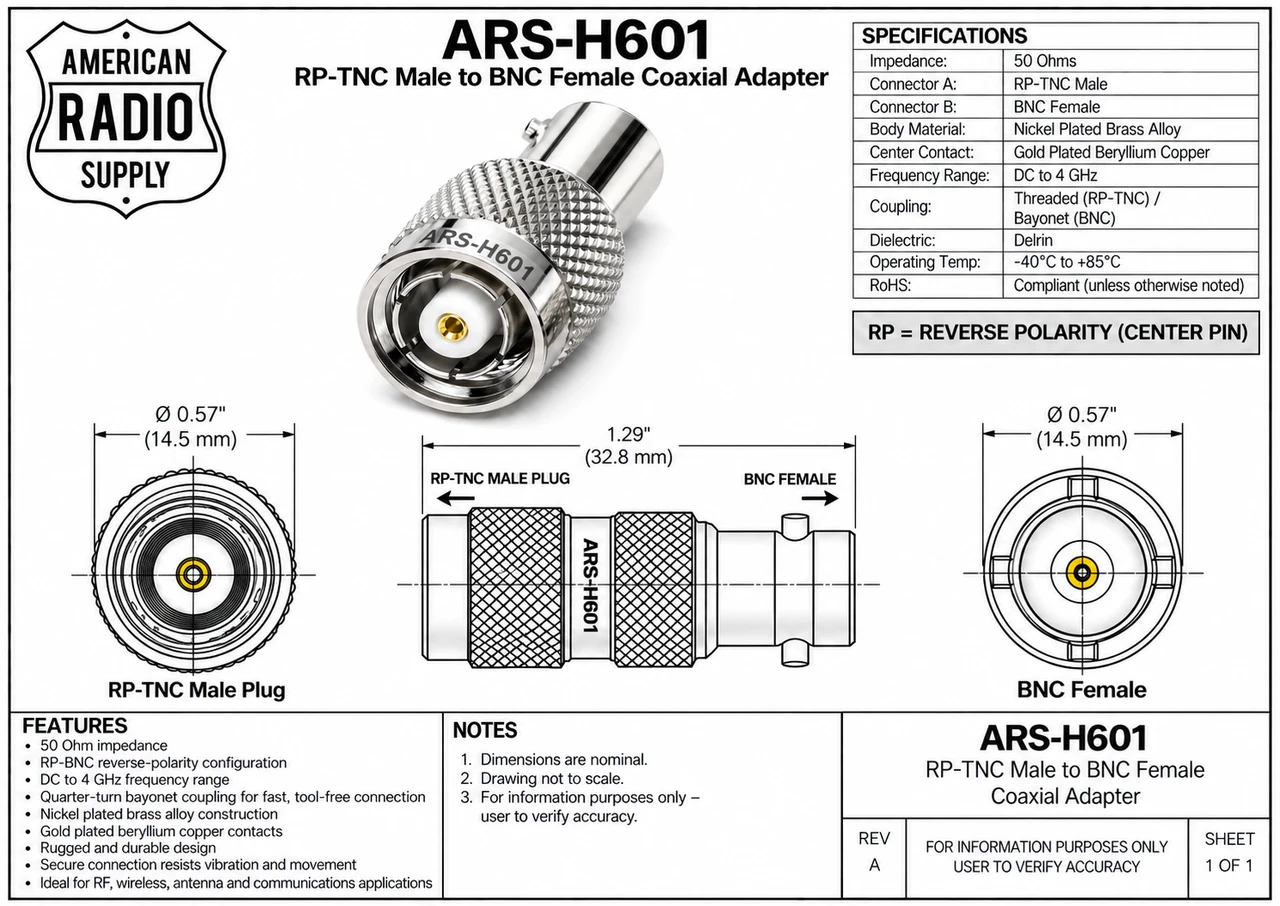

RP-TNC-Male to BNC-Female Coaxial Adapter Connector
The ARS-H601 - RP-BNC (Reverse Polarity BNC) coaxial adapter is a rugged 50-ohm RF connector designed for wireless networking, race timing systems, antenna applications, and other high-frequency communications. It combines the convenience of a quarter-turn BNC bayonet connection with reverse center-contact polarity, helping prevent accidental mating with standard BNC connections.
Featuring a nickel-plated brass alloy body and gold-plated beryllium copper contacts, the connector provides durability, corrosion resistance, and dependable electrical performance. With an operating frequency range of DC to 4 GHz, SKU H601 is well suited for RF installations requiring secure connections and repeated field deployment.
Key Features
- 50-ohm impedance
- RP-BNC reverse-polarity configuration
- DC to 4 GHz frequency range
- Quarter-turn bayonet coupling for fast, tool-free connection
- Nickel-plated brass construction for strength and corrosion resistance
- Connector body constructed from nickel-plated brass alloy
- Gold-plated beryllium copper alloy contacts for reliable electrical conductivity
- Secure connection helps resist accidental disconnection from vibration and movement
- Designed for quick field deployment and repeated connection
- Suitable for high-frequency RF, wireless, antenna, and communications applications
- Compatible with a variety of common 50-ohm coaxial cable systems, depending on connector configuration
- RoHS compliant unless otherwise noted
Note: This listing is for one (1) connector. More than one connector is shown to better illustrate the product.
Other Details
See warranty details aboveProduct Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
Perfect!
Perfect for what I needed, exactly as ordered to finish my GMC truck to rear trailer camera. Good quality and no problems since I installed it.
