Product Description

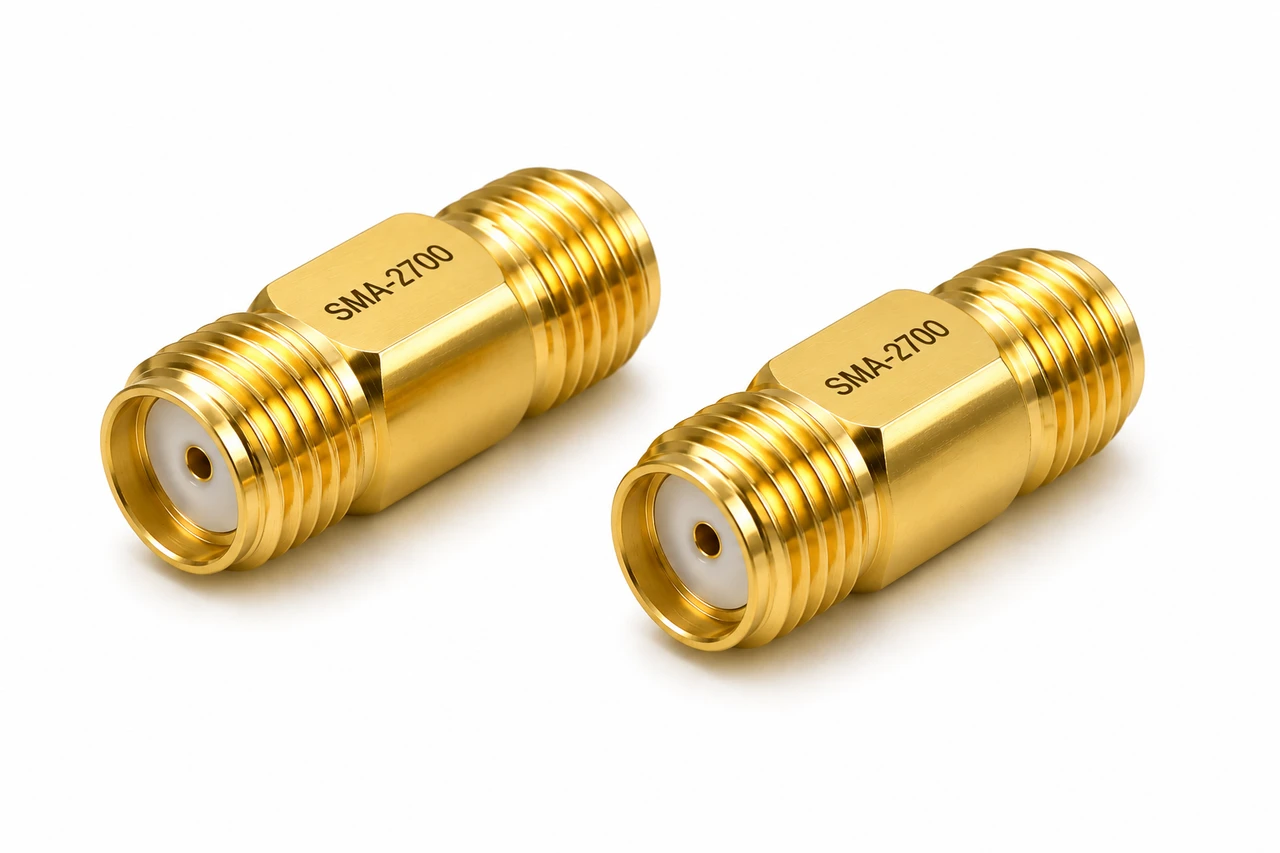

SMA Double Female Barrel Coaxial Adapter
The SMA-2700 is a compact SMA double-female coaxial adapter featuring an SMA female jack on each end. It is designed to connect two SMA male cables, antennas, or RF devices together, providing a secure threaded connection for a wide range of radio-frequency applications. This barrel-style (bullet) adapter is an excellent solution for extending coaxial cable runs, connecting RF components, changing connection configurations, and reducing wear on equipment ports. Its barrel design makes it useful when connecting two male-ended coaxial cables or when a female-to-female connection is needed between RF components.
Extend Cable Runs: Connect two SMA male coaxial cables together to create a longer cable assembly. Connect RF Components: Join antennas, cables, radios, SDR equipment, and other SMA-equipped devices. Protect Equipment Ports: Use the adapter as an intermediate connection to help reduce repeated mating and wear on an equipment's built-in connector. Reliable RF Connection: The 50-ohm SMA interface is widely used for RF and microwave applications requiring a compact, threaded coaxial connection.
Key Features
- Part Number: SMA-2700
- Impedance: 50 Ohms
- Frequency Range: DC–18 GHz
- Body Material: Gold plated brass alloy
- Center Contact: Gold plated beryllium copper alloy
- Thread: Standard 1/4"-36 UNS SMA thread
Common Applications
The SMA-2700 can be used in a variety of RF and wireless applications, including:
- Wi-Fi antennas and wireless networking
- Software-defined radio (SDR) equipment
- Handheld ham radios
- FPV drones and video transmission systems
- RF test and measurement equipment
- Antenna and coaxial cable assemblies
- Wireless communication equipment
- RF prototyping and laboratory setups
Note: The actual component may differ slightly in appearance.
