Product Description

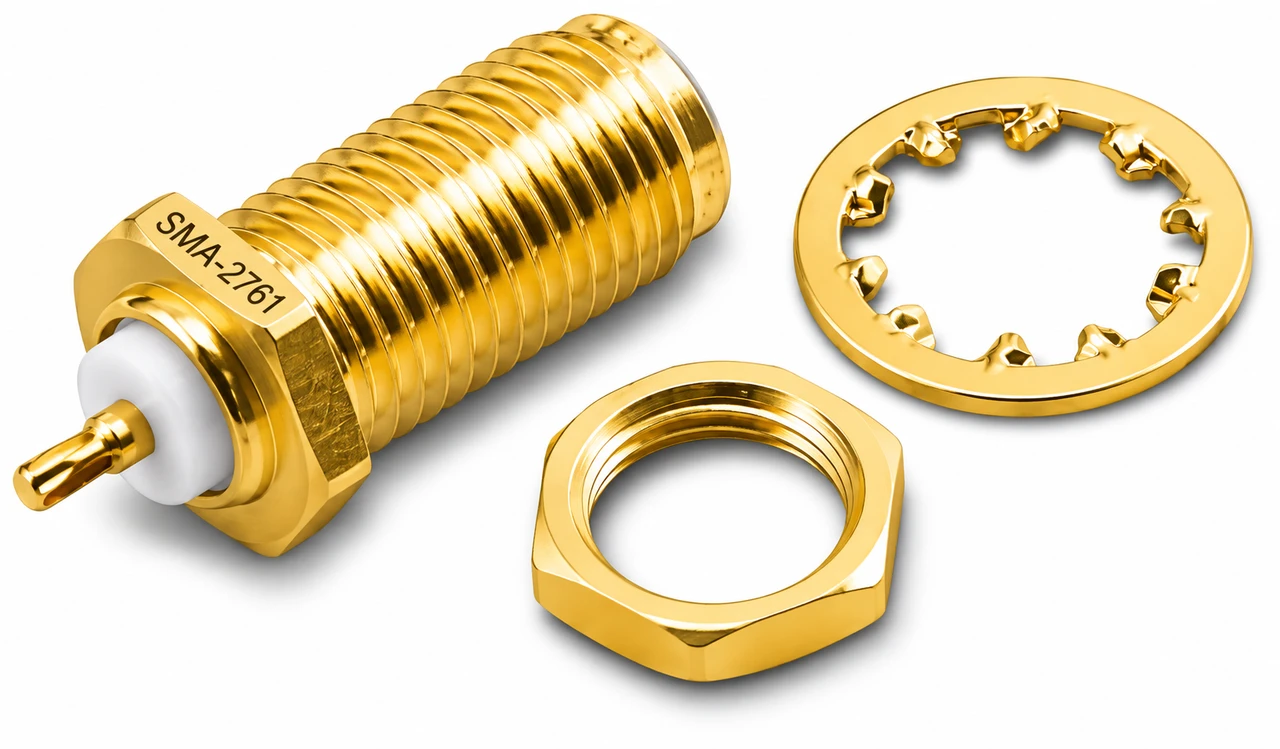

SMA Double Female Barrel Coaxial Adapter
The SMA-2761 is a SMA female bulkhead panel or chassis style coaxial adapter featuring an SMA female jack. It is designed to connect SMA male cables, antennas, or RF devices together, providing a secure threaded connection for a wide range of radio-frequency applications. This barrel-style (bullet) adapter is an excellent solution for extending coaxial cable runs, connecting RF components, changing connection configurations, and reducing wear on equipment ports. Its barrel design makes it useful when connecting two male-ended coaxial cables or when a female-to-female connection is needed between RF components.
Extend Cable Runs: Connect SMA male coaxial cables. Connect RF Components: Antennas, cables, radios, SDR equipment, and other SMA-equipped devices. Protect Equipment Ports: Use the adapter as an intermediate connection to help reduce repeated mating and wear on an equipment's built-in connector. Reliable RF Connection: The 50-ohm SMA interface is widely used for RF and microwave applications requiring a compact, threaded coaxial connection.
Key Features
- Impedance: 50 Ohms
- Frequency Range: DC–18 GHz
- Body Material: Gold plated brass alloy
- Center Contact: Gold plated beryllium copper alloy
- Thread: Standard 1/4"-36 UNS SMA thread
- Orientation: Bulkhead panel mount
- Nut Location: Front Side
Common Applications
- Wi-Fi antennas and wireless networking
- Software-defined radio (SDR) equipment
- Handheld ham radios
- FPV drones and video transmission systems
- RF test and measurement equipment
- Antenna and coaxial cable assemblies
- Wireless communication equipment
- RF prototyping and laboratory setups
Note: The actual component may differ slightly in appearance.
