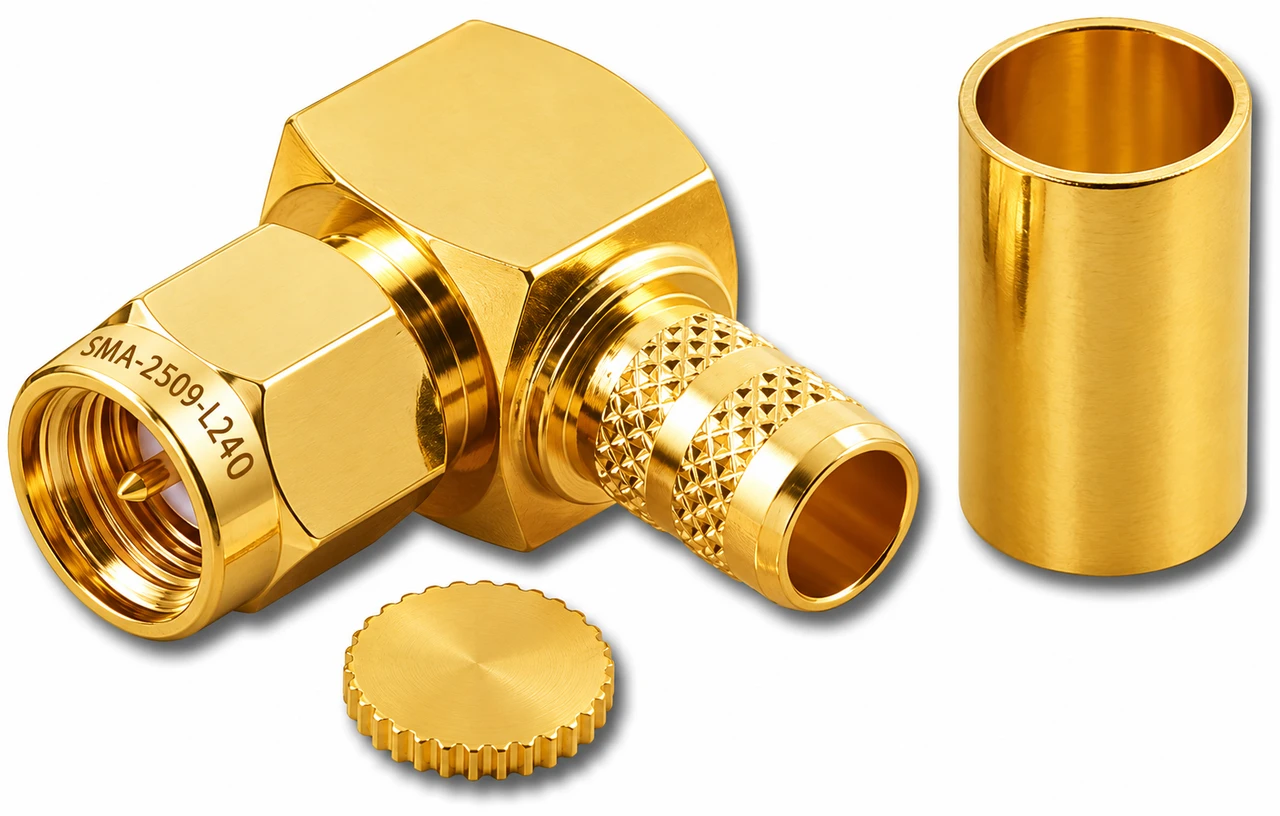

SMA Male Plug Crimp Connector for RG-8X / LMR240 Coaxial Cable
The SMA-2509-L240 is a compact right angle SMA male plug coaxial cable connector designed for terminating RG-8X and LMR240 50-ohm coaxial cables. Its threaded SMA interface provides a secure connection for RF applications, while the crimp-style rear ferrule provides a practical method for securing the cable shield and jacket.
Features
- SMA Right Angle Male Plug with threaded coupling interface
- Designed for RG-8X and LMR240 coaxial cable
- 50-ohm impedance
- Crimp-style outer ferrule for cable shield termination
- Center contact designed for solder or crimp attachment, depending on assembly method
- Compact design for RF cable applications
- Suitable for antennas, wireless communications, RF equipment, instrumentation, and test applications
- Precision-machined construction for dependable RF connections
General Specifications
- Part Number: SMA-2509-L240
- Connector Type: SMA Male Plug / Right Angle Elbow
- Cable Compatibility: RG-8X and LMR240
- Impedance: 50 Ohms
- Frequency Range: DC to approximately 18 GHz, depending on cable, connector grade, and installation
- Body Material: Brass or equivalent RF-grade metal
- Plating: Gold or nickel plated, depending on configuration
- Insulator: PTFE
- Cable Attachment: Crimp outer ferrule; center pin solder or crimp
Applications
The RG-8X and LMR240 is well suited for RF cable assemblies, wireless systems, antenna connections, GPS and communications equipment, laboratory instrumentation, and other high-frequency coaxial applications where a compact SMA connection is required.
