Product Description

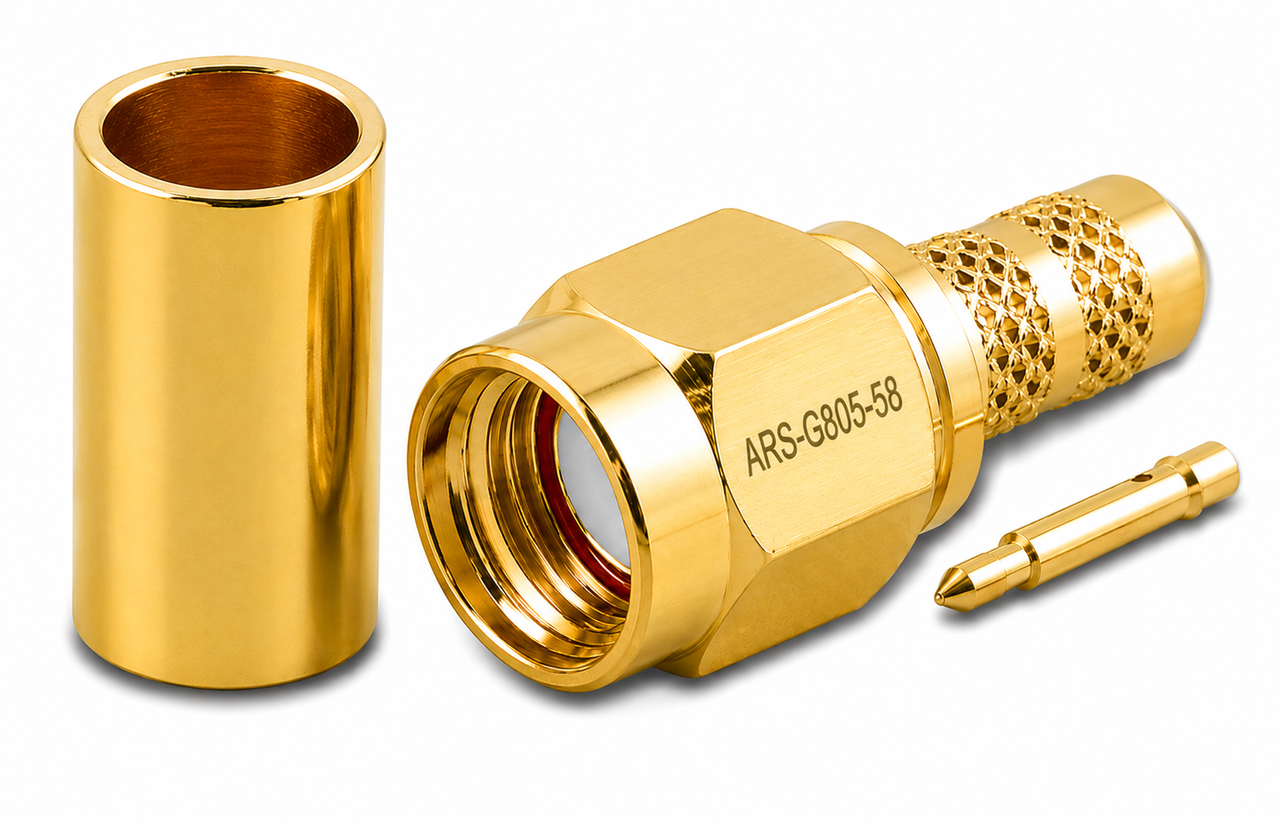

SMA Male Coaxial Connector for RG-58 & LMR195
The ARS-G805-58 SMA Male Coaxial Connector is a precision, threaded RF connector designed for reliable 50-ohm coaxial cable connections in wireless communications, antennas, GPS, radio equipment, and RF test applications. Its compact SMA design provides secure threaded coupling and excellent high-frequency performance.
The SMA male connector uses a threaded coupling system for a secure, vibration-resistant connection. The 50-ohm configuration makes it suitable for a wide range of RF applications through the microwave frequency range.
Belden's direct equivalent series for RG-58 and LMR-195 are Belden 8219 (for standard RG-58/U) and Belden 7806A / 7806R (for low-loss RF195 types sized to fit RG58 hardware)
Key Features
- Connector Type: SMA Male / SMA Plug
- Impedance: 50 Ohms
- Frequency Range: DC to 18 GHz
- Thread: 1/4"-36
- Coupling Nut: 5/16" hex
- Durability: Rated for 500+ mating cycles
- Construction: Precision-machined metal body
- Plating: Gold-plated contact surfaces
- Dielectric: PTFE insulator
- Cable Compatibility: RG-58(A), LMR-195, Belden 8219 and Belden 7806R
Common Applications
- Wi-Fi and cellular antenna systems
- Mobile and handheld radios
- GPS and navigation equipment
- RF communication equipment
- Wireless networking equipment
- Antenna assemblies
- RF test and measurement equipment
- Coaxial cable repair and custom cable assemblies
