Product Description
SO-239 to Wire Antenna Feed Point Adapter with Wing Nut
The ARS-4880 is a heavy-duty coaxial adapter designed to provide a convenient feed point for wire antennas, including End-Fed Half-Wave (EFHW) antennas and vertical dipoles, using a standard UHF Female (SO-239) coaxial connection. The adapter features a nickel-plated brass body and a machined brass 3/8"-24 threaded stud for securing the antenna wire.
Designed for mounting to a flat surface or bracket with a 1/2-inch mounting hole, the ARS-4880 includes a white nylon reducing washer for electrical isolation, a highly corrosion-resistant 316 stainless steel wing nut, a stainless steel internal star-lock washer, and a stainless steel flat washer. This hardware provides a practical, removable antenna feed-point assembly for radio communications, portable operating, and field antenna installations.

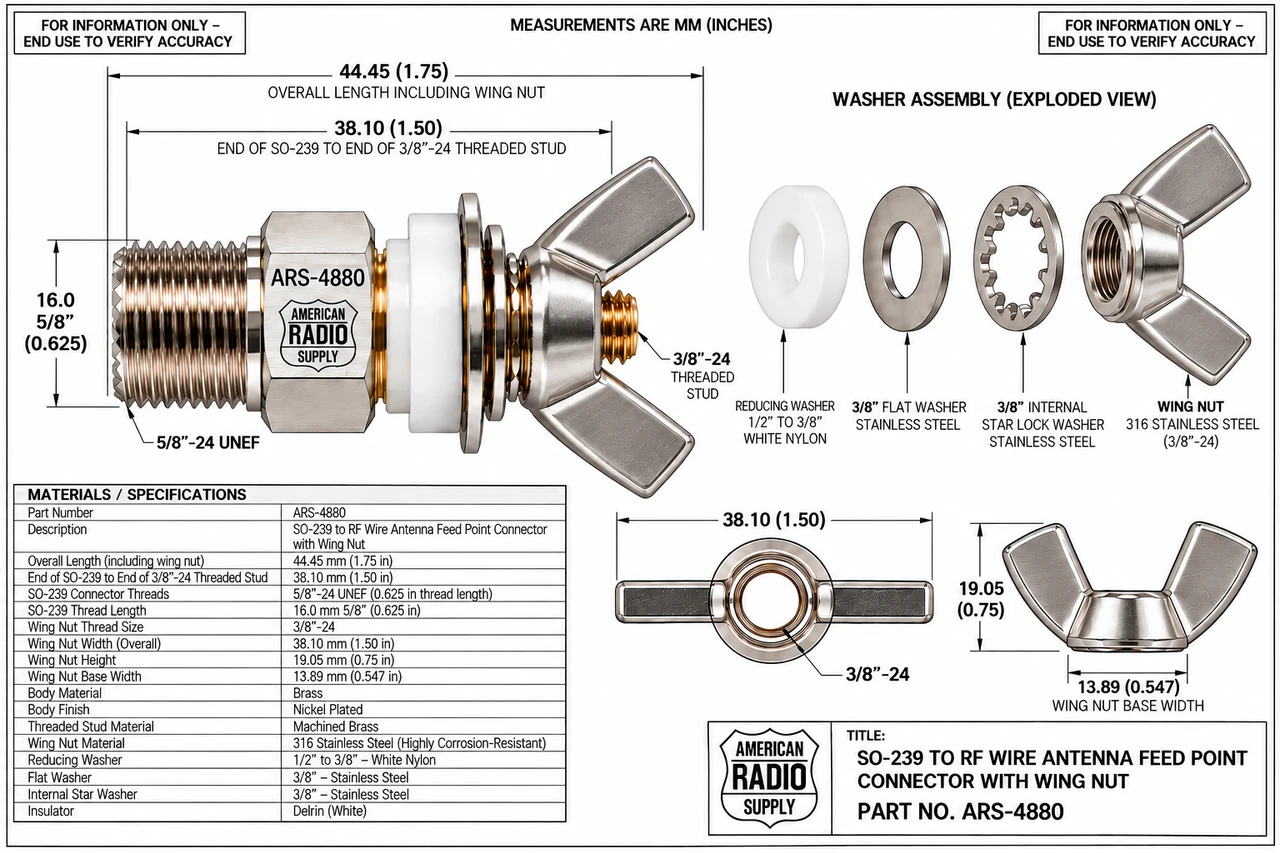

Specifications
- Part Number: ARS-4880
- Connector: SO-239 (UHF Female)
- Connector Thread: 5/8"-24 UNEF
- Antenna Connection: 3/8"-24 threaded stud
- Body: Nickel-plated brass
- Threaded Stud: Machined brass
- Wing Nut: 316 stainless steel, highly corrosion-resistant
- Mounting: Flat surface or bracket with a 1/2-inch mounting hole
- Overall Length: 1.75 inches (44.45 mm)
- Included Hardware: Wing nut, white nylon 1/2"-to-3/8" reducing washer, stainless steel internal star-lock washer, and stainless steel flat washer
Applications: EFHW wire antennas, vertical dipoles, amateur radio antenna projects, and other wire antenna feed-point installations requiring an SO-239 coaxial connection.
