Product Description

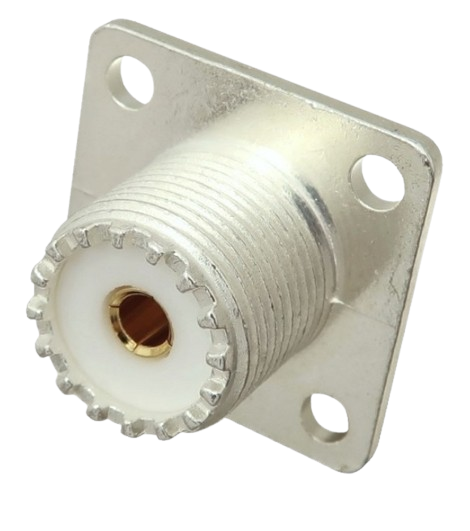

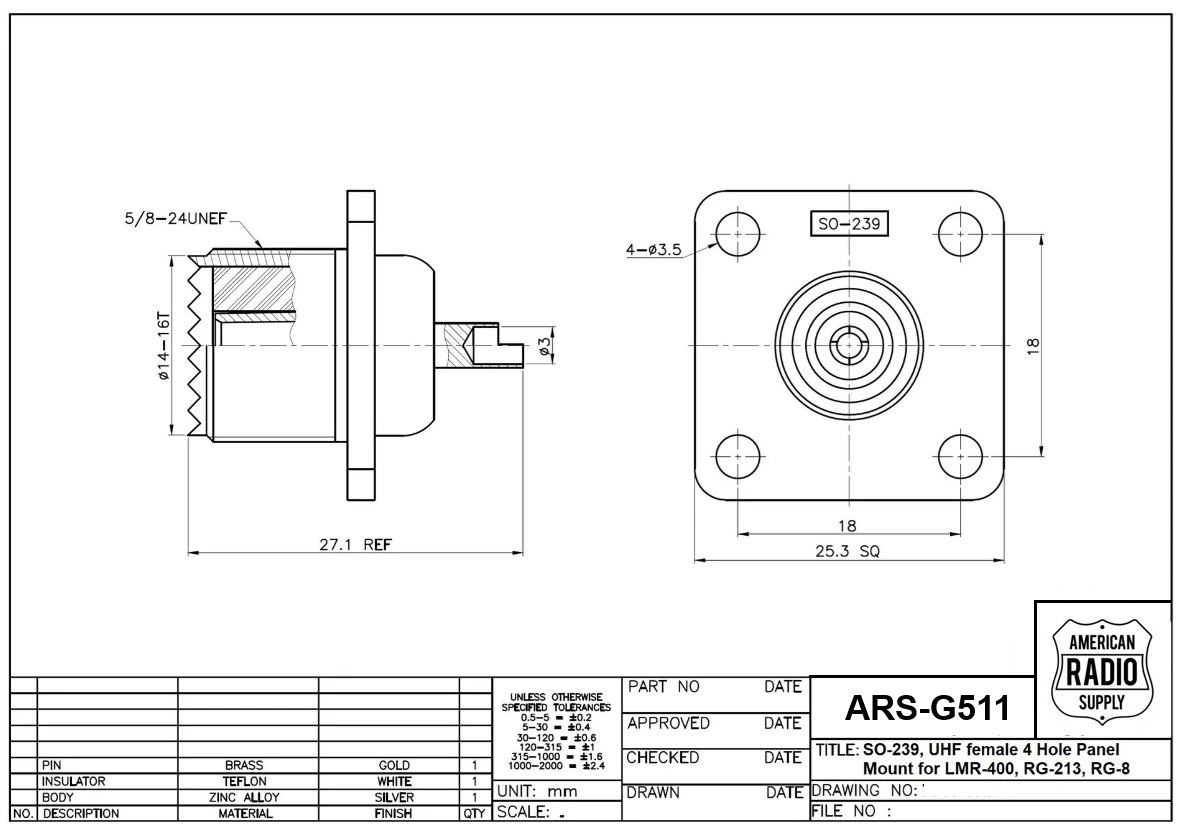

SO-239 - UHF-Female Panel Mount Coaxial Connector
Quality matters and American Radio Supply is a trusted supplier of genuine OEM components. We supply the U.S. Armed Forces and RF Communication Professionals worldwide.
- 4-Hole Mount
- Silver Plated Brass Alloy
- Teflon Dielectric / Insulator
- Center Pin: Beryllium Copper for Unproved Tensile Strength
- Similar to Amphenol #83-R1

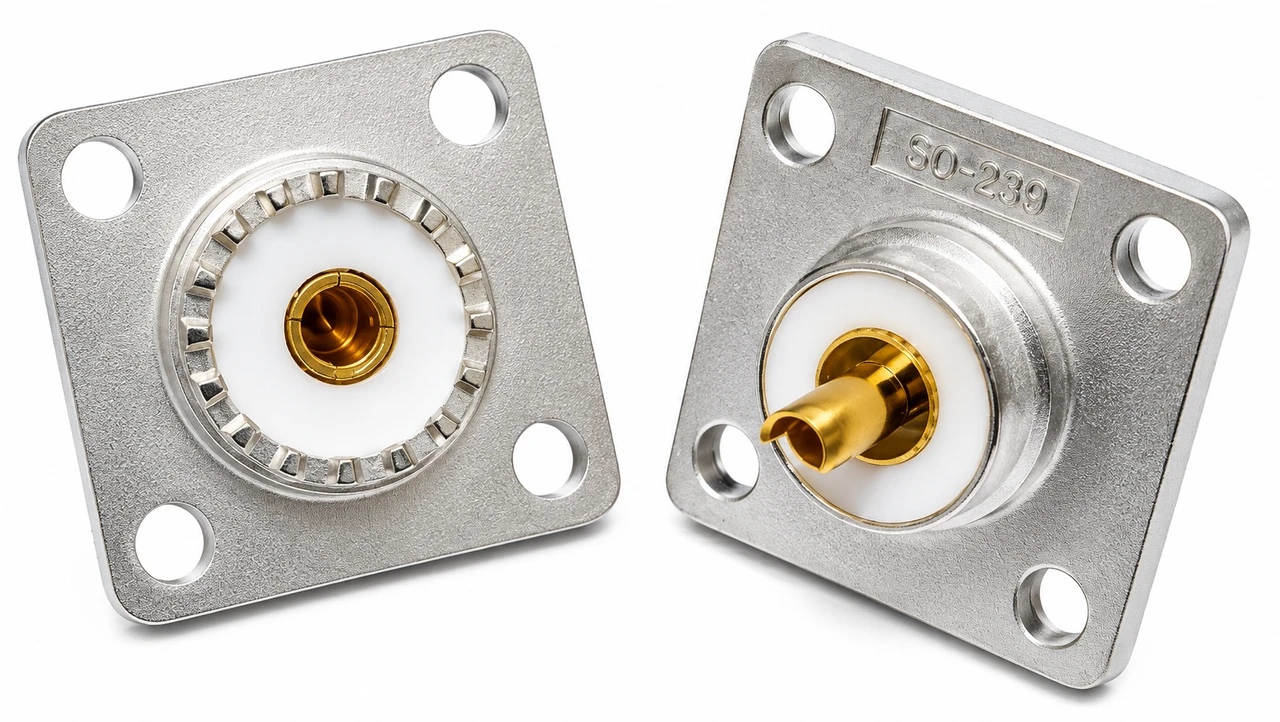

Listing is for one connector. More than one shown in product image to better illustrate the product.

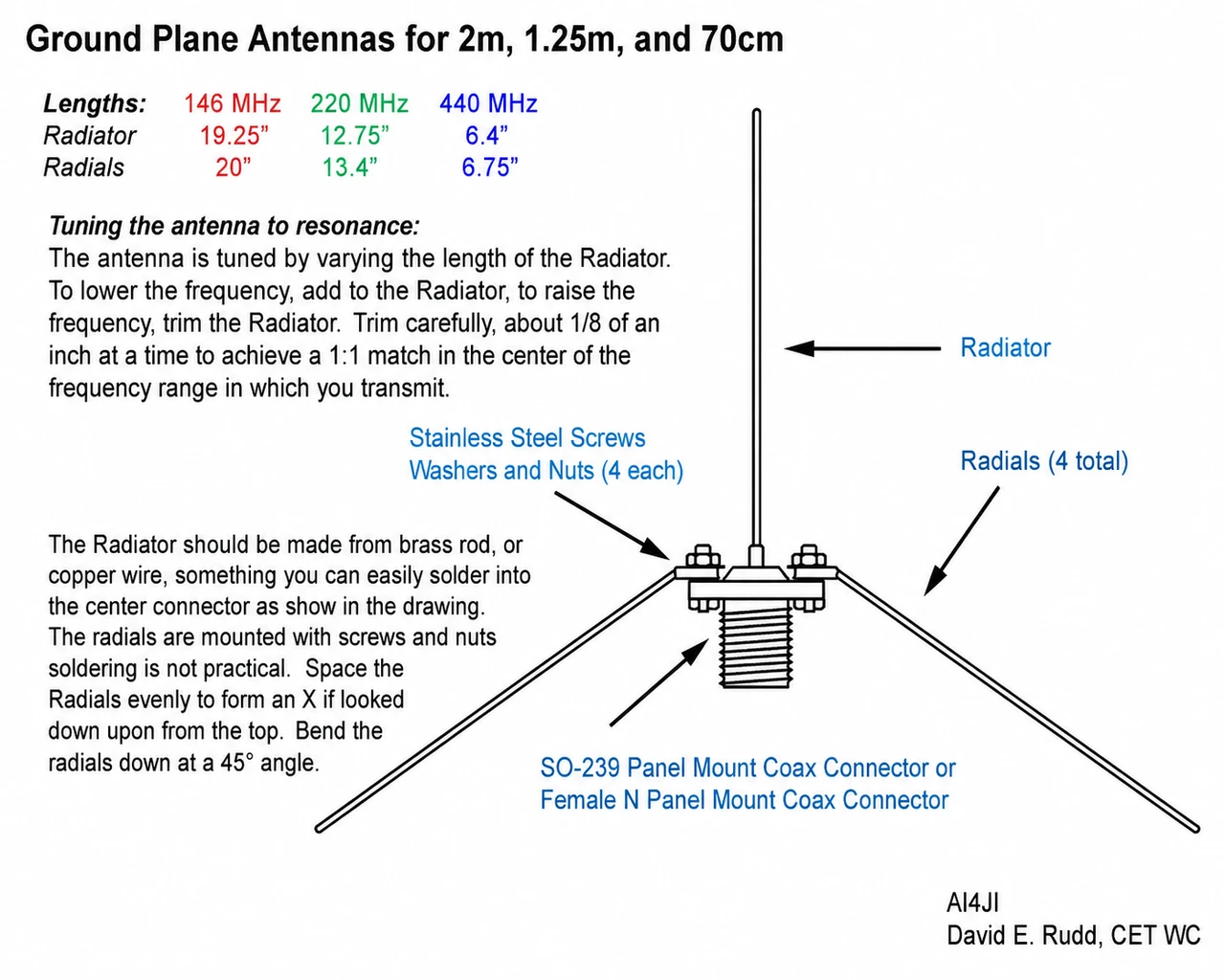

Build an inexpensive Ground Plane Antenna using this connector. For details... Click Here
Other Details
See warranty details aboveProduct Videos
Custom Field
Product Reviews
14 Reviews Hide Reviews Show Reviews
-
Five Stars
I just got started in RTL-SDR (Software Defined Radio) and I saw an article where one could make (DIY) Ground Plane Antenna with radials using the SO-239 as a base. I purchased three of these connectors and I'm making my own Antennas... tuned to specific Radio Frequency. There SO-239's are a great help, they're inexpensive and just what I was wanting!
-
Works Well
I would buy again.
-
Well Made
Well constructed and the insulator does not melt when soldering.
-
Perfect!
Excellent Quality and Fit. I ordered SO-239 panel connectors which worked perfect.
-
Good Product
Its smaller than I thought but makes up for it in quality.
-
Excellent
Excellent solder adhesion .
-
Exceeded Expectations
Used these to make a quarter wave ground plane antenna for our club to use for demo at county fair. Well made. Got several from another vendor and they were small and poorly constructed compared to the ones I got from American Radio Supply. Everyone was impressed with the quality and kept asking me where I got them. A friend got one off me for a radio he is building. Quick shipping and well packaged. Exceeded my expectations.
-
Good Quality
Good quality products and great customer service. Thanks for your vast inventory... of radio parts.
-
Perfect
Perfect... No problems up to 500W
