Product Description

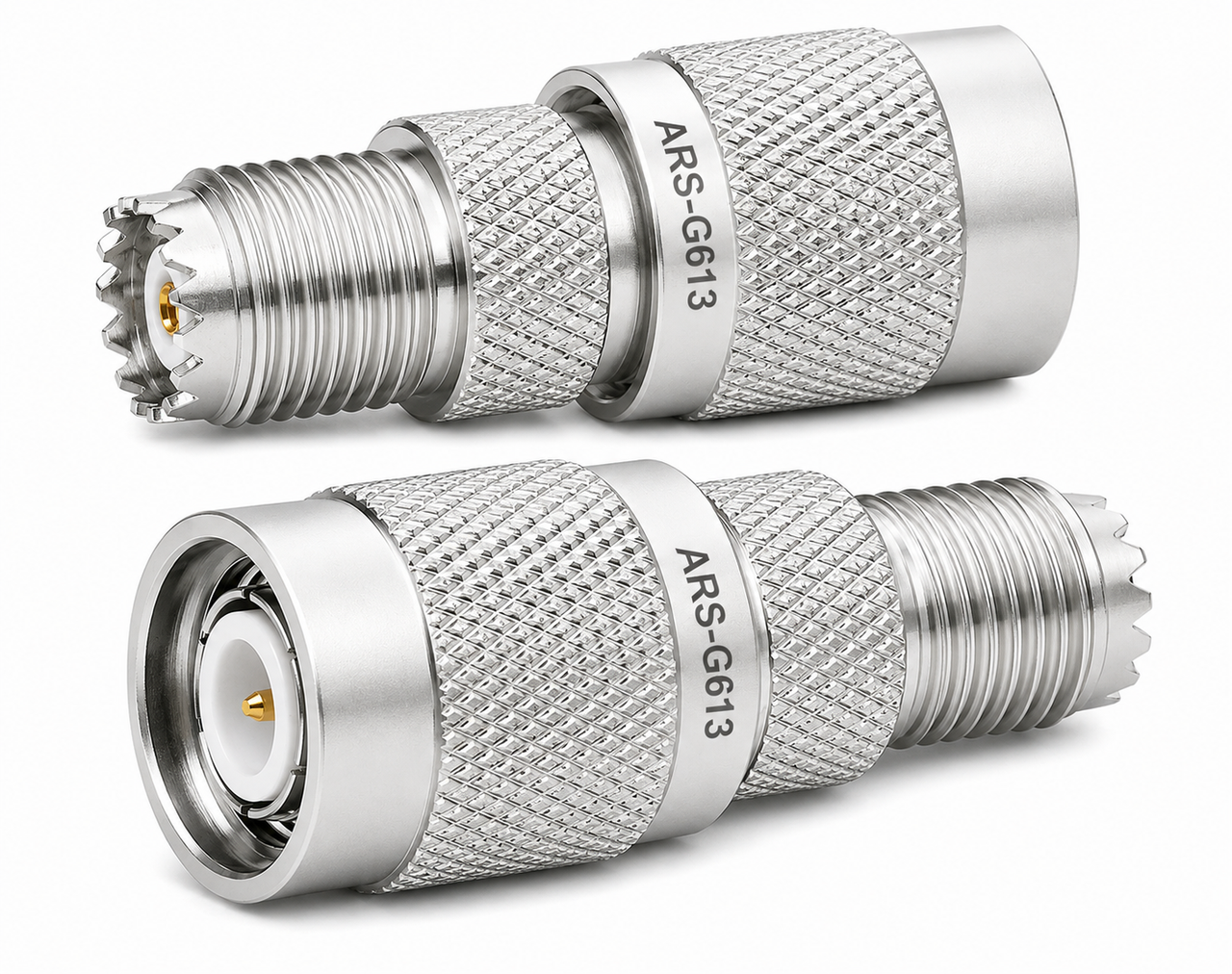

TNC Male to Mini-UHF Female Coaxial Adapter
The ARS-G613 - TNC Male to Mini-UHF Female Coaxial Adapter is a precision-engineered RF adapter designed to connect equipment and cables using different coaxial connector standards. It provides a reliable transition from a TNC male connector to a Mini-UHF female connector while maintaining a secure, low-loss RF connection.
Ideal for mobile radio, two-way radio, amateur radio, cellular, automotive communications, and RF equipment installations where a TNC connection must interface with a Mini-UHF connection.
Features & Benefits
- TNC Male to Mini-UHF Female configuration
- Between-Series RF Adapter for connecting two different connector standards
- Straight / In-Line body configuration
- 50 Ohm impedance for common RF and communications applications
- Nickel-plated brass body for durability and corrosion resistance
- Delrin or PTFE dielectric for dependable electrical insulation
- Gold- or brass-plated center contact for reliable conductivity
- Compact design suitable for space-constrained installations
- Secure threaded connection for dependable mating and retention
Specifications
Connector 1: TNC Male
Connector 2: Mini-UHF Female
Adapter Type: Between-Series
Body Style Straight / In-Line
Impedance: 50 Ohm
Body Material: Nickel Plated Brass Alloy
Dielectric: Delrin or PTFE
Center Contact: Gold Plated Beryllium Copper Alloy
Frequency Range: DC–2.5 GHz (Typical)
