Product Description

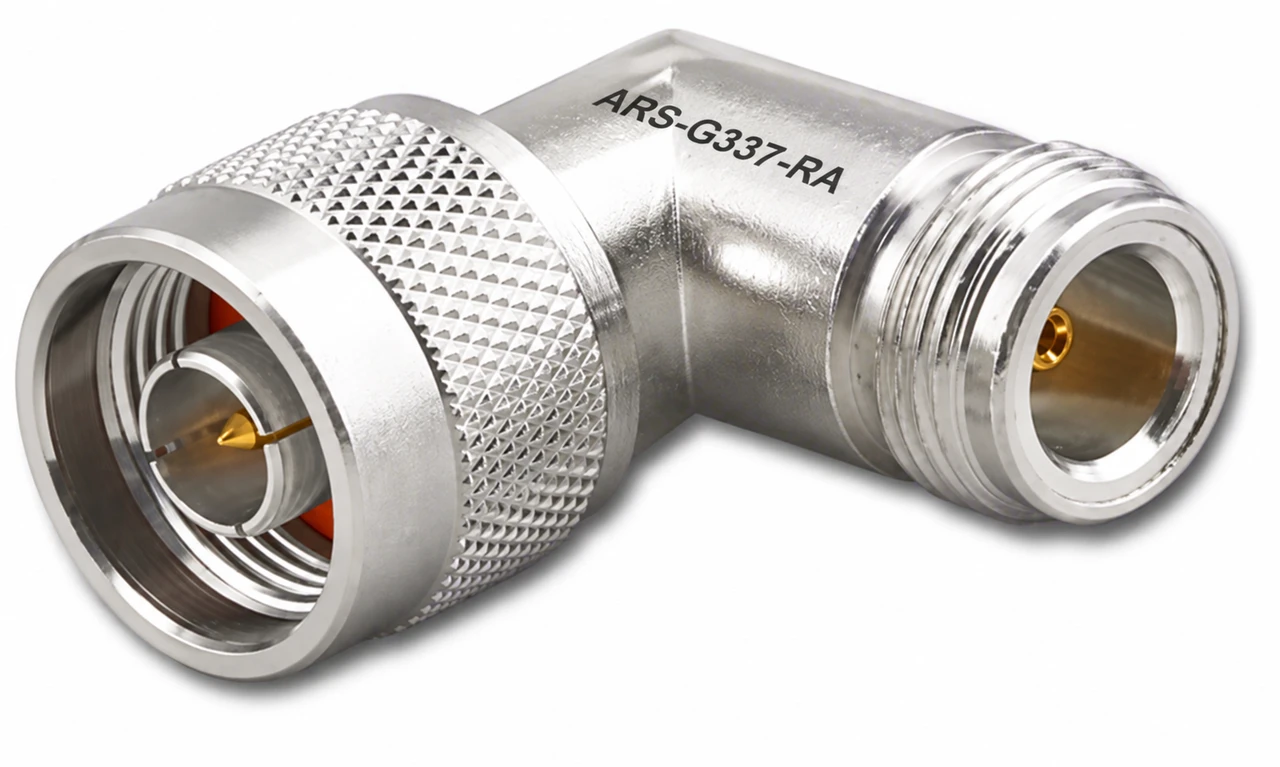

Type N Male Female Right-Angle Coaxial Adapter
The ARS-G337-RA is a 90-degree Type N Male to Type N Female (UG-27/U) right-angle coaxial adapter designed to change the direction of an RF connection while maintaining a secure, threaded interface. Its right-angle configuration is ideal for installations where space is limited or where a straight connector could place excessive bending stress on the coaxial cable.
Features & Benefits
- Type N Male to Type N Female configuration
- 90° right-angle design redirects coaxial cable routing
- 50-Ohm RF impedance for professional RF and wireless applications
- 5/8"-24 UNEF threaded coupling for secure connections
- Helps prevent excessive bending and mechanical stress on coaxial cables
- Suitable for use with larger coaxial cable assemblies such as LMR-400 and RG-213
- Nickel-plated brass construction provides durability and corrosion resistance
- Gold-plated brass center contacts for reliable electrical performance
- Delrin dielectric insulator
- Compact configuration helps simplify installations in confined spaces
Uses & Applications
Space-Constrained Installations:
Allows coaxial cables to be routed at a 90-degree angle in tight spaces, behind equipment, or near panels where a straight connector may not provide sufficient clearance.
Cable Stress Reduction:
Reduces sharp bends, pulling forces, and mechanical stress on heavier coaxial cable runs near RF ports.
RF Interface Connections:
Connects Type N male and Type N female interfaces on antennas, coaxial assemblies, base stations, RF equipment, and test equipment.
Outdoor Wireless Communications:
The threaded Type N connection is well suited for communications equipment and antenna systems, including cellular, Wi-Fi, amateur radio, and other outdoor RF installations.
Test & Measurement:
Useful for RF test equipment, signal generators, amplifiers, spectrum analyzers, and other equipment using Type N connections.
Technical Specifications
| Product Type | Right-Angle Coaxial Adapter |
| Connector Configuration | Type N Male to Type N Female |
| Connector Style | 90° Right-Angle Elbow |
| Impedance | 50 Ohms |
| Frequency Range | DC to 11 GHz* |
| Coupling Thread | 5/8"-24 UNEF |
| Body Material | Brass |
| Body Finish | Nickel Plated |
| Center Contact | Brass, Gold Plated |
| Insulator | Delrin |
| Orientation | Right Angle |
| Part Number | ARS-G337-RA |
*Actual frequency performance can vary with the specific mating connectors, cable assembly, installation, and RF system.
Product Description
The American Radio Supply ARS-G337-RA Type N Male to Type N Female Right-Angle Adapter provides a convenient 90-degree transition between two Type N interfaces without requiring the coaxial cable itself to make a sharp bend. This makes it particularly useful for antenna installations, RF equipment, wireless infrastructure, test setups, and other applications where connector clearance and cable routing are important.
The adapter features a durable nickel-plated brass body, gold-plated center contacts, and a Delrin insulator for dependable service in demanding RF applications. The threaded 5/8"-24 UNEF Type N coupling interface provides a secure mechanical connection suitable for professional coaxial systems.
