Product Description

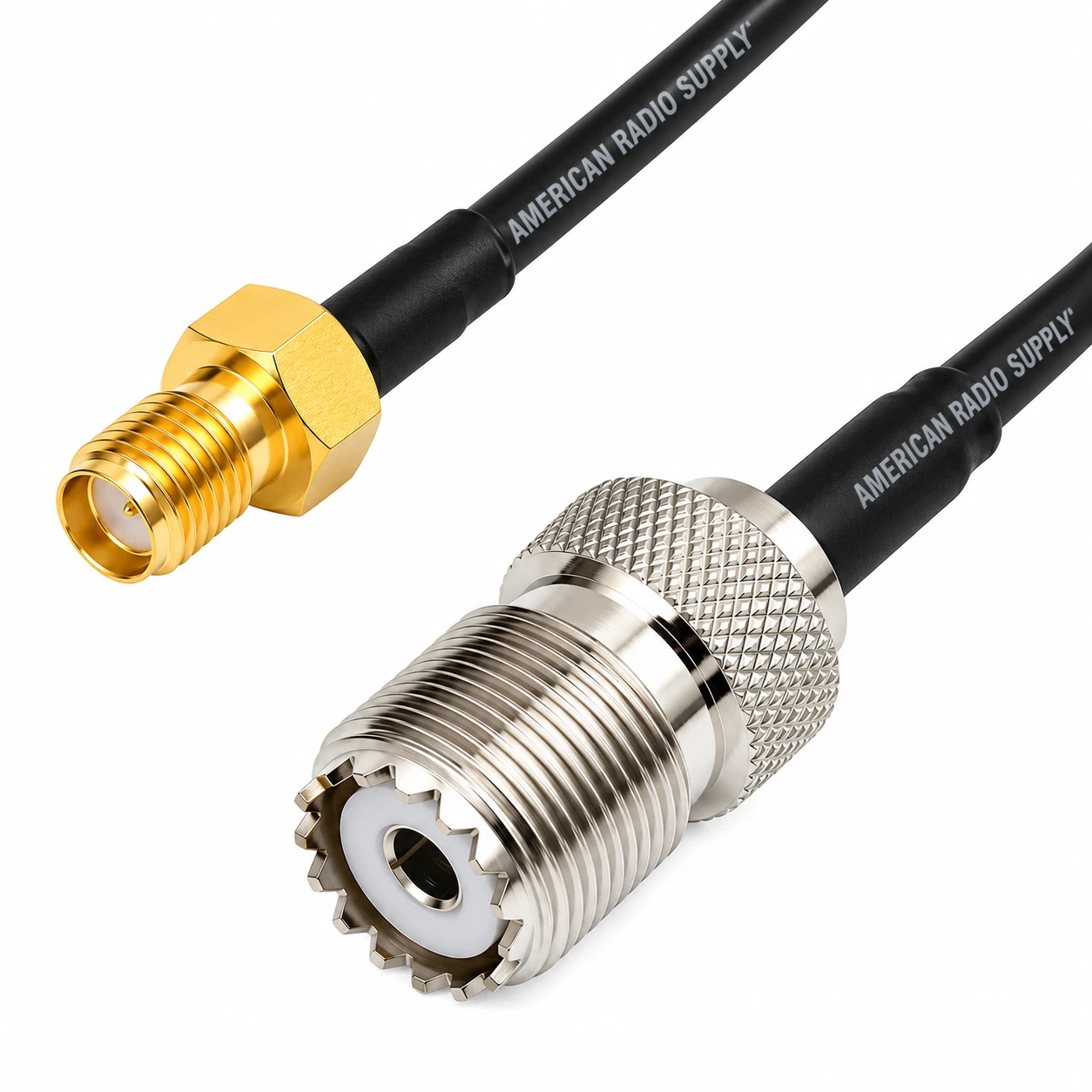

10-Inch - SMA Female to UHF Female (SO-239) Coaxial Cable
The American Radio Supply G839-CBL-10 is a compact 50-ohm coaxial cable pigtail designed to connect equipment with an SMA female interface to standard UHF female (SO-239) connections. Its flexible RG-174 coaxial cable provides a convenient transition between small RF equipment and larger coaxial cable assemblies terminated with PL-259 connectors.
The flexible cable construction also provides strain relief, helping reduce mechanical stress on the equipment's SMA connector when used with larger or heavier coaxial cables.
Key Features
- P/N: G839-CBL-10
- SMA Female to UHF Female (SO-239)
- 50-ohm RF coaxial cable assembly
- Flexible RG-174 coaxial cable
- Approximately 10-inch (25 cm) cable length
- Durable black PVC jacket
- Heat-shrink tubing at the connector transitions for added strain relief
- Compact and flexible design
- Suitable for radio, antenna, test-equipment, and RF interconnection applications
Typical Applications
Two-Way Radio Communications
Connect radios and other equipment using an SMA interface to antenna systems or coaxial cables terminated with standard PL-259 connectors.
RF Equipment & Test Applications
Useful for RF analyzers, meters, SDR equipment, transceivers, and other devices requiring an SMA-to-UHF connection.
Strain Relief
The flexible RG-174 cable creates a mechanical buffer between the equipment's SMA connector and larger, heavier coaxial cable, helping minimize connector stress.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | American Radio Supply |
| Part Number | G839-CBL-10 |
| Product Type | Coaxial Cable Pigtail |
| Connector A | SMA Female |
| Connector B | UHF Female (SO-239) |
| Cable Type | RG-174 Flexible Coaxial |
| Impedance | 50 Ohm |
| Cable Length | 10 Inches (Approx. 25 cm) |
| Cable Jacket | Black PVC |
| Strain Relief | Heat-Shrink Tubing |
| Application | RF / Wireless / Amateur Radio |
Product Description
The ARS G839-CBL-10 SMA Female to UHF Female coaxial cable pigtail is a practical solution for adapting SMA-equipped RF equipment to conventional UHF coaxial connections. The short, flexible RG-174 cable helps make installations easier while reducing the mechanical strain that can occur when a rigid or heavy coaxial cable is connected directly to a small SMA connector.
American Radio Supply G839-CBL-10 is well suited for amateur radio stations, two-way radio installations, antenna connections, RF test benches, SDR equipment, and general-purpose 50-ohm RF applications.
American Radio Supply — Quality RF Connectivity Solutions.
