Product Description

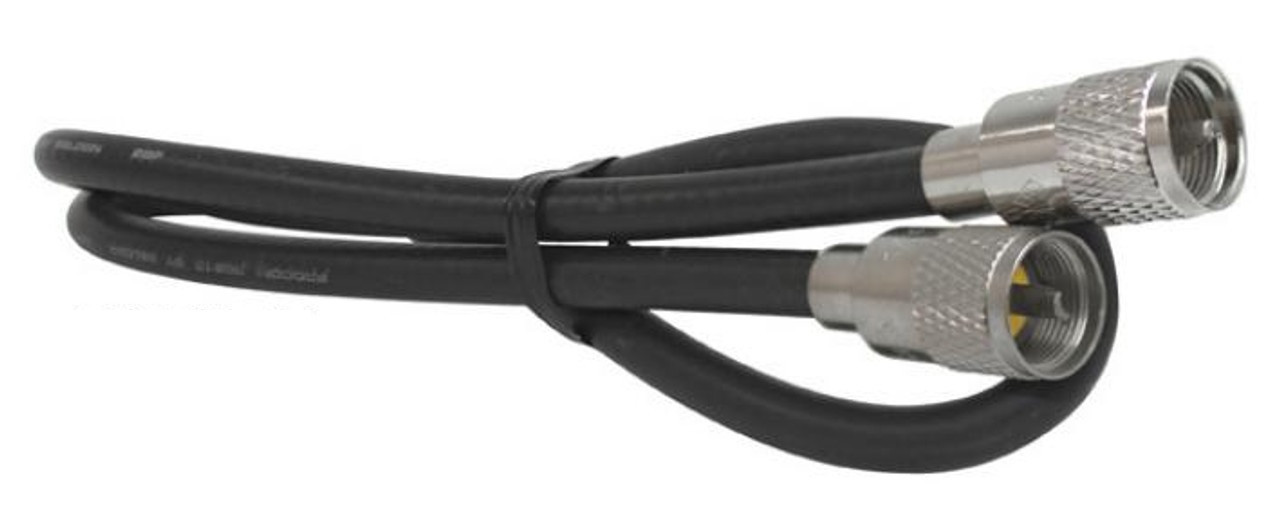

12-Foot - RG8X - PL259 Coaxial Cable Assembly
Our Mini-8 (RG8X) high-quality low-loss coaxial cable assemblies have a UHF-Male (PL-259) connector installed on each end. These cables are factory tested to ensure excellent quality prior to shipping. The cable is flexible, light weight, and slightly larger than than RG58 coaxial cable. Non-Contaminating, UV Resistant, Direct Burial, Black Jacket, and Braided Shield. Polyethylene Dielectric. VP: 78%. Outside Diameter: .242". Other Lengths Available - Click Here
- RG-8X
- Impedance: 50-Ohms
- Overall Nominal Diameter: 0.242 Inch
- Connector: UHF-Male (PL-259) Both Ends
- Shield: Bare Copper Braid 95% Aluminum Foil
- Outer Jacket: PVC Type II Non-Contaminating (Black or Gray)
- Center Conductor: Bare Copper 19 Strands 29 Gauge (0.011") 19 Std. (0.287mm)
- Dielectric: Gas Injected Foam 0.155" (3.94mm)
- Velocity: 78%
- Made in USA
Other Details
See warranty details aboveProduct Videos
Custom Field
Product Reviews
4 Reviews Hide Reviews Show Reviews
-
Top Quality
I like the quality of your coax and connector supplies. The construction of your pre assembled coax cables are the best. I have ordered from other sources and been disappointed. Many use cheap clamp on connectors. Yours are solid quality and long lasting.
-
Excellent Buy!
Excellent buy! For the price, this is a good-quality cable. I am very satisfied with this, and I believe I will get much use out of it.
-
Very Nice
Very nice cable.
-
Way Better
Way Better!!! This cable reduced the static on my radio drastically compared to the Kwik trip cable I was using. Very happy.
