Product Description

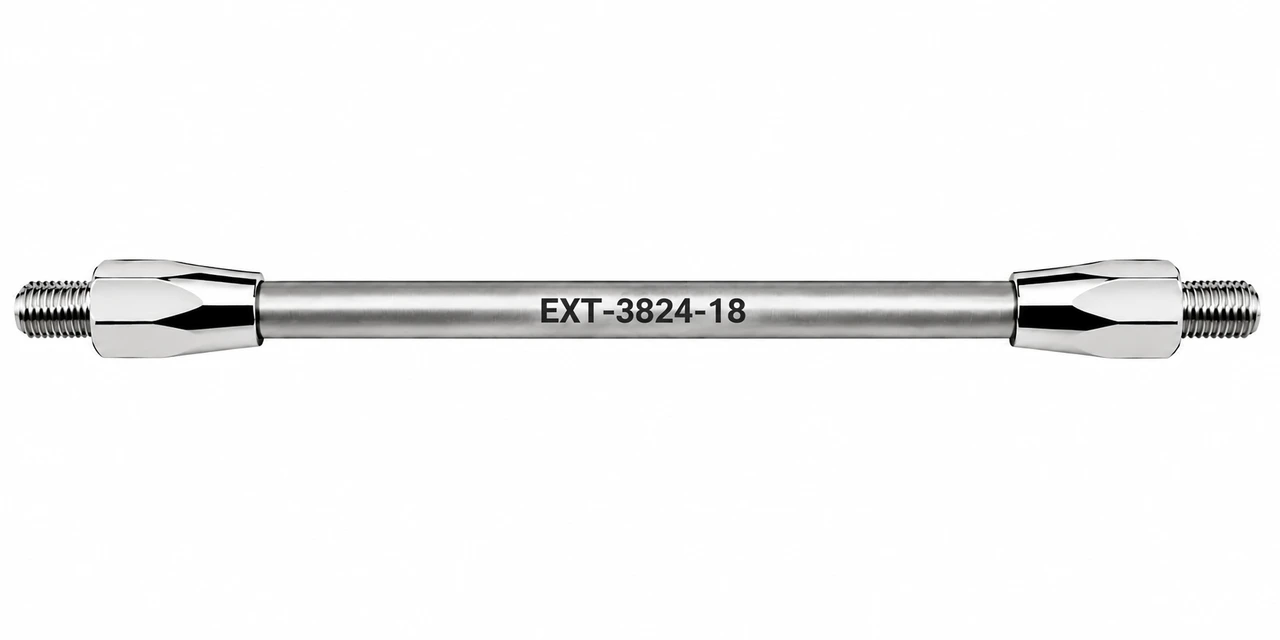

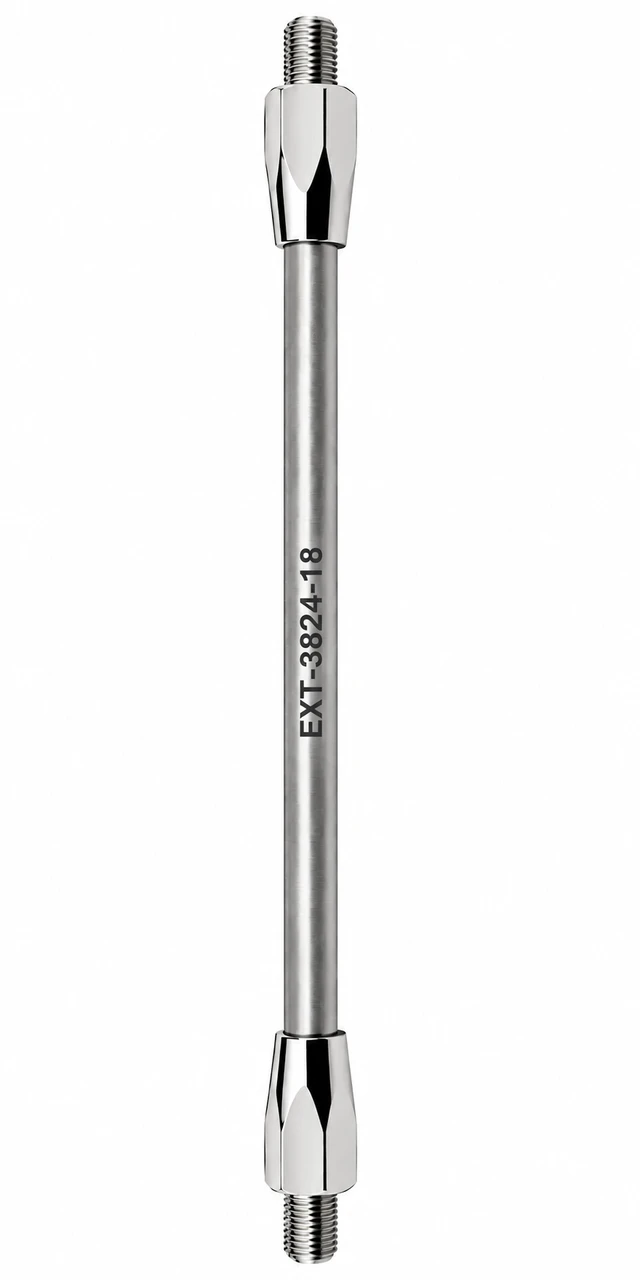

EXT-3824-18 — 18" Stainless Steel Antenna Mast Extension
The EXT-3824-18 is an 18-inch stainless steel antenna mast extension. Positioning the loading coil higher on the antenna, rather than near the feedpoint or base, can improve radiation efficiency by increasing radiation resistance, reducing the relative impact of coil and ground-system losses, and improving current distribution along the radiating element.
Designed to raise the height of bottom-loaded antennas, it is ideal for installations where the loading coil needs to be positioned higher for improved clearance or mounting flexibility. Adding height can help improve antenna clearance and positioning on trucks, cars, RVs, campers, and other vehicles.
Key Features
- Loading Coil - Not Included
- 18-inch extension for added antenna height
- Stainless steel construction for durability and corrosion resistance
- 3/8"-24 threaded connections for compatibility with standard mobile antenna systems
- Helps position antennas higher for improved clearance
- Ideal for two-way, amateur radio, CB and other mobile communication applications
- Polished stainless steel fittings provide a clean, professional appearance
- Suitable for vehicle, truck, RV, camper, and other mobile antenna installations

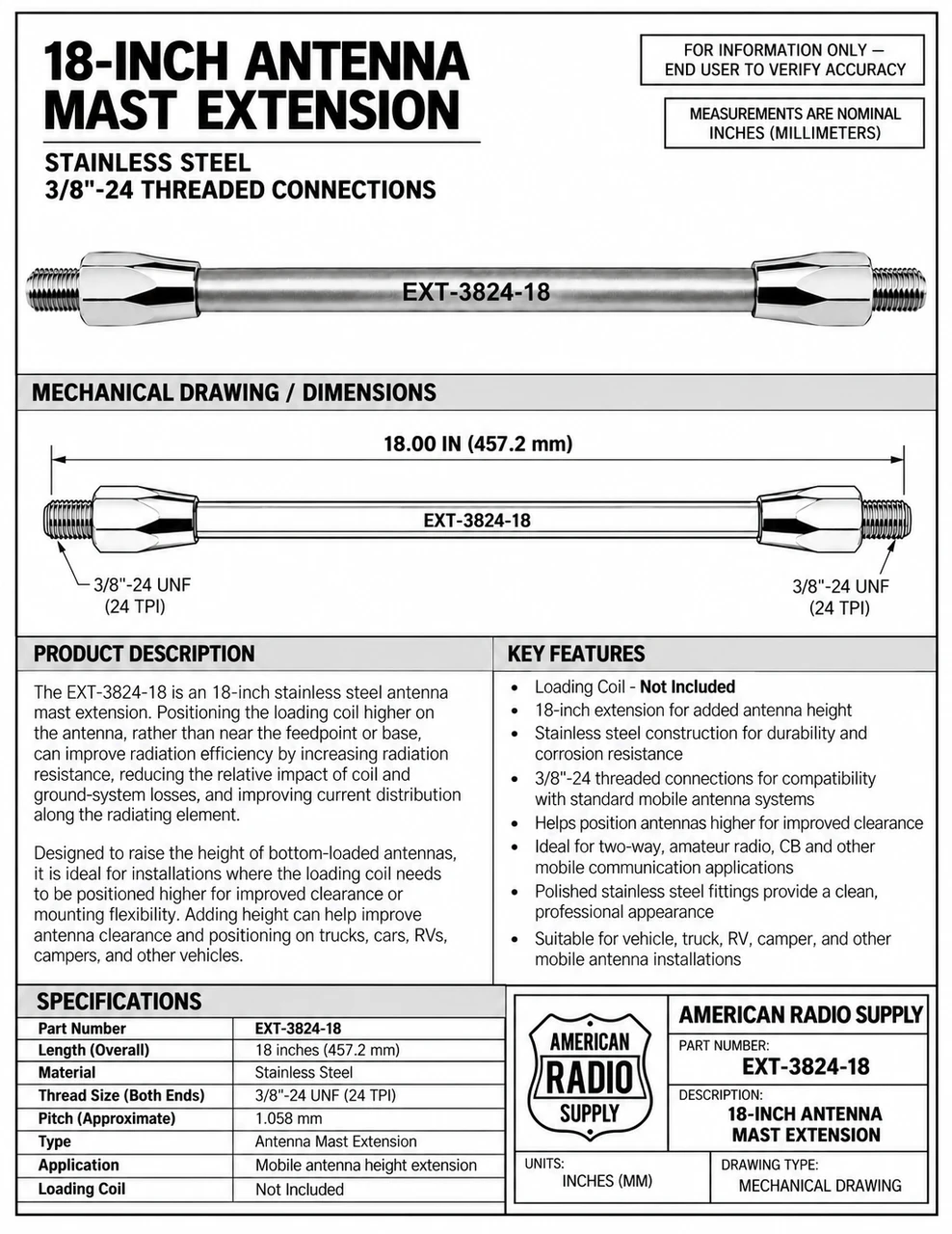

Specifications
- Part Number: EXT-3824-18
- Length: 18 inches
- Material: Stainless Steel
- Thread Size: 3/8"-24
- Application: Mobile antenna height extension
- Type: Antenna Mast Extension
- Loading Coil - Not Included
Note: Actual coil placement should be determined through antenna design calculations and adjusted through impedance or SWR measurements.
