Product Description

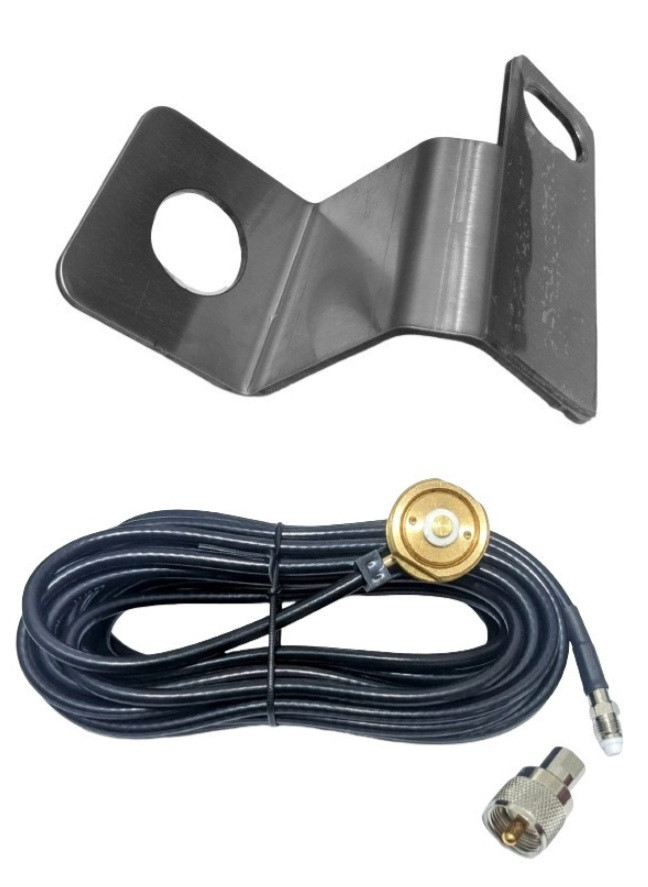

Ford Antenna Mounting Bracket & Cable
'No Hole' Antenna Mounting Bracket allow you to mount your antenna without damaging your truck SUV. These brackets use your vehicle's existing fender bolts to secure the mount. Protecting your vehicle's paint.
- Fits 2021 - 2027 - Ford F-150 ( DRIVER'S SIDE )
- Bracket: Stainless Steel Construction
- Antenna Mounting Hole: 3/4-Inch (16 mm) Antenna Mounting Hole
- Coaxial Cable & Length: 17-Feet / RG-58A
NMO Cable & Bracket Installation — Quick Instructions
1. Attach the NMO Cable to the Bracket
- Unscrew and remove the NMO connector’s outer ring
- Insert the cable-mounted NMO connector through the underside of the bracket
- Reinstall and tighten the outer ring, keeping the connector centered in the bracket
2. Install the Mounting Bracket
- Set the parking brake and open the hood
- Locate and remove the 10 mm bolt near the rear of the front fender
- Position the bracket over the bolt hole and reinstall the bolt
- Tighten securely
Important: To help prevent galvanic corrosion between the aluminum body and stainless-steel bracket, place the stainless-steel star washer only between the bolt head and bracket. Do not allow the washer to penetrate or contact the aluminum body surface. Refer to Ford Service Bulletin: Q-222R1
[STAFF NOTE] Due to weight considerations, installing the ATAS-120 or similar HF antennas is not recommended. These antennas are generally heavier than most VHF/UHF dual-band antennas. Some customers have reported slight wobble when using heavier HF antennas with the FO4 bracket. The bracket’s right-angle design, combined with the additional weight, may result in reduced stability.
Other Details
See warranty details aboveProduct Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
Recommended
Easy to install and a solid product. I had more trouble running coax and power into the truck. Heavy enough that there is no flex in the mount and the antenna stays still. Would recommend it to anyone with a 2021 or later Ford F-150.
